Replacement Procedures

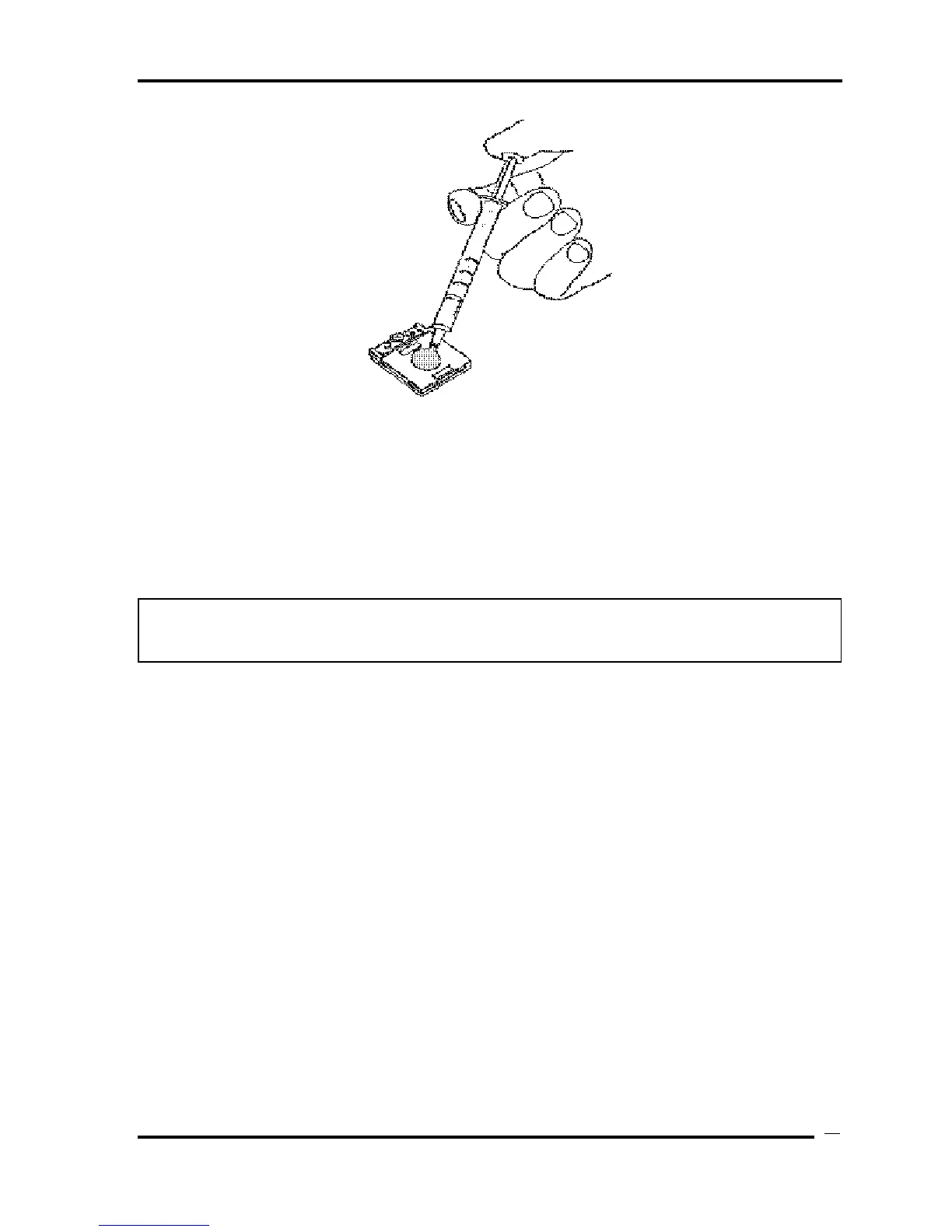

Figure 4-19-3 Apply silicon grease
6. Install the CPU heat sink and heat sink holder and secure them with the following
screws along 1 to 4.
M22 SPRING screw x4
7. Connect the Heat sink cable to the connector on the system board
NOTE: When securing the heat sink holder, be sure to secure the screws in the order of
the number marked on the holder.
Qosmio X500 Maintenance Manual (960-Q08)
