Toshiba Qosmio X500 Maintenance Manual

Replacement Procedures
Figure 4-5-2 Disassemble the side bracket
Installing an optical disk drive
The following describes the procedure for installing an optical disk drive.

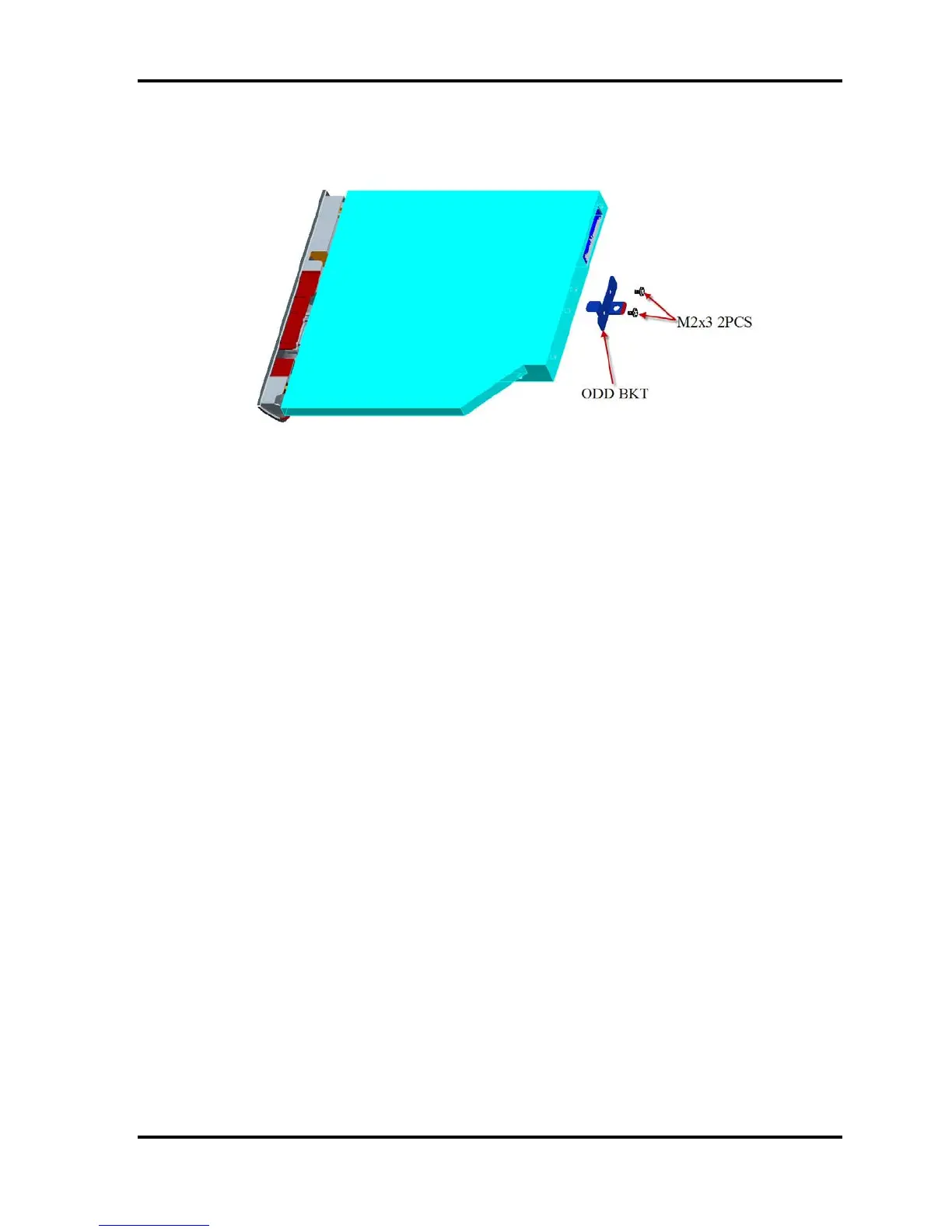

1. Attach the ODD bracket to an optical disk drive and secure it with the following
screws.
 M2.03.0 Flat BIND screw x2
2. Insert an optical disk drive assembly into the slot and connect it to the connector
CN26 on the system board.
3. Secure the ODD drive with the following screw.
 M2.5X5.0 Flat BIND screw x1
Qosmio X500 Maintenance Manual (960-Q08) 4-17

Toshiba Qosmio X500 Specifications

General

Graphics	NVIDIA GeForce GTS 360M
Display Size	18.4 inches
Resolution	1920 x 1080 pixels
Storage	500GB HDD
Operating System	Windows 7 Home Premium
LAN	Gigabit Ethernet
USB Ports	4 x USB 2.0
HDMI	Yes
Processor	Intel Core i7
Optical Drive	Blu-ray Disc drive
Wireless	Wi-Fi 802.11n
Battery	Lithium-ion battery (various capacities)
Weight	10.1 lbs
RAM	Up to 8GB DDR3
