Replacement Procedures

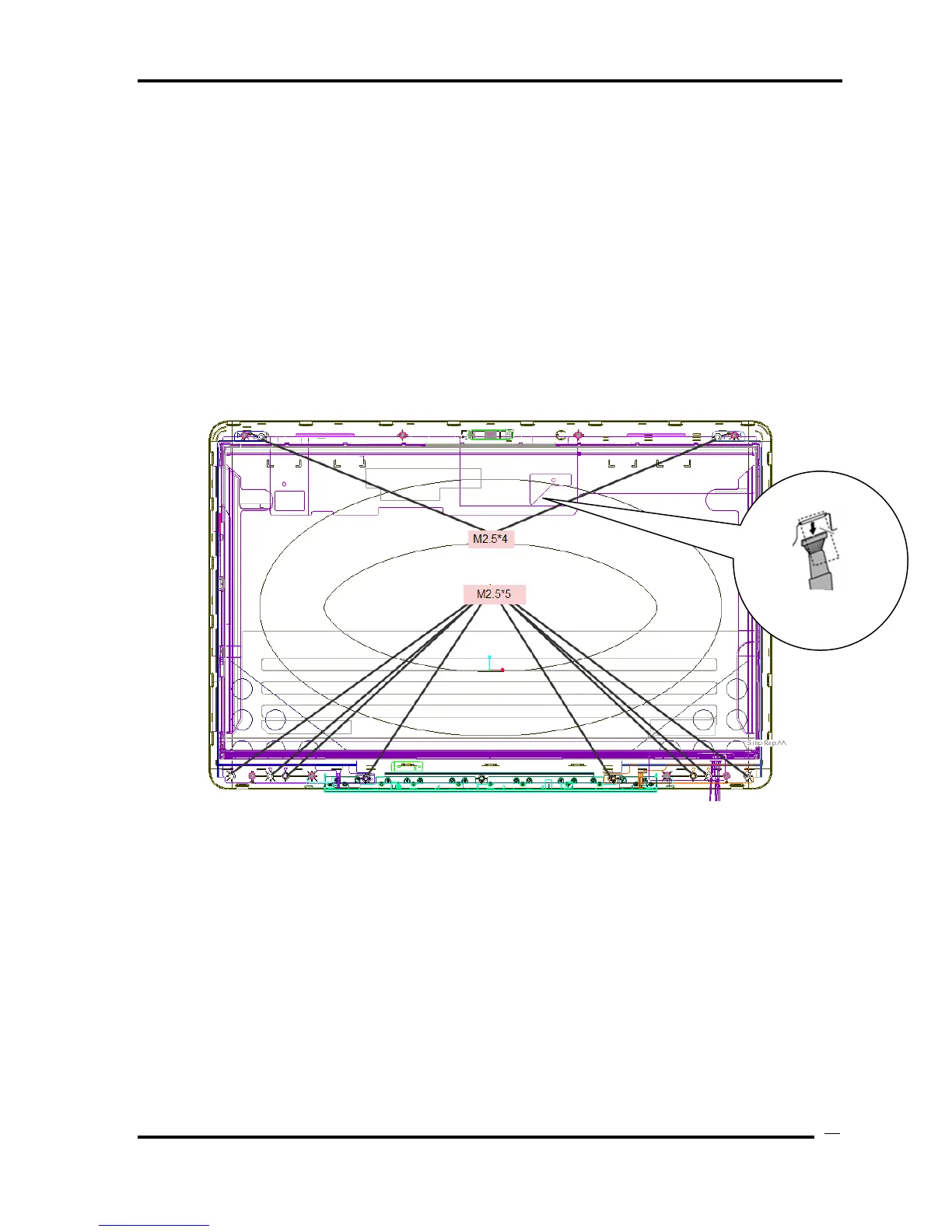

7. Remove the following screws securing the LCD unit.
M2.5x4.0 screw x2
M2.5x5.0 screw x8
8. With the bottom edge of the LCD unit on the display cover, lift only the top edge of
the LCD unit. After peeling off the CONDUTIVE tape, disconnect the LCD harness
from the connector on the back of the LCD.
9. Remove the LCD unit.
LCD HARNESS
Figure 4-20-3 Remove the LCD unit
Qosmio X500 Maintenance Manual (960-Q08)
59
