4.23 CPU/CPU fin/DC fan 4 Replacement Procedures

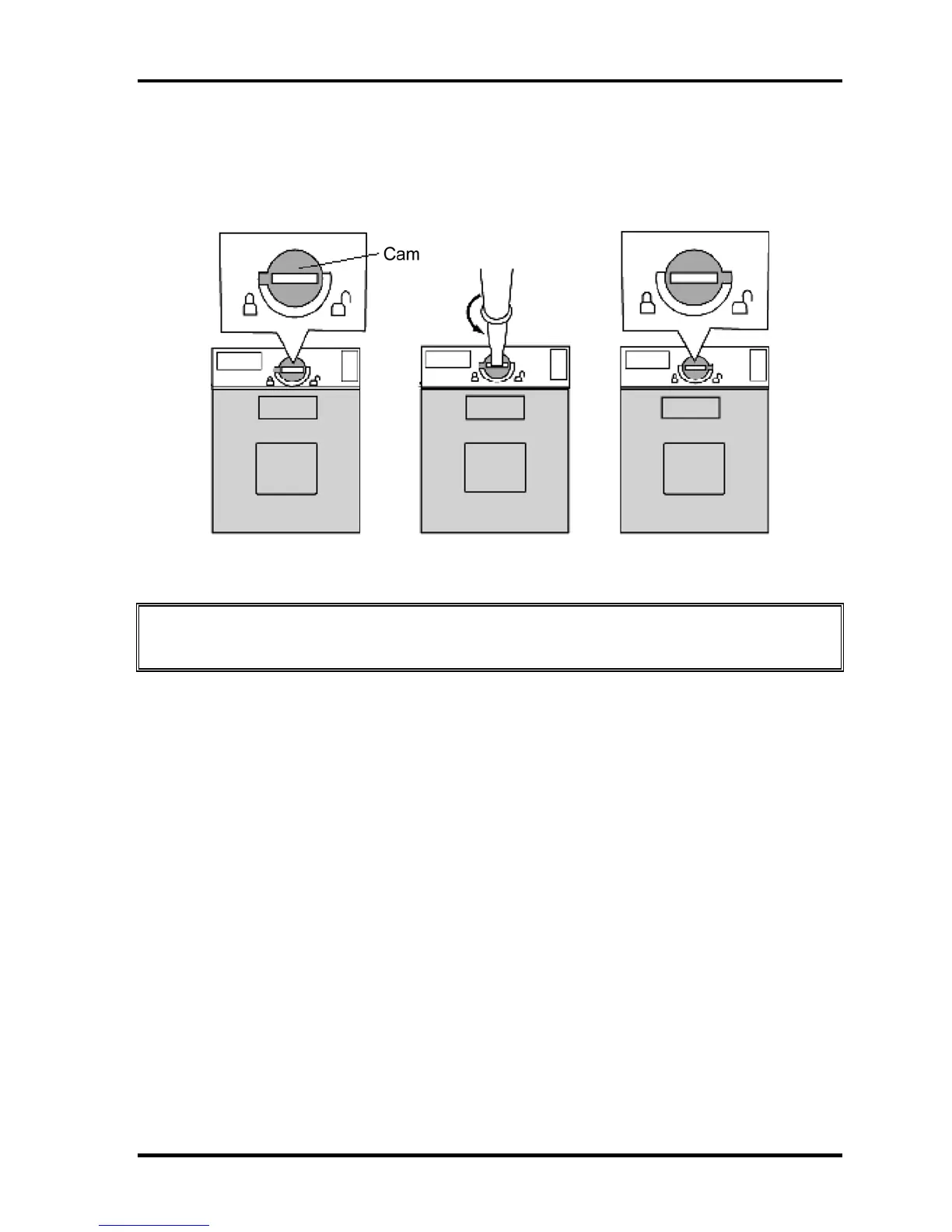

5. Unlock the CPU by turning the cam counterclockwise on the CPU socket by 180
degrees with a flat-blade screwdriver.
6. Remove the CPU.
Figure 4-43 Removing the CPU
CAUTION: When removing the CPU, lift it up right above. Otherwise, pins of the CPU
may be damaged.
TECRA A10/S10/P10/SatellitePro S300 Maintenance Manual (960-684) [CONFIDENTIAL] 4-69
