Toshiba TECRA A10 - PC Card Unit

4 Replacement Procedures 4.24 PC card unit
4.24 PC card unit
Removing the PC card unit
To remove the PC card unit, follow the steps below and refer to Figure 4-49.
1. Remove the following screws securing the PC card unit.
• M2.0×3C Tapping screw ×2
• M2.0×8C Tapping screw ×2
2. Remove the PC card unit while releasing the latches.
M2.0x3C Tapping
Latch
PC card unit
M2.0x3C Tapping
M2.0x8C Tapping
M2.0x8C Tapping

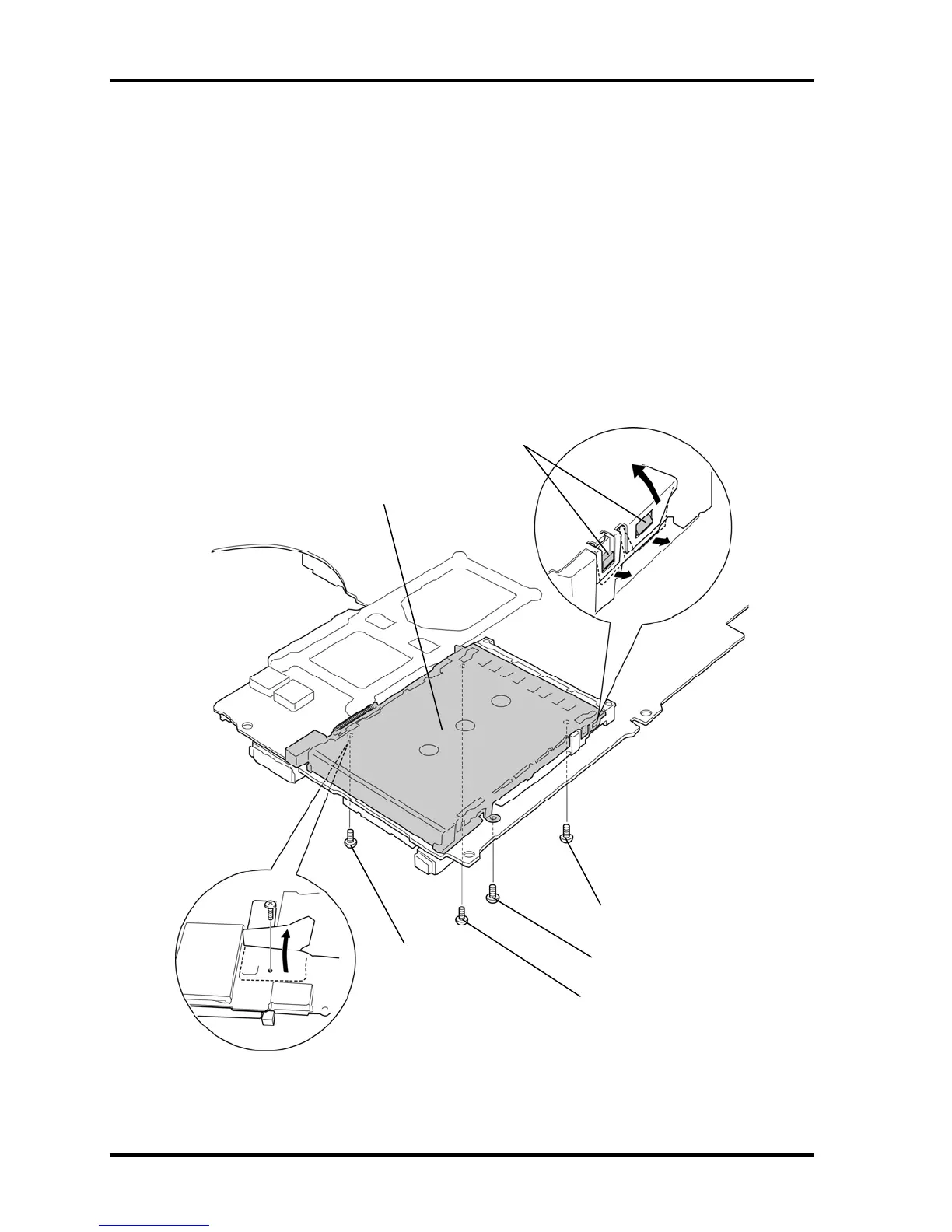

Figure 4-46 Removing the PC card unit
