4.32 Camera module/Wireless LAN antenna/3G antenna 4 Replacement Procedures

4.32 Camera module/Wireless LAN antenna/3G antenna

Removing the Camera module/Wireless LAN antenna/3G antenna

To remove the camera module/wireless LAN antenna/3G antenna, follow the steps below

and refer to Figure 4-61.

1. Turn up the insulators (ANTENA HLD INSULATOR) and peel off the acetate

tapes securing the wireless LAN antenna cables, 3G antenna cables and camera

harness.

2. Take out the camera module from the slot and disconnect the camera harness from

the connector on the camera module.

3. Peel off the wireless LAN antennas and 3G antennas from the LCD cover.

NOTE: Do not reuse the removed camera module, wireless LAN antennas and 3G

antennas. Be sure to use new camera module, wireless LAN antenna or 3G

antenna.

Wireless LAN

antenna (white)

Wireless LAN antenna (black)

cetate tape

Camera module

Camera harness

Insulator LCD COVER ASSY

Insulator

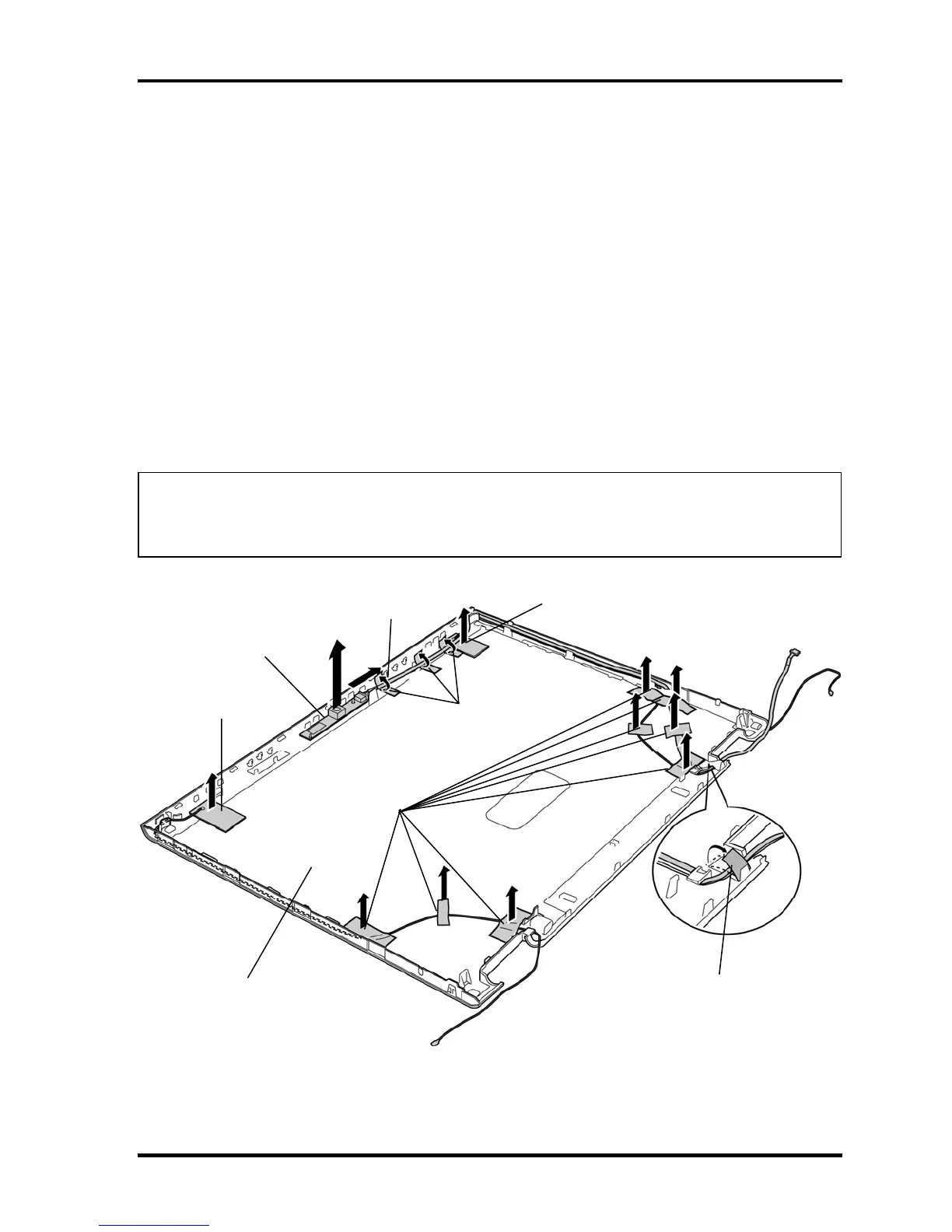

Figure 4-61 Removing the camera module/wireless LAN antenna/3G antenna)

TECRA A10/S10/P10/SatellitePro S300 Maintenance Manual (960-684) [CONFIDENTIAL] 4-95
