4.30 Smart card unit 4 Replacement Procedures

4.30 Smart card unit

Removing the Smart card unit

To remove the Smart card unit, follow the steps below and refer to Figure 4-55.

1. Peel off the insulator fixing the Smart card FPC.

2. Pull the Smart card FPC from the hole 1 out, then pull the Smart card FPC from

the hole 2 out.

3. Lift up the hook of the Smart card unit in the direction as shown in the figure below

to remove the Smart card unit from the guides.

Insulator

Smart card FPC

Smart card unit

Hole1

Guide

Hook

Hole2

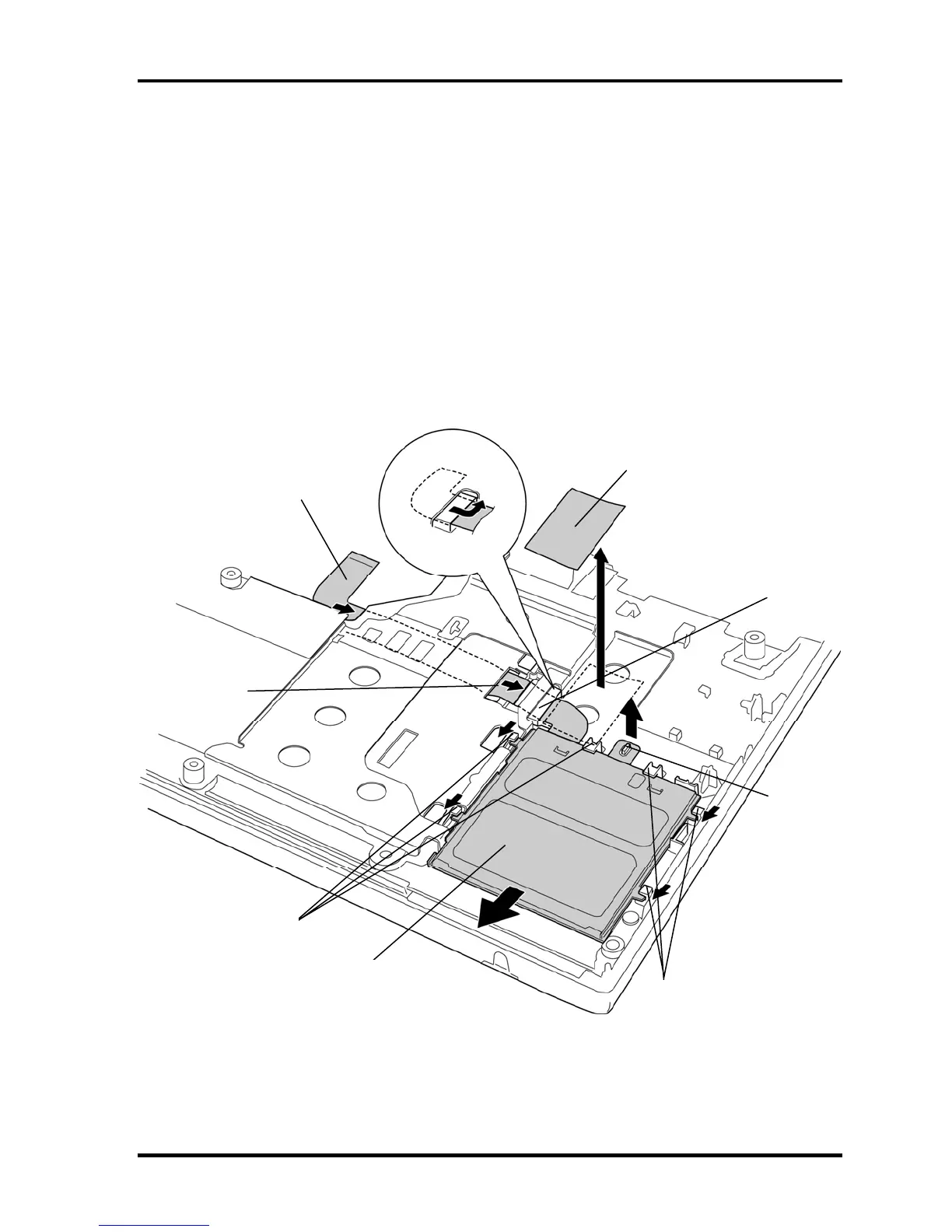

Figure4-55 Removing the Smart card unit

TECRA A10/S10/P10/SatellitePro S300 Maintenance Manual (960-684) [CONFIDENTIAL] 4-87
