4.20 Microphone harness 4 Replacement Procedures

4.20 Microphone harness

Removing the Microphone harness

To remove the microphone harness, follow the steps below and refer to Figure 4-36.

1. Disconnect the microphone harness from the connector CN6050 on the sound board.

2. Remove the microphone harness from the slot of the base assembly.

CN6050

Microphone harness

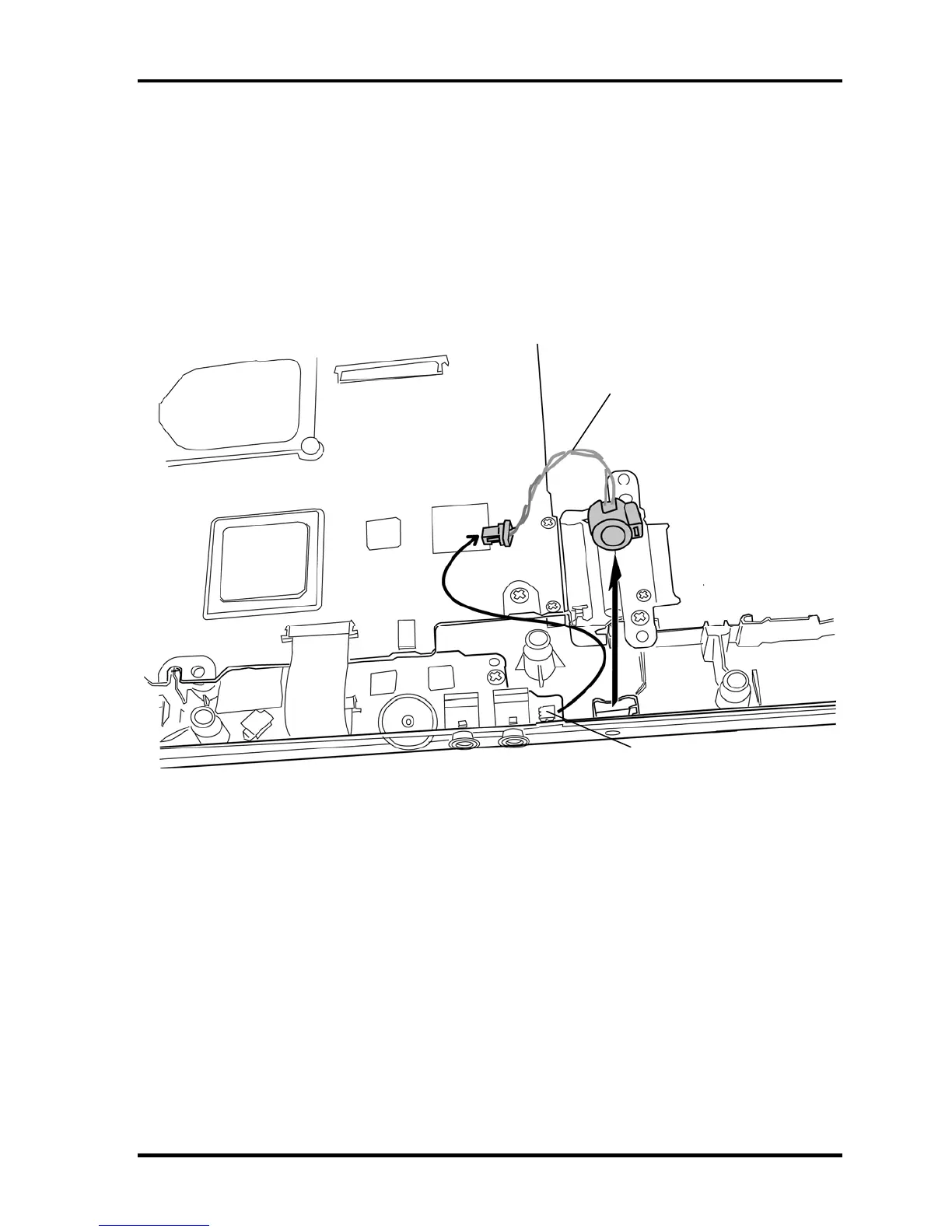

Figure 4-36 Removing the microphone harness

Installing the Microphone harness

To install the microphone harness, follow the steps below and refer to Figure 4-36.

1. Connect the microphone harness to the connector CN6050 on the sound board and

set the microphone harness into the slot of the base assembly.

TECRA A10/S10/P10/SatellitePro S300 Maintenance Manual (960-684) [CONFIDENTIAL] 4-59
