1.7 TFT Color Display 1 Hardware Overview
1.7 TFT Color Display
The TFT color display consists of 15.4-inch or 14.1-inch WXGA/WXGA+ LCD module and
FL inverter board.
1.7.1 LCD Module
The LCD module used for the TFT color display uses a backlight as the light source and can
display a maximum of 16M colors with 1,280 x 800 or 1,680x1050 resolution. The Intel
Crestline-GM can control internal and external WXGA or WXGA+ support displays
simultaneously.
Figure 1-8 shows a view of the LCD module and Table 1-6 lists the specifications.

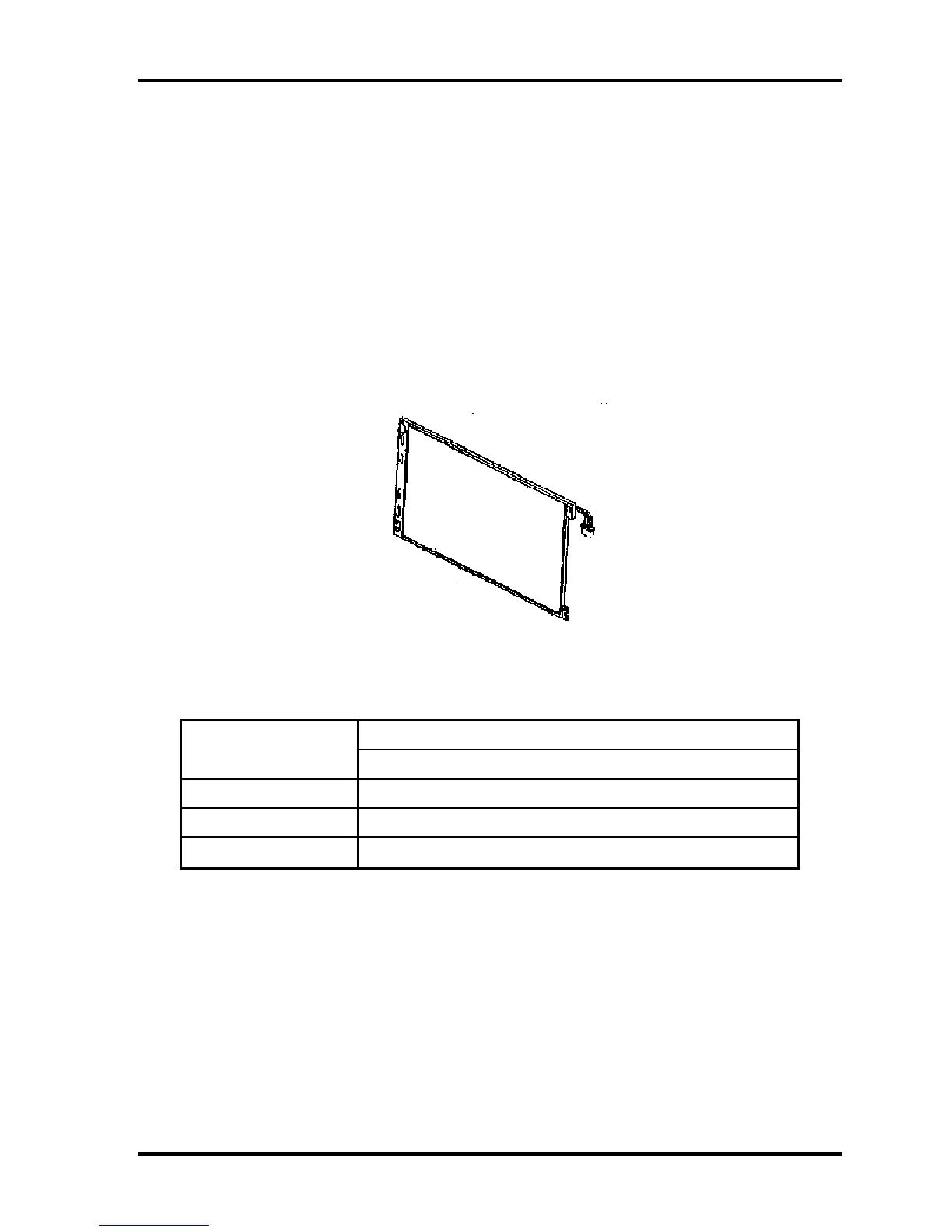

Figure 1-8 LCD module
Table 1-6 LCD module specifications
Specifications
Item
15.4-inch WXGA TFT Samsung (G33C0004S110)
Number of Dots 1,280 (W) x 800 (H)
Dot spacing (mm) 0.25875(H)x0.25875(V)
Display range (mm)
331.38(H)x207.1125(V) (15.4”diagonal)
Satellite Pro S300, TECRA A10/S10/P10 Maintenance Manual (960-684) [CONFIDENTIAL] 1-23
