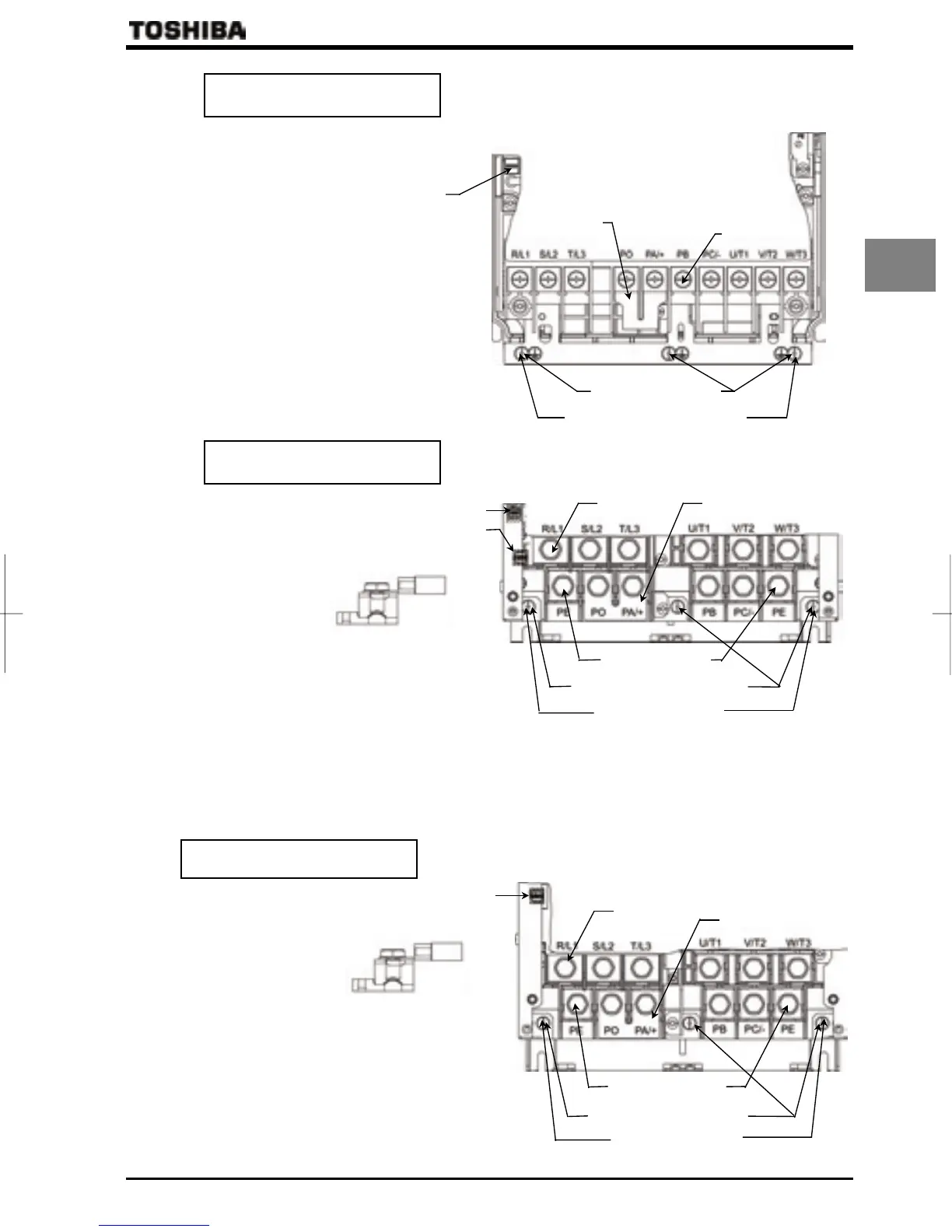

E6581386
A-5
1
M6 screw
Shorting-bar
Grounding capacitor
switching switch
Grounding terminal
(M5 screw)
Screw hole for EMC plate
Use crimped ring
lugs of appropriate
size on input and
output cables. Attach
to the top side of the
terminal block only.
Do not place wires
in the hole of the
terminal block.
M8 screw Shorting-bar
Grounding capacitor switching switch
Grounding terminal
(M5 screw)
Screw hole for EMC plate
Grounding capacitor switching switch
(400V model)
Grounding terminal
(M8 screw)
Use crimped ring
lugs of appropriate
size on input and
output cables. Attach
to the top side of the
terminal block only.
Do not place wires
in the hole of the
terminal block.
M8 screw
Shorting-bar
Grounding capacitor switching switch
Grounding terminal
(M5 screw)
Screw hole for EMC plate
Grounding terminal
(M8 screw)
VFPS1-2110PM, 2150PM
VFPS1-4150PL, 4185PL
VFPS1-2185PM, 2220PM
VFPS1-4220PL
VFPS1-4300PL, 4370PL
