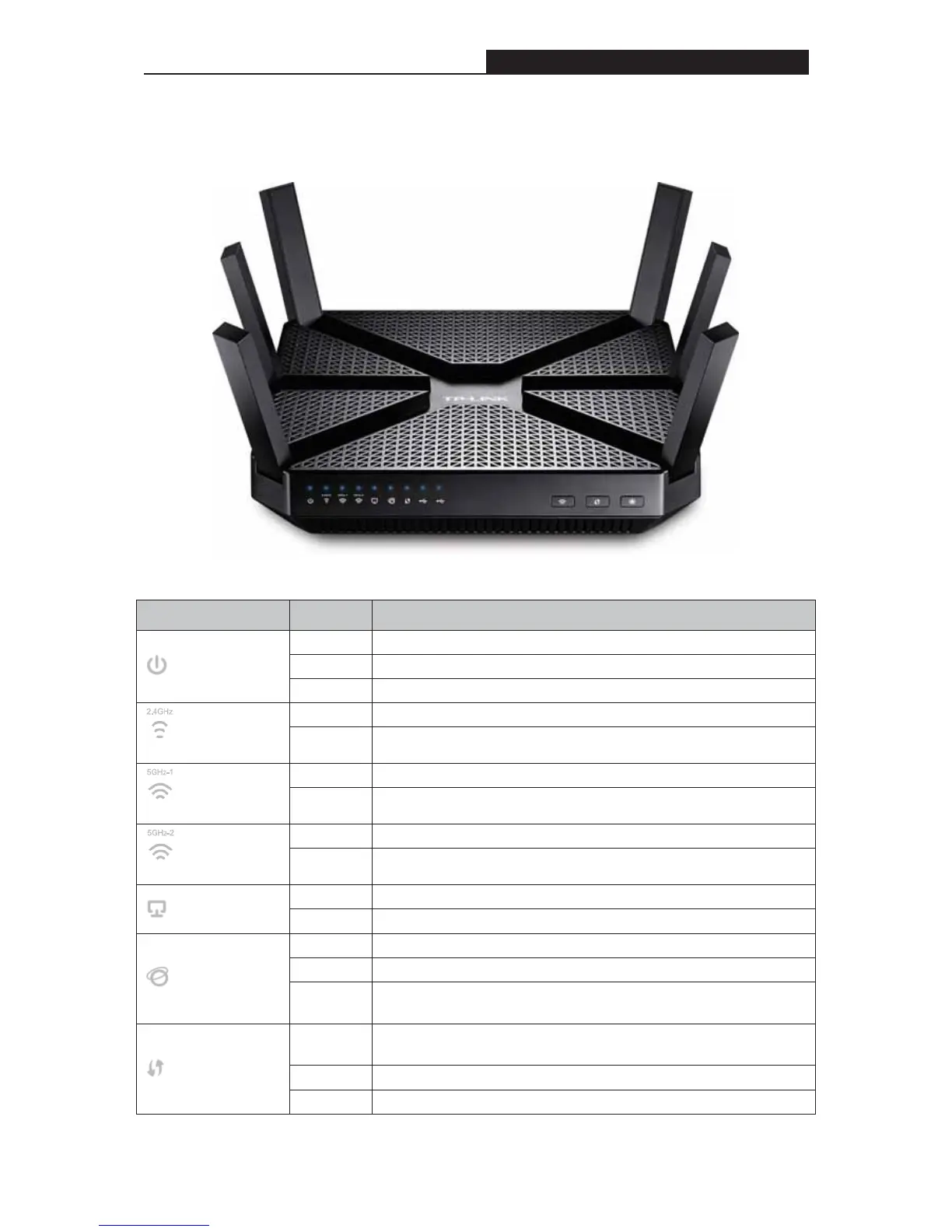

Archer C3200 AC3200 Wireless Tri-Band Gigabit Router
1.4 Panel Layout
1.4.1 Front Panel
The rout
er’s LEDs are located on the front panel (View from left to right).
Name Status Indication
(Power)
Flashing The router is booting or upgrading.
On The router has booted.
Off Power is off.
(2.4GHz
Wireless)
On 2.4GHz wireless is working properly.
Off 2.4GHz wireless is disabled.
(5GHz-1
Wireless)
On 5GHz-1 wireless is working properly.
Off 5GHz-1 wireless is disabled.
(5GHz-2
Wireless)
On 5GHz-2 wireless is working properly.
Off 5GHz-2 wireless is disabled.
(Ethernet)
On There is device(s) connected to the Ethernet (1/2/3/4) port(s).
Off No any device is connected to the Ethernet (1/2/3/4) port.
(Internet)
Blue The Internet port is connected, and the Internet is accessible.
Orange The Internet port is connected, but the Internet is inaccessible.
Off
The Internet port isn’t connected, and the Internet is
inaccessible.
(WPS)
Flashing
WPS button on the router is pressed, and the router is trying to
connect a wireless device to its network via WPS.
On The connection via WPS is successful.
Off The connection via WPS fails.
