TP-Link Easy Smart Switch User Manual

User Guide 56
Configuring VLAN Configuration Example for 802.1Q VLAN

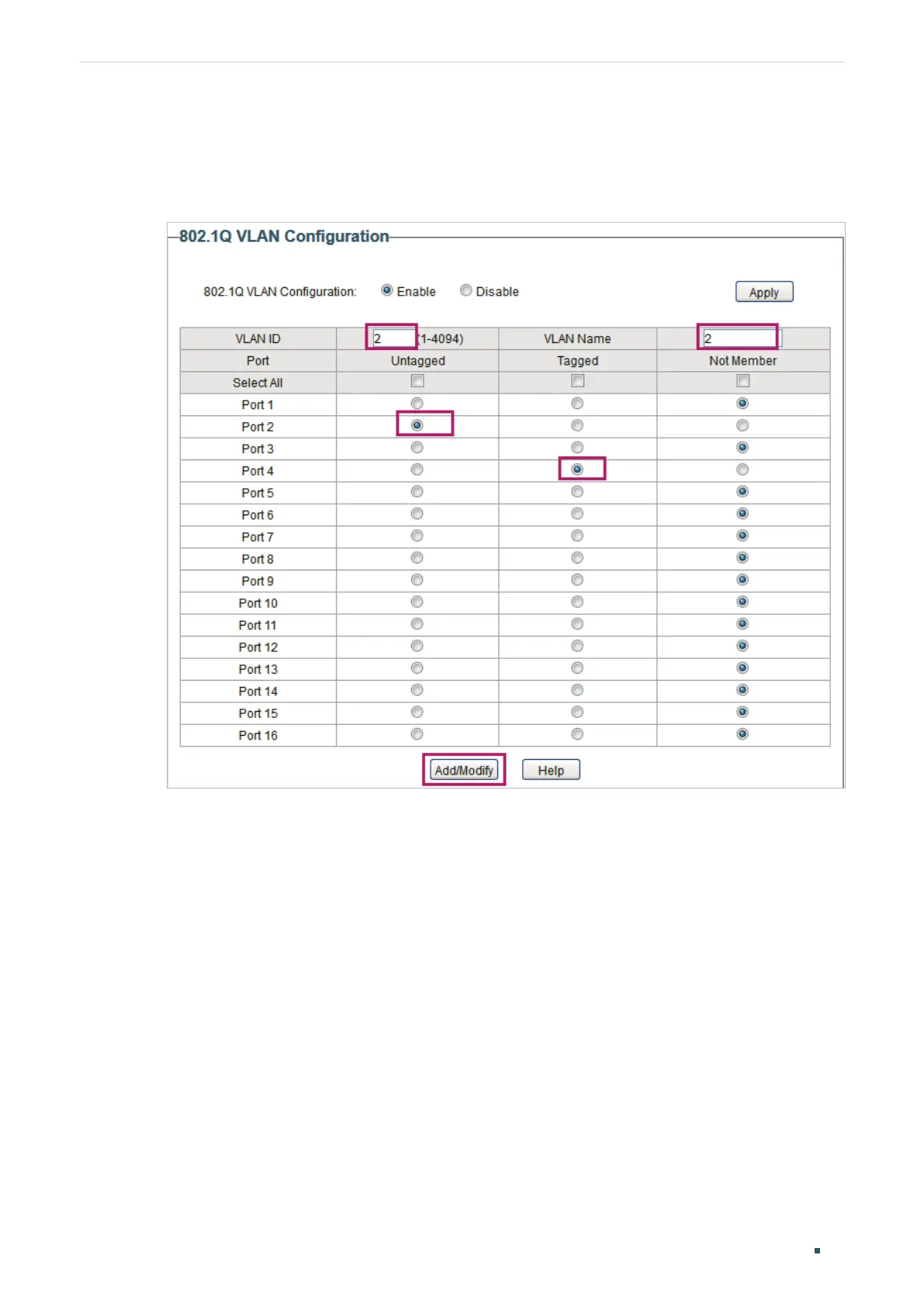

2) Choose the menu VLAN > 802.1Q VLAN to load the following page and create VLAN 2.
Specify VLAN ID as 2, add port 2 to the VLAN as an untagged port, and add port 4 to the
VLAN as a tagged port. Click Add/Modify.
Figure 5-3 Creating VLAN 2 and Adding Ports to the VLAN

TP-Link Easy Smart Switch Specifications

General

Cable Diagnostics	Yes
Power Input	100-240VAC, 50/60Hz
Operating Temperature	0°C to 40°C (32°F to 104°F)
Storage Temperature	-40°C to 70°C (-40°F to 158°F)
Model	Easy Smart Switch
Port Type	RJ45
Speed	10/100/1000Mbps
MAC Address Table	8K
Jumbo Frame	9KB
QoS	4 queues per port, priority-based QoS
IGMP Snooping	V1/V2/V3 Snooping
Port Mirroring	Yes
Management	Web-based GUI
Standards and Protocols	IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1p, IEEE 802.1Q
Operating Humidity	10% to 90% non-condensing
Storage Humidity	5% to 90% non-condensing
