TQ Aviation KTX2-F.0100
EASA.AP445 MAN
KTX2-F.A-MAN.0001.docx Page 49 of 74
© TQ-Systems GmbH. All information contained in this documents have to be treated strictly confidential. The transfer of presentations and know-how to third parties
requires the prior written consent of TQ-Systems GmbH.

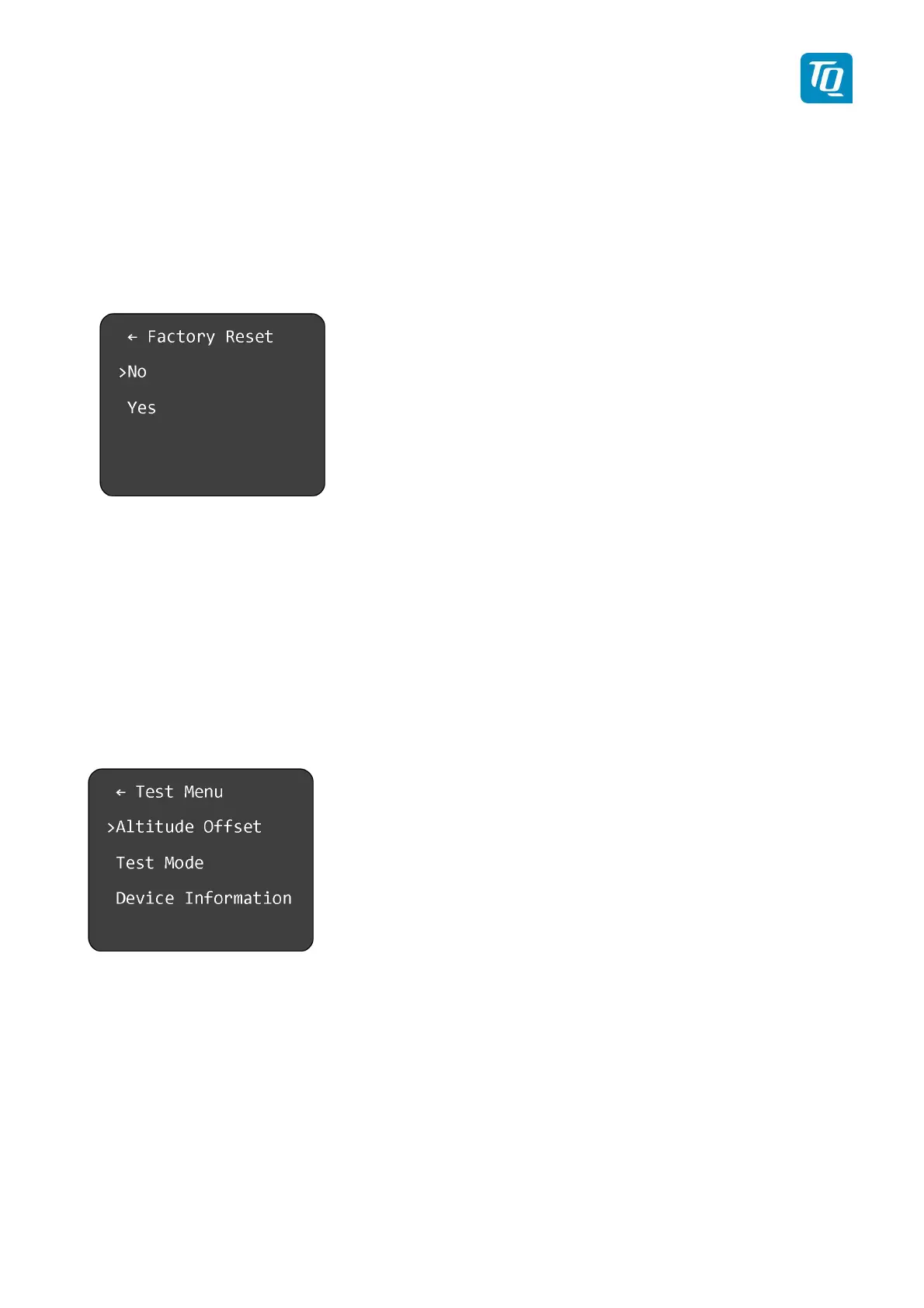

Figure 37: Factory Reset Menu
3.4.4 Factory Reset
In certain cases it may be necessary to perform a factory reset. Performing a factory reset will reset all
settings to their factory defaults.
To perform a factory reset select “Factory Reset” and press the rotary knob. A submenu “Factory Reset”
is displayed.
To perform a factory reset turn the rotary knob to select “Yes” and press the rotary knob. A notification is
displayed which requests a restart of the transponder.
3.4.5 Test Menu
The second page of the setup menu contains only the test menu.
To enter the test menu select “Test Menu” and press the rotary knob. A submenu “Test Menu” is
displayed.
Figure 38: Test Menu
To calibrate the altitude offset select “Altitude Offset” and press the rotary knob. A submenu “Altitude
Offset” is displayed (see 3.4.5.1).
To enter the test mode select “Test Mode” and press the rotary knob. A submenu “Test Mode” is
displayed (see 3.4.5.2).
To show some device information select “Device Information” and press the rotary knob. A submenu
“Device Info” is displayed (see 3.4.5.3).
