4.4 Notifications
4.4.1 GNSS Data CRC Failure

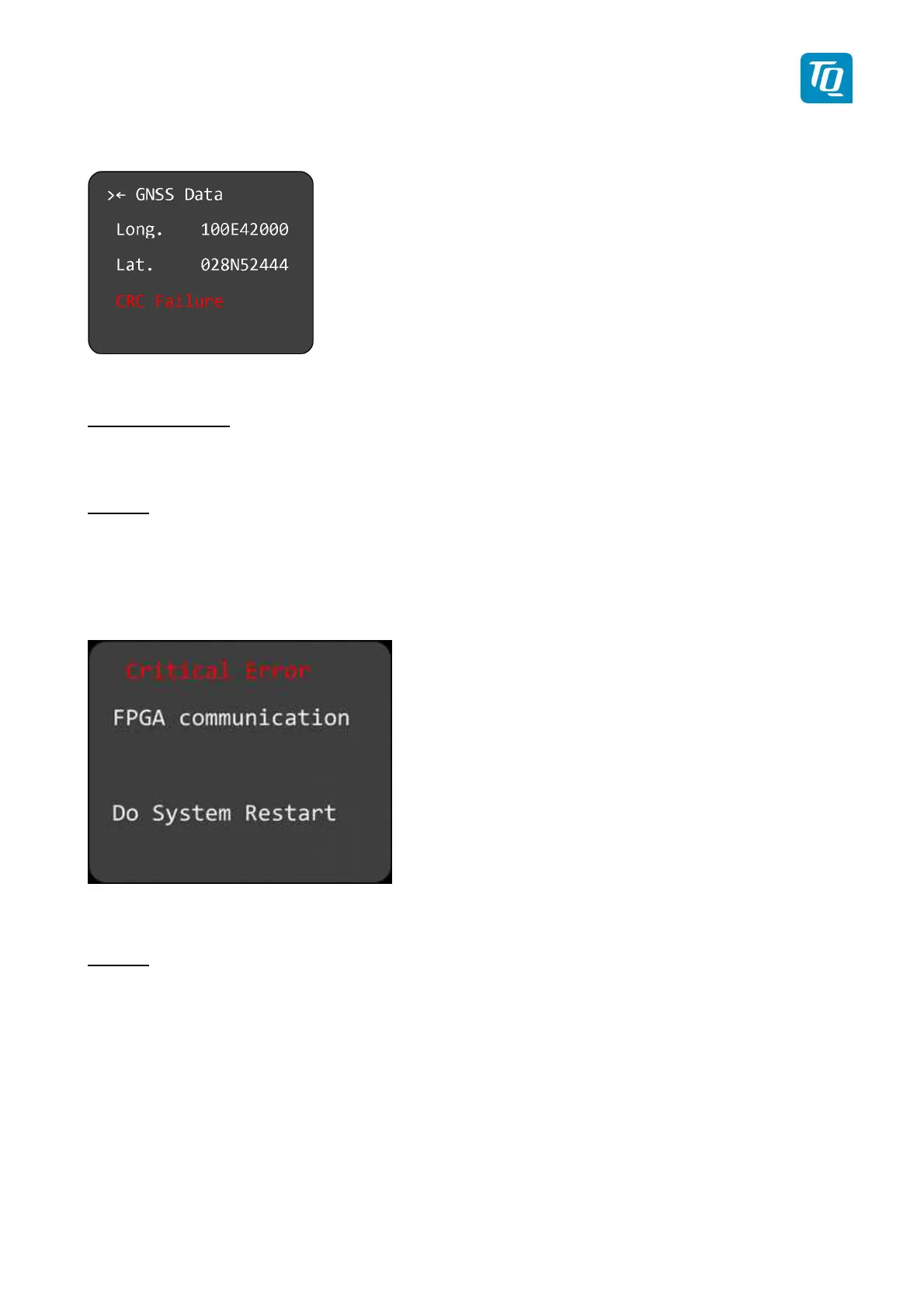

Figure 46: GNSS CRC Failure
Possible Reasons:
Invalid data from GNSS source.
Actions:
Check installation, cable, connections and configuration of the installed GNSS source.
4.4.2 Do System Restart
The following message is displayed if a restart of transponder is necessary.
Figure 47: System Restart
Actions:
Switch the transponder off and on again
