The mounting material for the position sensor should absolutely consist of not
magnetizable material.

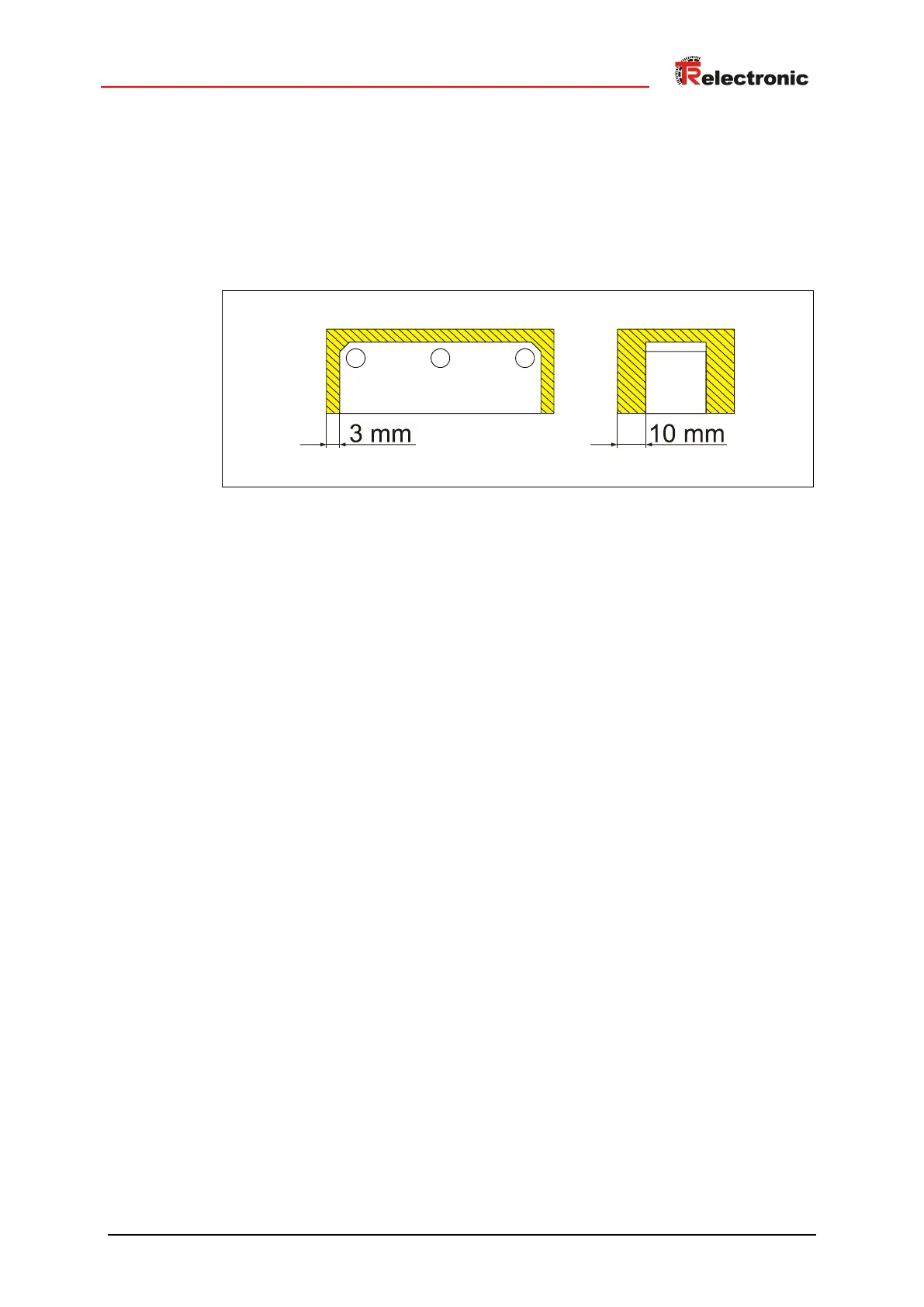

If magnetizable mounting material is used, a spacer from not magnetizable material
with 10 mm thickness and min. 3 mm must be planned more largely in the distance to
the extent of the position sensor. The spacer is to be installed between the position
sensor and its attachment. The screws must be from not magnetizable material.
