4.2 Measuring system version with Analog-Current
Over the analog interface the measuring system position can be output as current
value.
Analog Current, Position / Speed

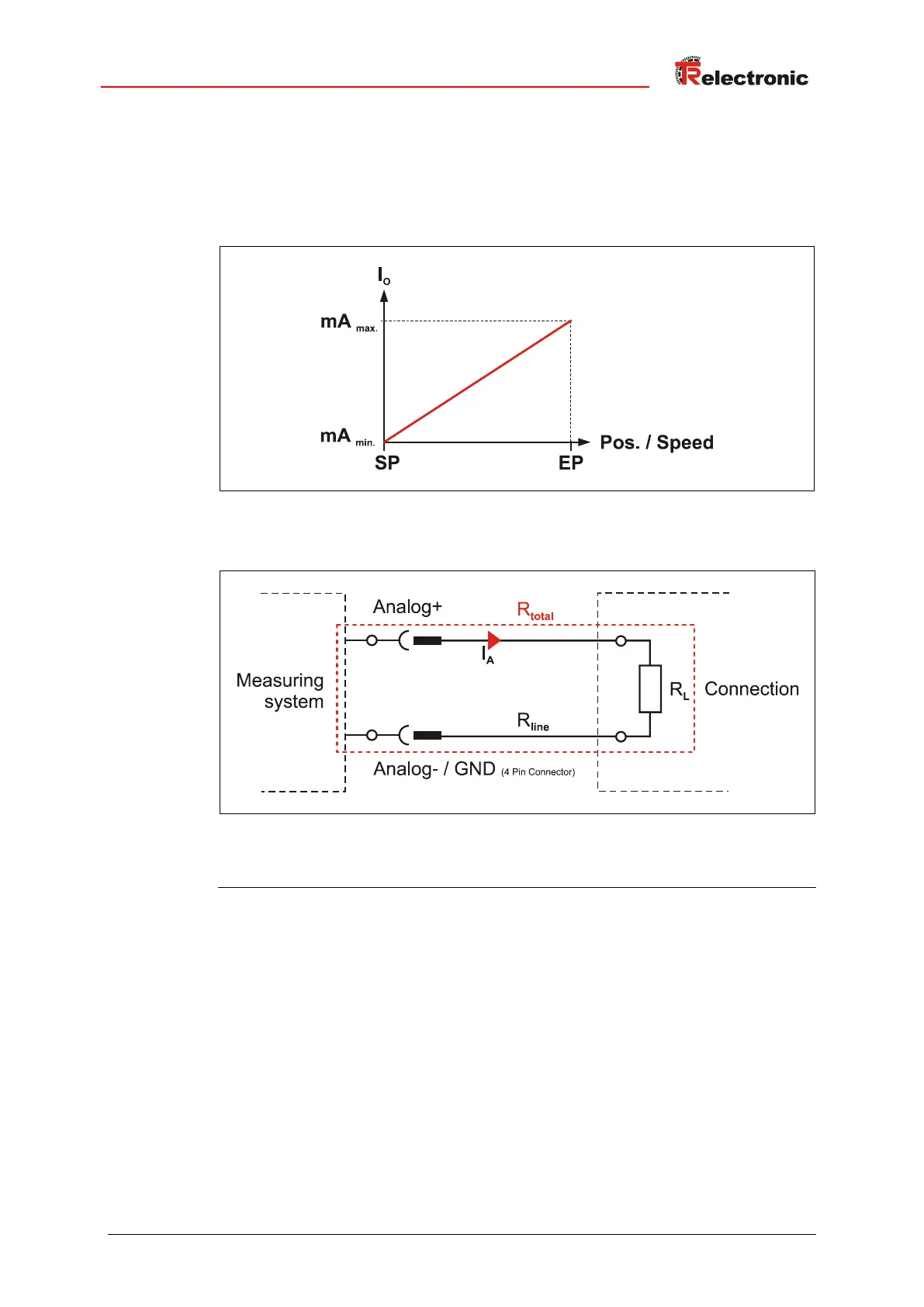

Principle schematic
Legend
I
O
= actual measured output current [mA]
mA
max.
= maximal analog current
mA
min.
= minimal analog current
SP = Start point
EP = End point
Pos = Measuring system position
R
L
= Load resistor []
R
line
= Line resistance []
R
total
= Total resistance [] = R
line
+ R
L
, 0 up to 500 
