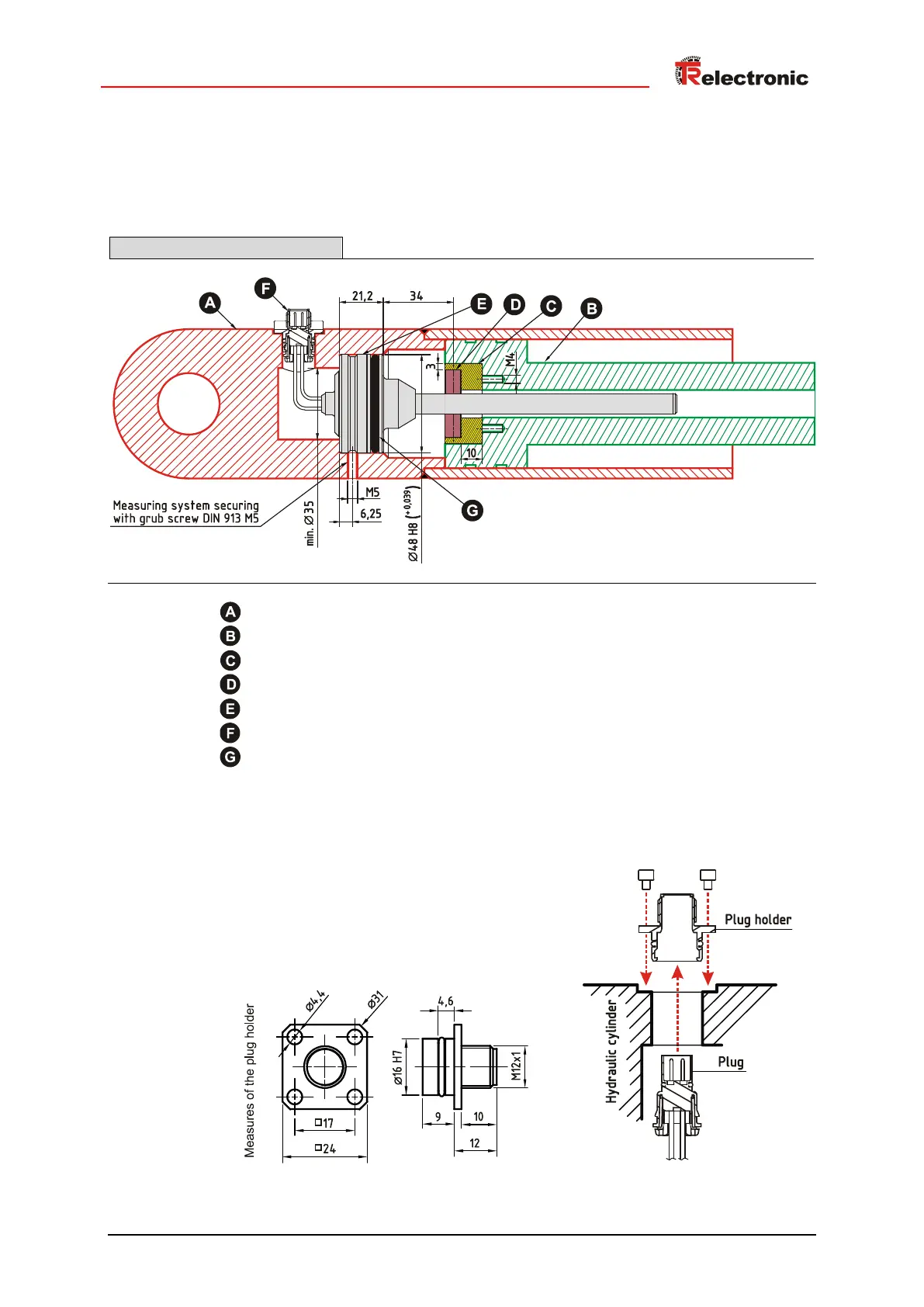

5.2.2 Mounting example LMR-48, version with M12-male connector
The LMR-48 linear sensor is fit into the hydraulic cylinder and secured from twisting
with a grub screw (DIN 913 M5). The sealing is realized by means of an O ring at the
device housing.
not specified dimensions see customized drawing!
Hydraulic cylinder
Piston rod
Spacer, consisting of not magnetizable material
Magnet (Position sensor)
Measuring system
Plug with plug holder
O ring
5.2.2.1 Plug mounting
The plug is already pre-assembled and must be
plugged through the drilling of the hydraulic
cylinder in to the plug holder. The plug holder
with the connected plug must be mounted now
with four M4 cylinder head screws to the
hydraulic cylinder.
