01/26/2023 TR-ELA-BA-DGB-0026-04 Page 49 of 52

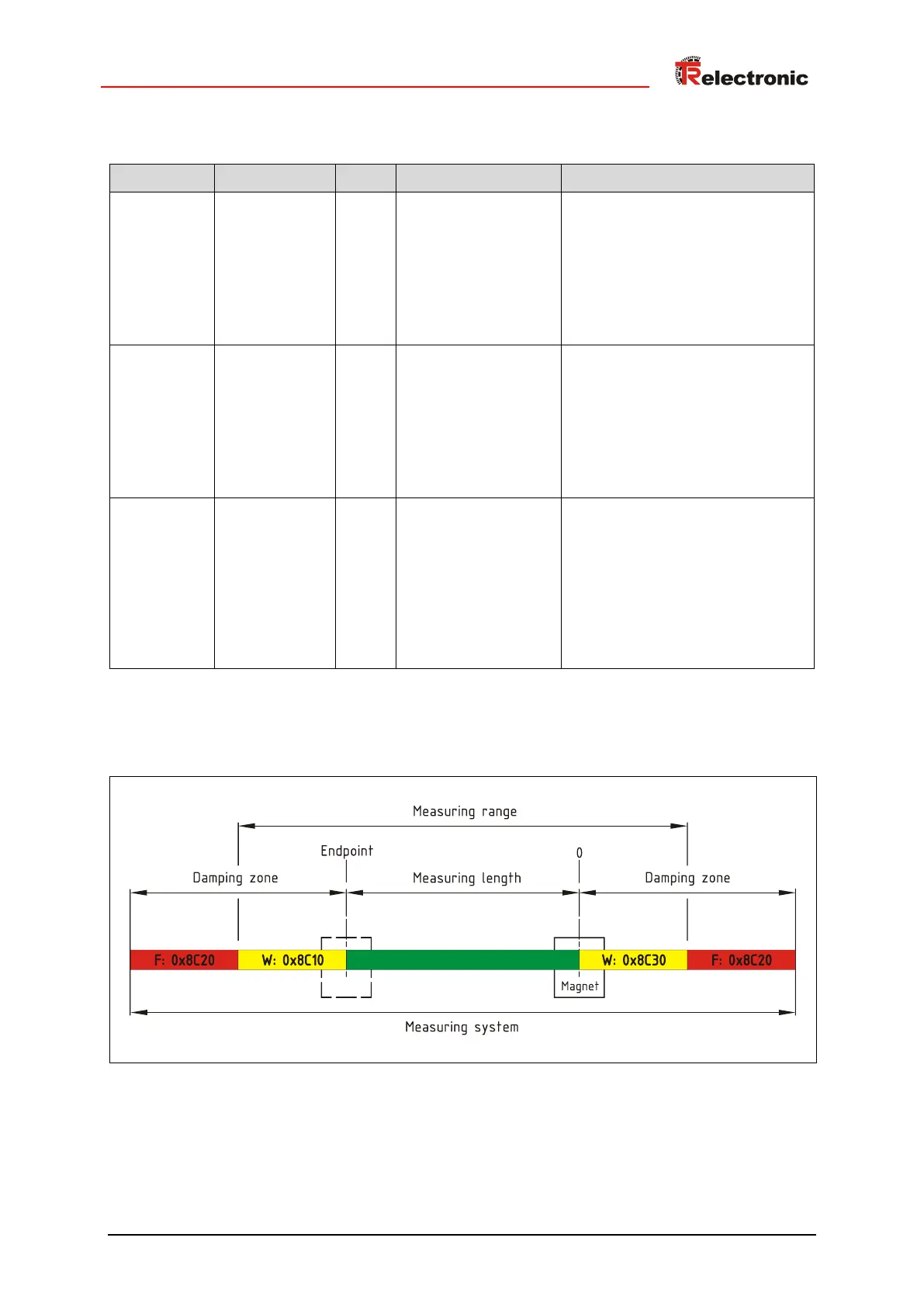

Supported EventCodes
EventCode
Device status
Type
Error message
Remedy
0x8C10
0x02
(Index 0x0024)
W
Process variable
range over-run –
Process Data
uncertain
The magnet is above the specified
measuring length respectively
above the endpoint. The process
data are output furthermore, but
the data can exceed the linearity
limits specified in the data sheet.
-> Move magnet into the
permissible measuring range
0x8C20
0x04
(Index 0x0024)
E
Measurement range
over-run –
Check application
The magnet is outside of the
measuring range and is not
detected. Instead of the process
data the error values are output,
see chapter “Process data - status”
on page 51.
-> Move magnet into the
permissible measuring range
0x8C30
0x02
(Index 0x0024)
W
Process variable
range under-run –
Process Data
uncertain
The magnet is below the specified
measuring length respectively
below the starting point (0). The
process data are output further-
more, but the data can exceed the
linearity limits specified in the data
sheet.
-> Move magnet into the
permissible measuring range
W: WARNING
E: ERROR
