TR-Electronic LMRS-34 - Detailed Device Status (Index 0 X0025)

Troubleshooting and diagnosis options
 TR-Electronic GmbH 2017, All Rights Reserved Printed in the Federal Republic of Germany
Page 48 of 52 TR-ELA-BA-DGB-0026-04 01/26/2023

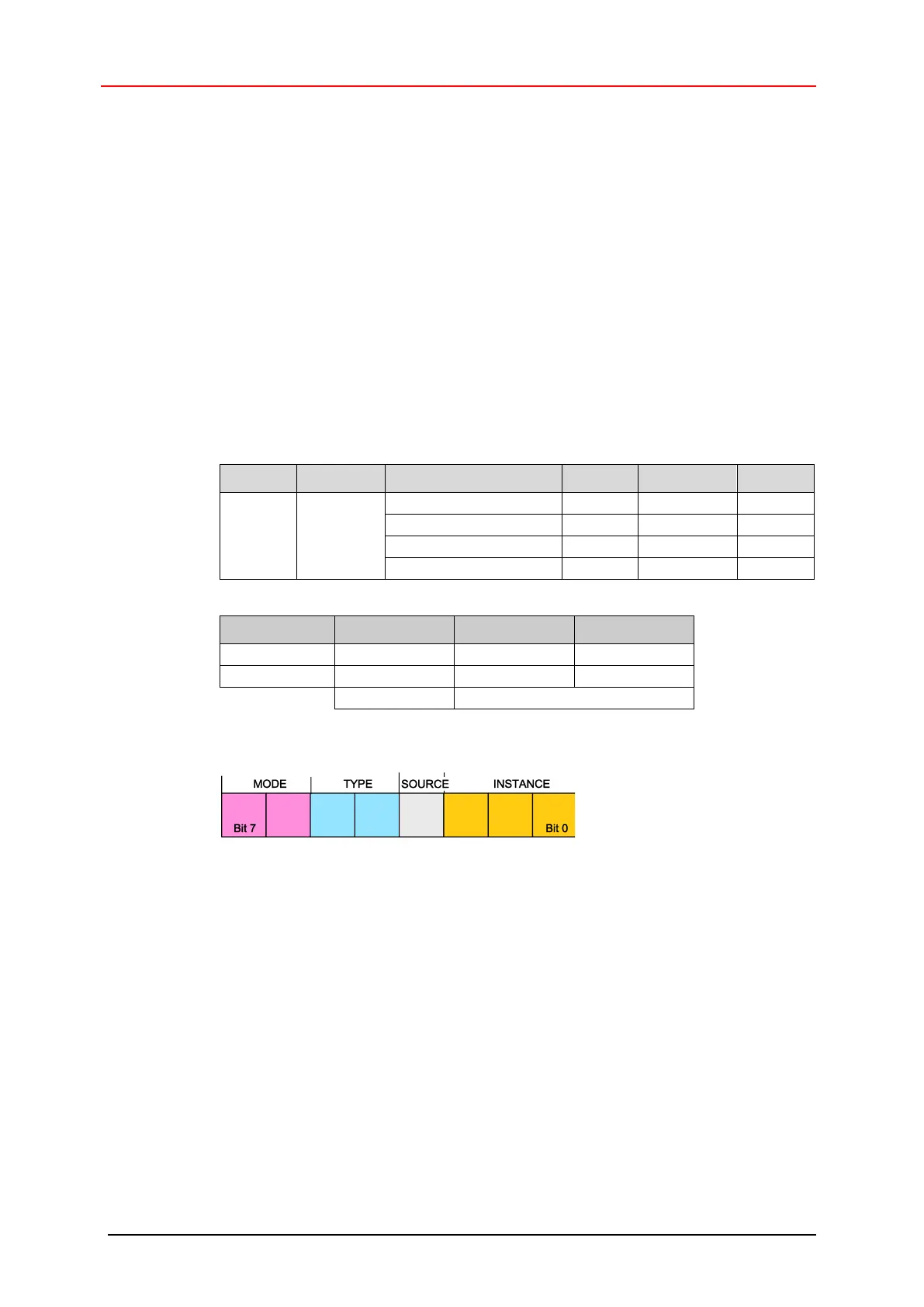

9.3 Detailed device status (Index 0x0025)
The parameter Detailed Device Status provides information about currently
pending events in the device and can be read by any PLC program or corresponding
IO-Link tools.
Each event of TYPE = Error or Warning and MODE = Event appears is entered
into the list with EventQualifier and EventCode.
Upon occurrence of an event with MODE = Event disappears (Error or Warning
no more present), the corresponding entry in the list is set to EventQualifier =
0x00 and EventCode = 0x0000.
This way this parameter always provides the current diagnosis status of the Device.
By means of supply voltage OFF/ON or the system command Restore factory
settings, the contents of all array elements can be cleared.
Index
Subindex
Name
Length
Type
Access
0x0025
0
Detailed Device Status
72 Bit
ArrayT
ro
Error_Warning_1
24 Bit
3 Bytes
ro
Error_Warning_2
24 Bit
3 Bytes
ro
Error_Warning_3
24 Bit
3 Bytes
ro
Byte
x+0
x+1
x+2
Bit
23 – 16
15 – 8
7 – 0
Data
2
7
– 2
0
2
15
– 2
8
2
7
– 2
0
EventQualifier
EventCode
Structure, EventQualifier
Instance, Bit0... Bit2
- 0x04: Application error
Source, Bit 3
- 0x00: Device (remote)
- 0x01: Master (local)
Type, Bit 4...5
- 0x02: Warning present
- 0x03: Error present
Mode, Bit 6...7
- 0x02: Event disappears
- 0x03: Event appears
