Introduction
Home screen: Animated graphic
A graphic of a chiller appears on the home page. The graphic uses animation to indicate the
operational status of the chiller. If the chiller is running, animation appears within the cutaway areas
of the compressor, the evaporator, and the condenser, as shown in
Figure 1, p. 7. If the chiller is not
running, the components are enclosed and are not animated.

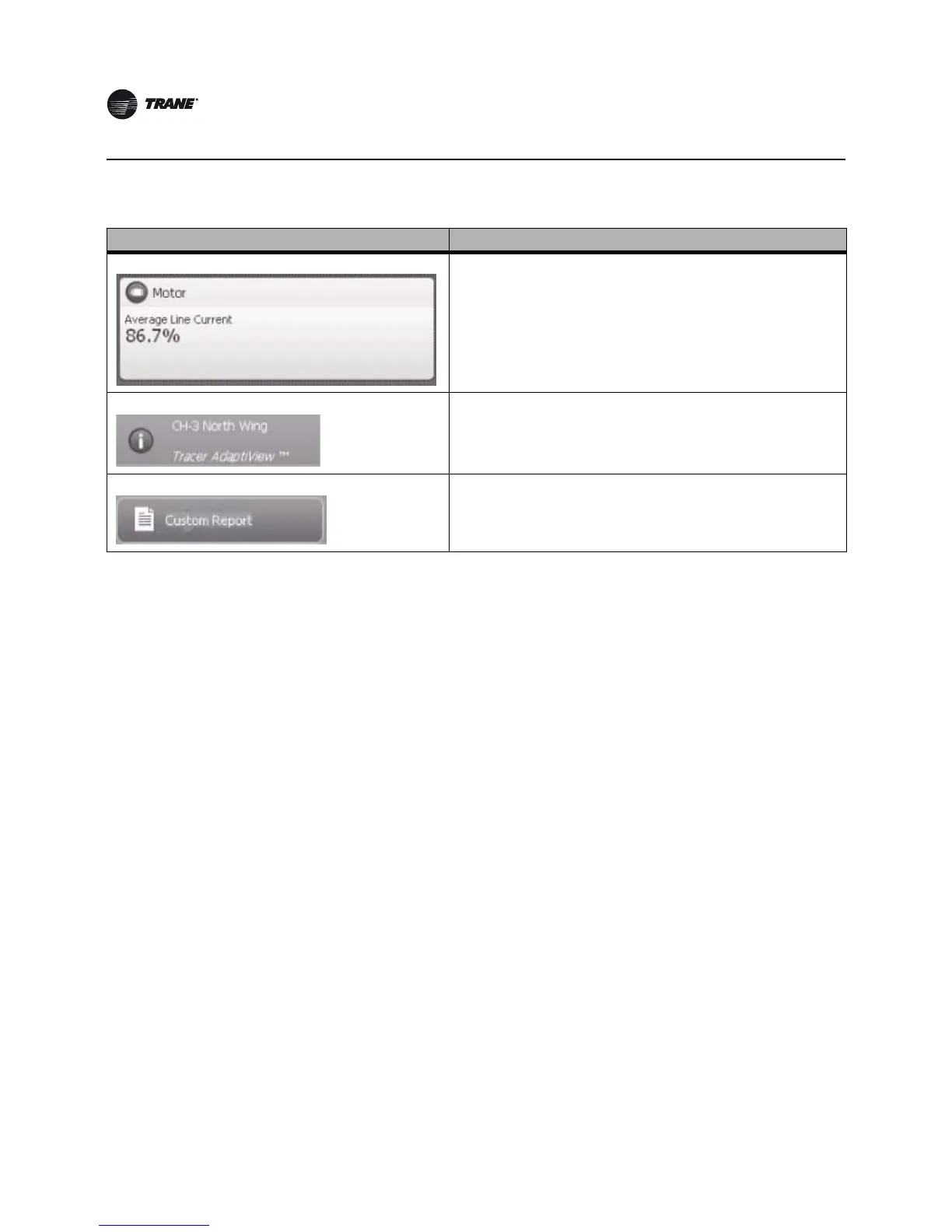

The motor touch target provides information on:
• Average line current
• Frequency (if adjustable-frequency drive is configured)
Touch anywhere on the touch target to view the Motor component screen.
Information button
Touch any of the elements on this touch target to view the About this Chiller
screen.
Note: For more information, see “Viewing Unit Information (About This Chiller),”
p. 22.
Custom Report
Touch the Custom Report button to view the Custom Report screen.
Note: For more information, see “Creating and Viewing a Custom Report,” p. 20.
