CTV-SVU02A-EN 9
Introduction
Main Display Area/Home Screen
All screens appear within the main display area (shown as location in Figure 1, p. 7).
Home screen: Chiller status information
The home screen (Figure 1, p. 7) provides the most frequently needed chiller status information on
“touch targets” (the entire white rectangular areas) for each chiller component. Touching any touch
target displays a screen containing more chiller status information related to each component (see
“Component Screens,” p. 12).
Each touch targets that appears on the home screen is described in Table 2.
In the lower right corner of the home screen, you can view the date and time as well as additional
chiller information. For details, see the last three rows of Ta b le 2 .

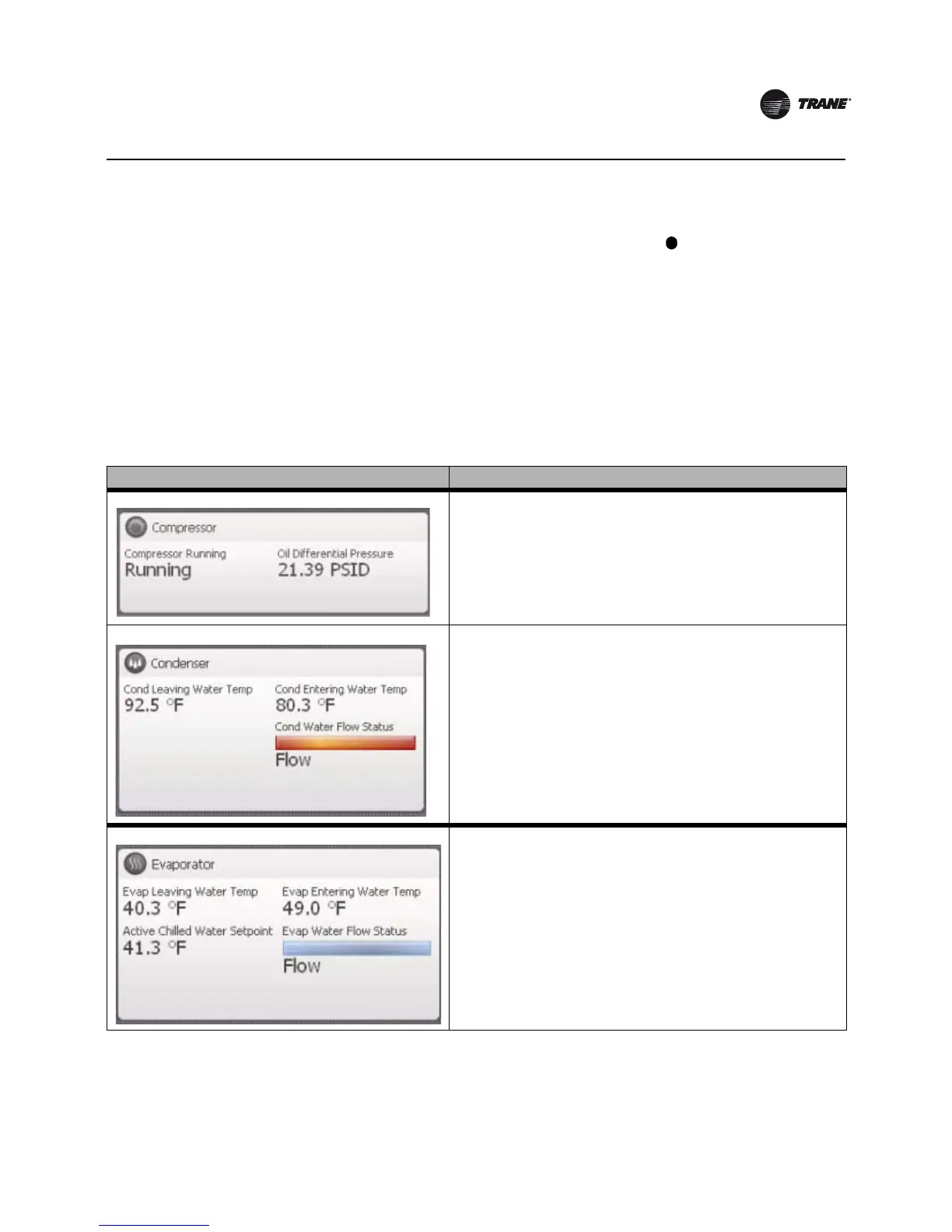

Table 2. Home screen touch targets and buttons
Touch target Description
This compressor touch target chiller provides information on:
• Compressor Running Status
• Differential Oil Pressure
Touch anywhere on the touch target to view the Compressor component
screen.
This condenser touch target provides information on:
• Condenser leaving water temperature
• Condenser entering water temperature
• Active hot water setpoint (if hot water control is available)
• Condenser water flow (animation in graphic indicates if condenser is
running)
Touch anywhere on the touch target to view the Condenser component
screen.
The evaporator touch target provides information on:
• Evaporator leaving water temperature
• Evaporator entering water temperature
• Active chilled water setpoint (if chilled water control is available)
• Evaporator water flow (animation in graphic indicates if evaporator is
running)
Touch anywhere on the touch target to view the Evaporator component
screen.
