Installation
RT-SVX21AC-EN 43

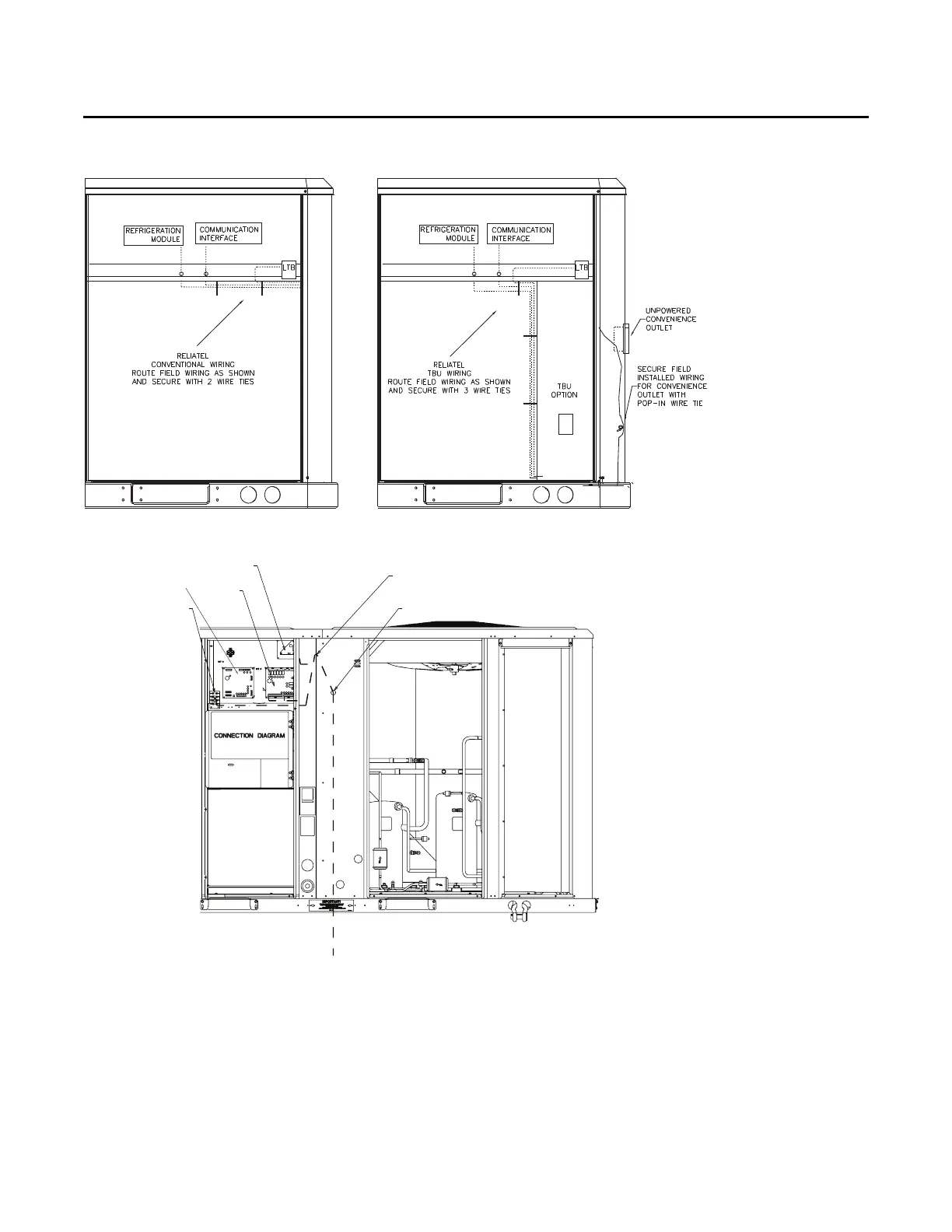

Figure 66. ReliaTel™ control customer low voltage routing (all units except 10 ton high efficiency)
Figure 67. ReliaTel™ (without TBUE) control customer wire routing (10 ton high efficiency)
COMMUNICATION
INTERFACE (COMM)
REFRIGERATION
MODULE (RTRM)
LOW-VOLTAGE
TERMINAL BOARD
(LTB)
ENTER CONTROL BOX THROUGH HOLE IN
OUTDOOR DIVIDER PANEL. SECURE FIELD
WIRING WITH POP-IN WIRE TIE NEAR
HOLE IN OUTDOOR DIVIDER PANEL.
ENTER UNIT THROUGH HOLE IN POST.
ReliaTel OPTIONS
MODULE (RTOM)
