90
CHAPTER 19
CHAPTER 19 - PRODUCT SPECIFICATIONS
C
B
A
D
E
F
G
H

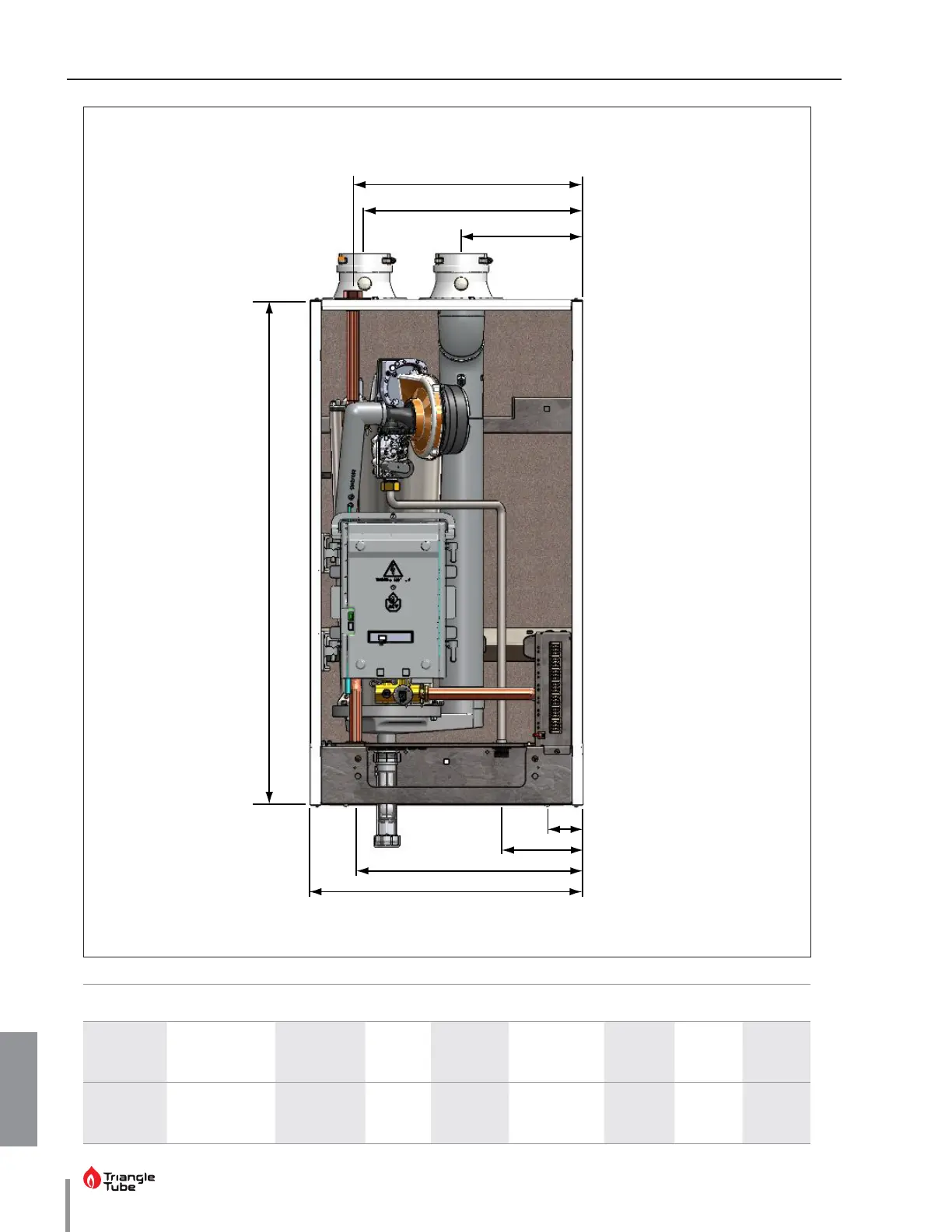

Fig. 39 - Front View PRESTIGE Solo 80/110
A B C D E F G H
Connection
3/4” NPSC Pressure
Relief Valve
3” Combustion
Air Inlet
3” Vent
Outlet
1” NPT Boiler
Return
1/2” NPT Gas
Connection
1” NPT Boil-
er Supply
Boiler
Width
Boiler
Height
Dimension
in [mm]
16-5/8”
[423]
15-13/16”
[402]
8-13/16”
[224]
2-7/8”
[73]
5-7/8”
[150]
16-7/16”
[418]
19-3/4”
[502]
36-9/16”
[928]
