CHAPTER 6

CHAPTER 6 - GAS PIPING

Blower Assembly

Gas Valve Collar O-Ring

Orifice

Orifice O-Ring

Gas Valve

Gas Valve Collar

M5x12 Torx

Collar Screws (4)

Venturi

Offset Pressure

Cover Screw

Throttle Screw (Not Shown)

Red Plastic Sleeve

Inlet Gas Pressure

Port (Not Shown)

Note: Orice, orice o-ring and gas valve

collar o-ring must be inserted into the

bottom of the Gas Valve Collar before

installing the collar onto the gas valve.

Blower Assembly

Gas Valve Collar O-Ring

Orifice

Orifice O-Ring

Gas Valve

Gas Valve Collar

Venturi

Offset Pressure

Cover Screw

Throttle Screw

Inlet Gas Pressure

Port

Venturi O-Ring

Note: In this version,

the throttle screw is

located on the Venturi.

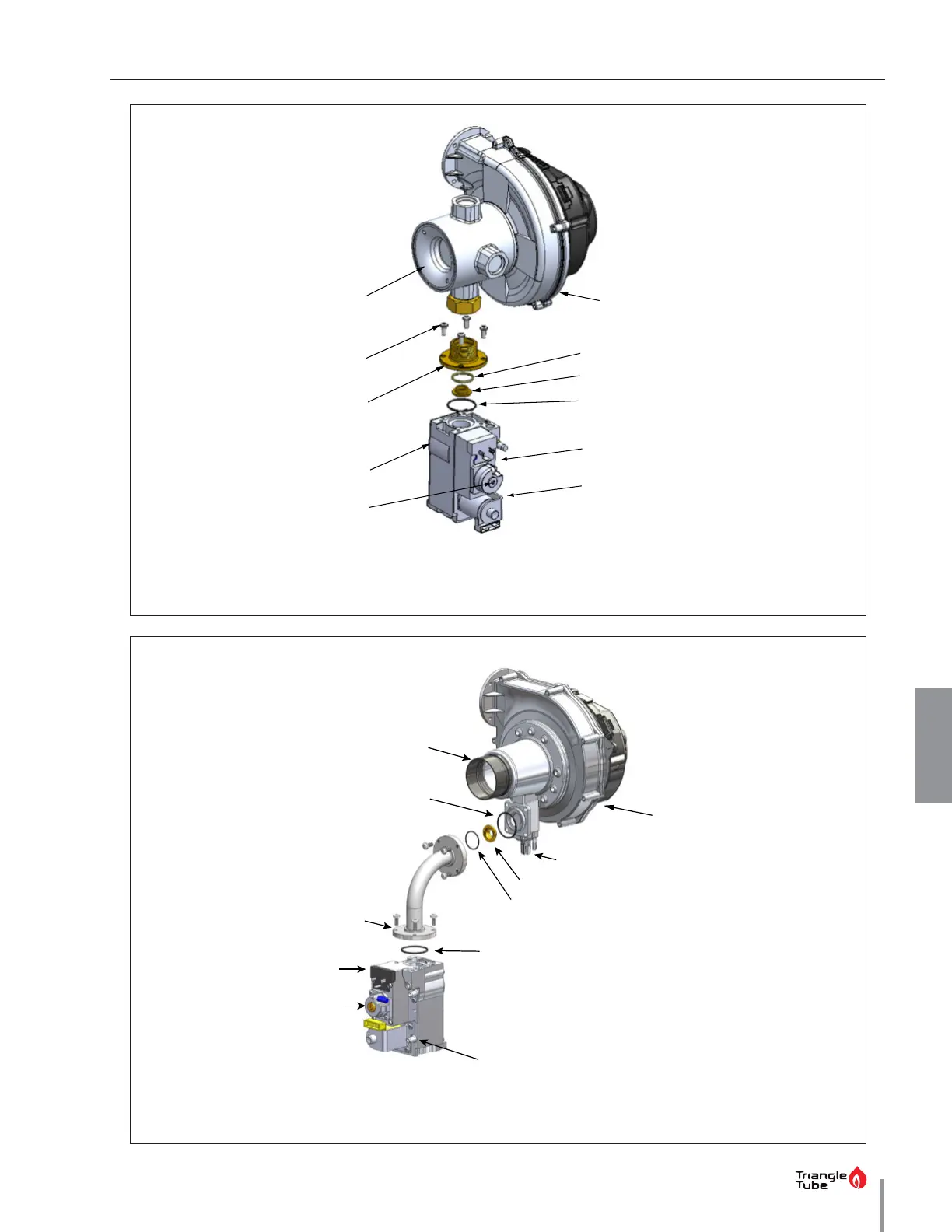

Fig. 18 - Gas Valve / Venturi Assembly - PRESTIGE Solo 299 /399 ()

Fig. 19 - Gas Valve / Venturi Assembly - PRESTIGE Solo 299/399 ()
