CHAPTER 8
CHAPTER 8 - EXTERNAL WIRING
DHWP3
L G N L G N L G N L G N L G N L G N L G N
FLAME PUMP 4 PUMP 3
DHW PUMP
CH PUMP
POWER SUPPLY
ALARM
FOUR ZONE SWITCHING RELAY
WITH OPTIONAL PRIORITY
MODE
RESET NOR MAL
SLAVE
MAST ER
FUSE 1 AMP
ON
OFF
ZONE 4
PRIORITY
ZONE4ZONE3ZONE2ZONE1
PLUG IN CARDS
1234
EXPANSION
INPUT
POWER
120 VOLT CIRCULATORS
ZONE4
ZONE3
ZONE 2ZONE1
ZRZC
X X
END
SWI TCH
120 VAC
INPUT
(H & N)
Low Voltage Terminals
Outdoor Sensor
Line Voltage Terminals
120V/15A
Service
DHW Sensor
CH2
Thermostat
6 5
System
Sensor
4 3
Modulation
Signal
-+
2 1
CH2
Thermosta
t
CH1
Thermostat
4 3
Outdoor
Sensor
2 1
DHW
Sensor or
Aquastat
2 1
Modbus
+ G -
3 2 1
X7X4
X6X5
External Limit
Terminals
Manual Auto
Mix Sensor
Terminals
Zone 2
Thermostat
68
Zone 1
Thermostat
68
Zone 3
Thermostat
68
Zone 2
Circulator
Zone 1
Circulator
Zone 3
Circulator

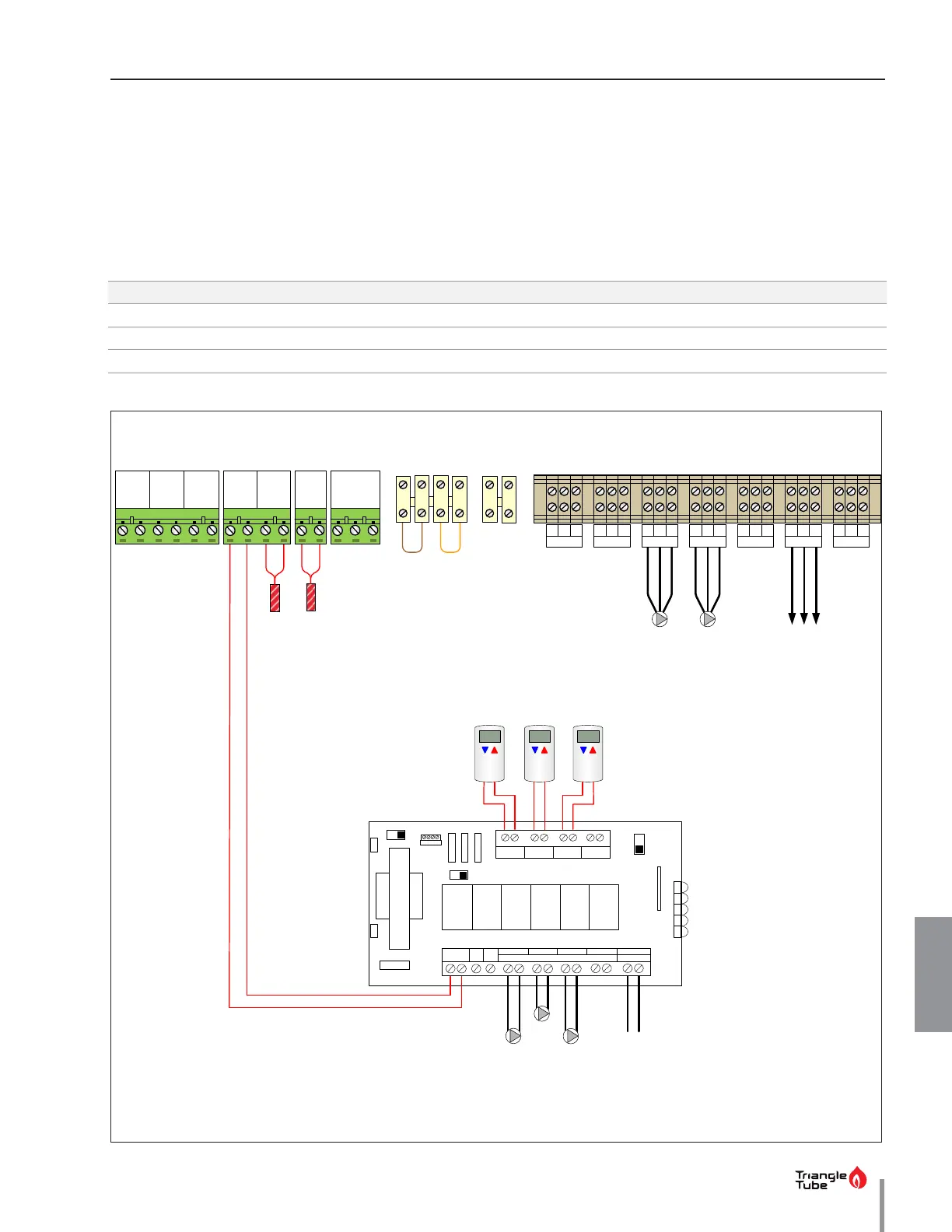

Fig. 25 - Typical Zone Panel Wiring to PRESTIGE with Zone Circulators
PRESET PUMP CONFIGURATION 4
Heat Call Pump 4 Pump 3 DHW Pump CH Pump
CH1 OFF ON OFF ON
CH2 ON ON OFF OFF
DHW OFF OFF ON OFF
