CHAPTER 18

CHAPTER 18 - REPLACEMENT PARTS

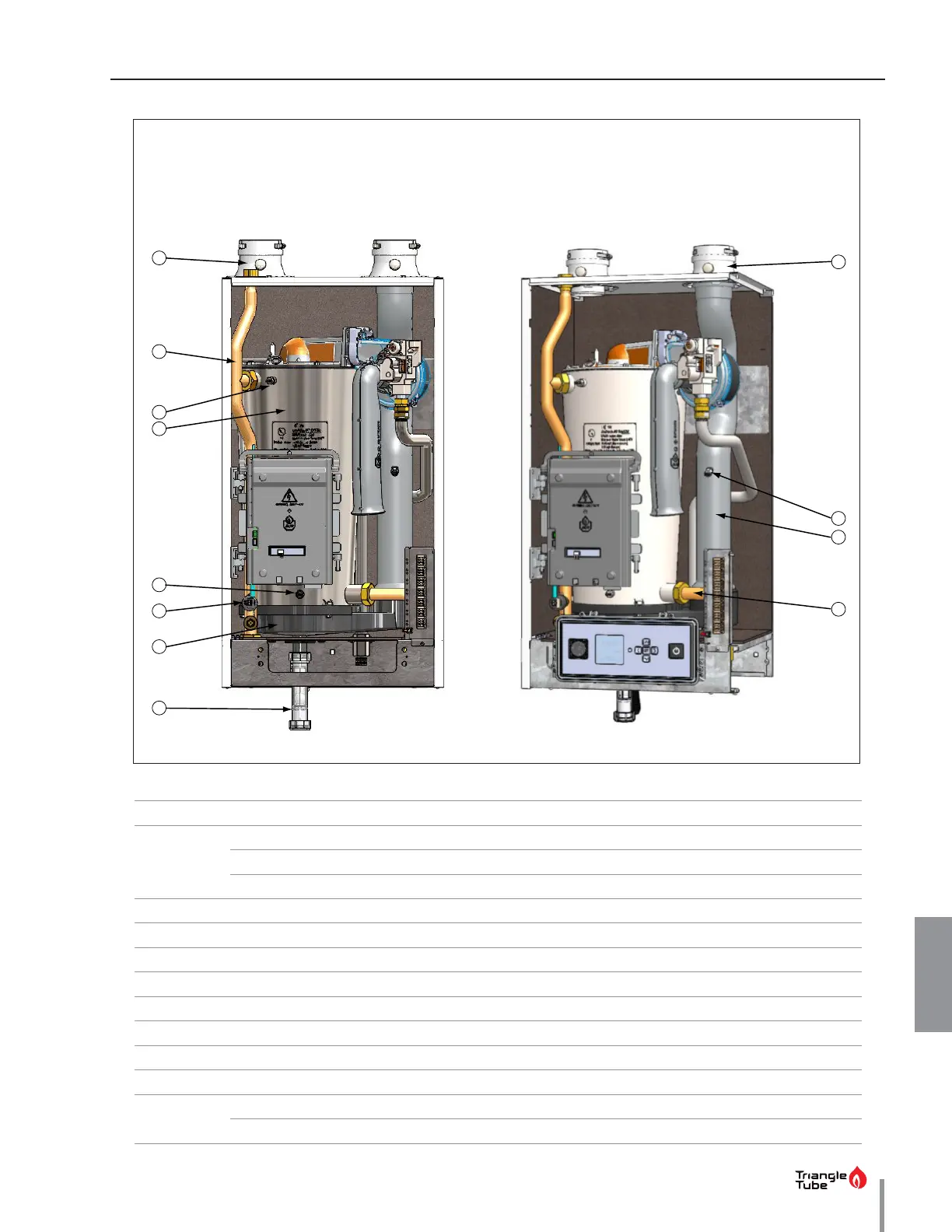

Fig. 31 - PRESTIGE Solo 155/175/250 Internal Components

Item Part # Description

PARKIT91 Heat Exchanger Body Solo 155

PARKIT92 Heat Exchanger Body Solo 175

PARKIT93 Heat Exchanger Body Solo 250

2 PTADPT07 Vent Outlet/Combustion Air Inlet Adapter

3 PARKIT08 Polypropylene Vent Pipe

4 PTRKIT122 Supply/Return Temperature Sensor

5 PARKIT01 Flue Temperature Sensor

6 PARKIT04 LWCO Pressure Sensor

7 PSRKIT05 Condensate Drain Assembly

8 PARKIT46 Boiler Piping - Return Assembly

9 PARKIT47 Boiler Piping - Supply Assembly

PARKIT43 Polypropylene Condensate Pan Solo 155

PTRKIT120 Polypropylene Condensate Pan Solo 175 & 250
