CHAPTER 4

CHAPTER 4 - BOILER PIPING

PRESET PUMP CONFIGURATION 3

Heat Call Pump 4 Pump 3 DHW Pump CH Pump

CH1 OFF ON OFF ON

CH2 OFF ON OFF ON

DHW OFF OFF ON OFF

Dry Contact

Zone Valve

End Switches

smart

DHW

Hot

DHW

Cold

Low Voltage Terminals

L G N L G N L G N L G N L G N L G N L G N

FLAME PUMP 4 PUMP 3

DHW PUMP

CH PUMP

POWER SUPPLY

ALARM

Outdoor Sensor

Line Voltage Terminals

DHW Sensor

CH2

Thermostat

6 5

System

Sensor

4 3

Modulation

Signal

2 1

CH2

Thermosta

CH1

Thermostat

4 3

Outdoor

Sensor

2 1

DHW

Sensor or

Aquastat

2 1

Modbus

+ G -

3 2 1

X7X4

X6X5

External Limit

Terminals

Manual Auto

Mix Sensor

Terminals

Z.V.

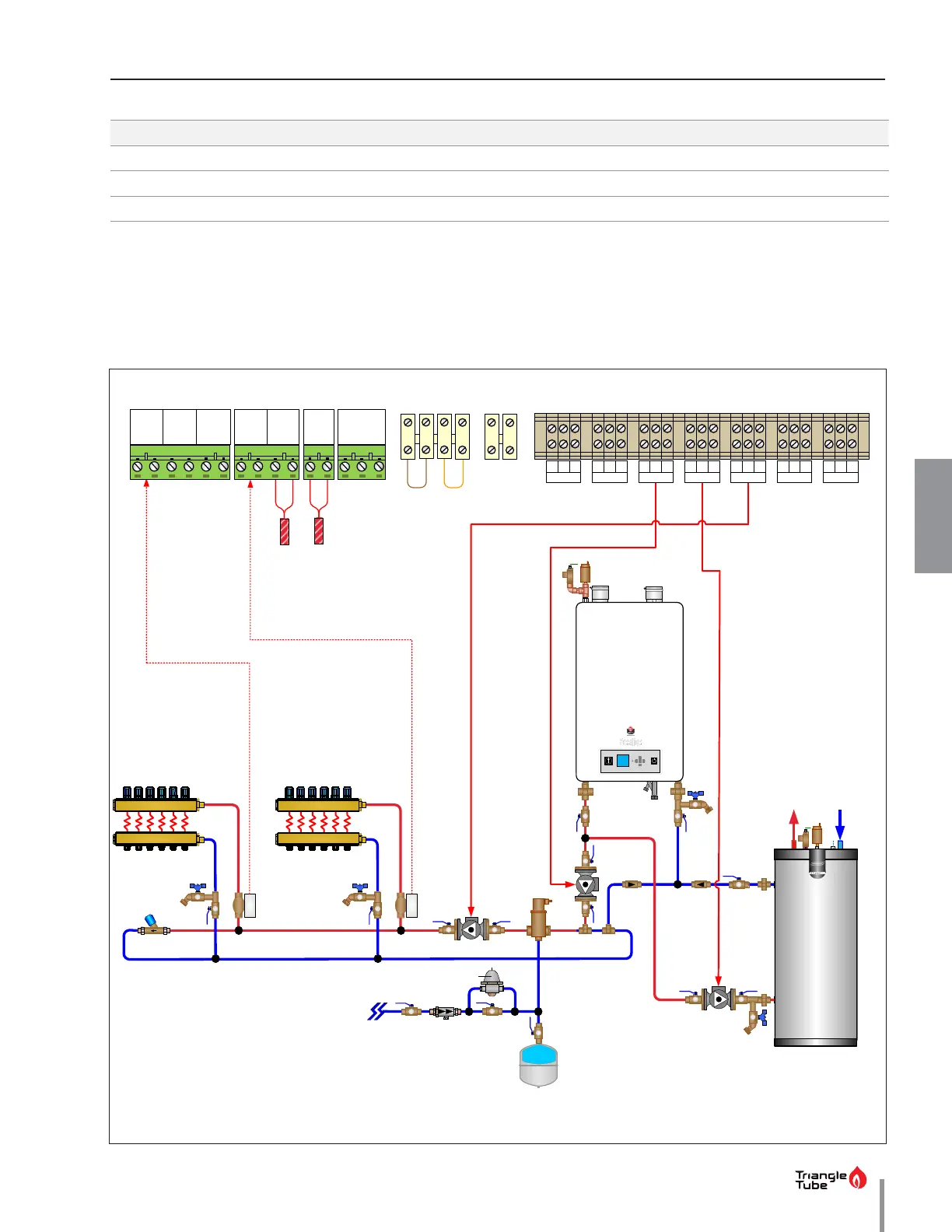

Fig. 10 - System Piping - Zoning with Zone Valves

Consult the PRESTIGE ACVMax Control Supplement for information on setting the re-

quired Preset Pump Configuration.

NOTICE
