CHAPTER 18

CHAPTER 18 - REPLACEMENT PARTS

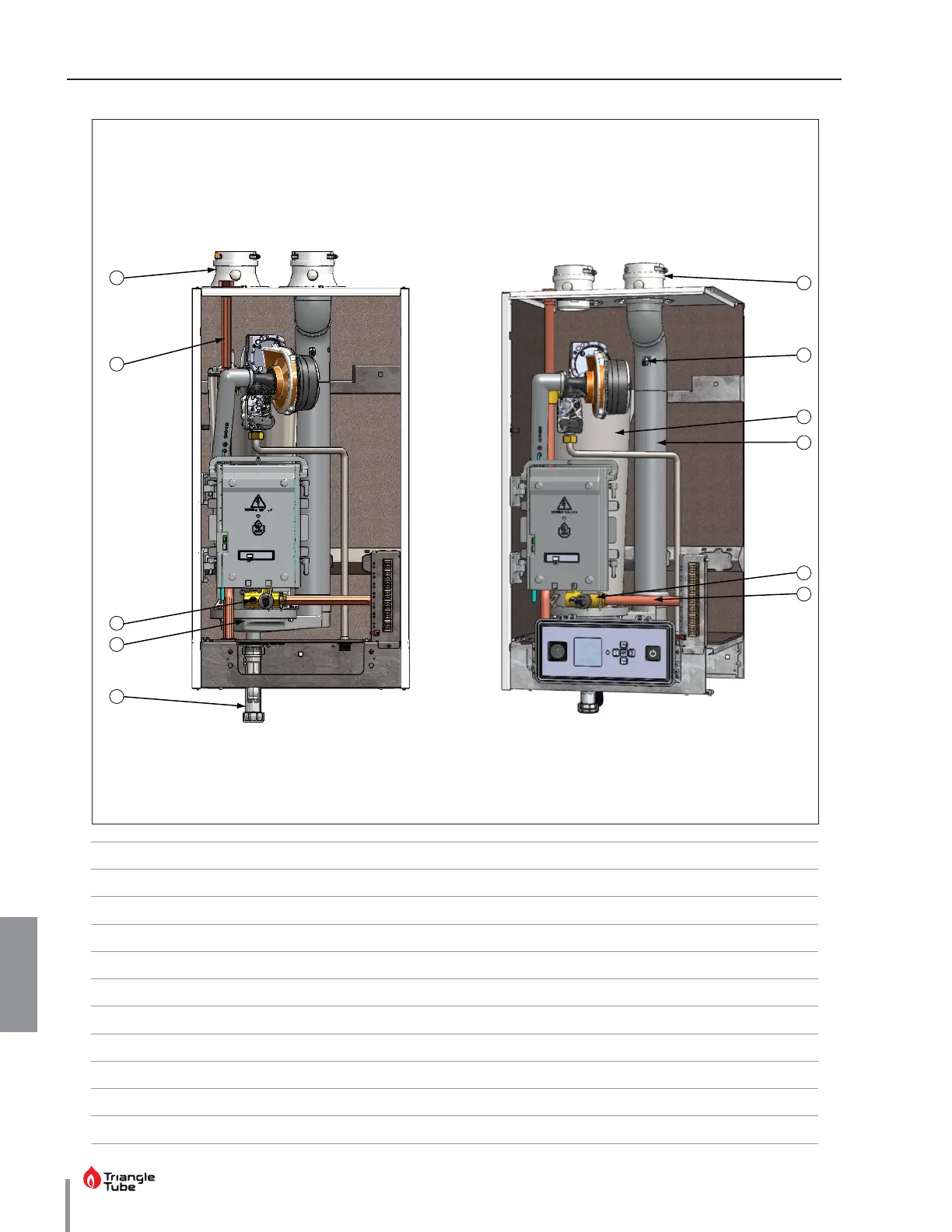

Fig. 30 - PRESTIGE Solo 80/110 Internal Components

Item Part # Description

1 PARKIT90 Heat Exchanger Body

2 PTADPT07 Vent Outlet/Combustion Air Inlet Adapter

3 PARKIT02 Polypropylene Vent Pipe

4 PTRKIT123 Supply/Return Temperature Sensor

5 PARKIT01 Flue Temperature Sensor

6 PARKIT04 LWCO Pressure Sensor

7 PARKIT05 Condensate Drain Assembly

8 PARKIT06 Boiler Piping - Return Assembly

9 PARKIT07 Boiler Piping - Supply Assembly

10 PTRKIT119 Polypropylene Condensate Pan 80/110
