CHAPTER 19

CHAPTER 19 - PRODUCT SPECIFICATIONS

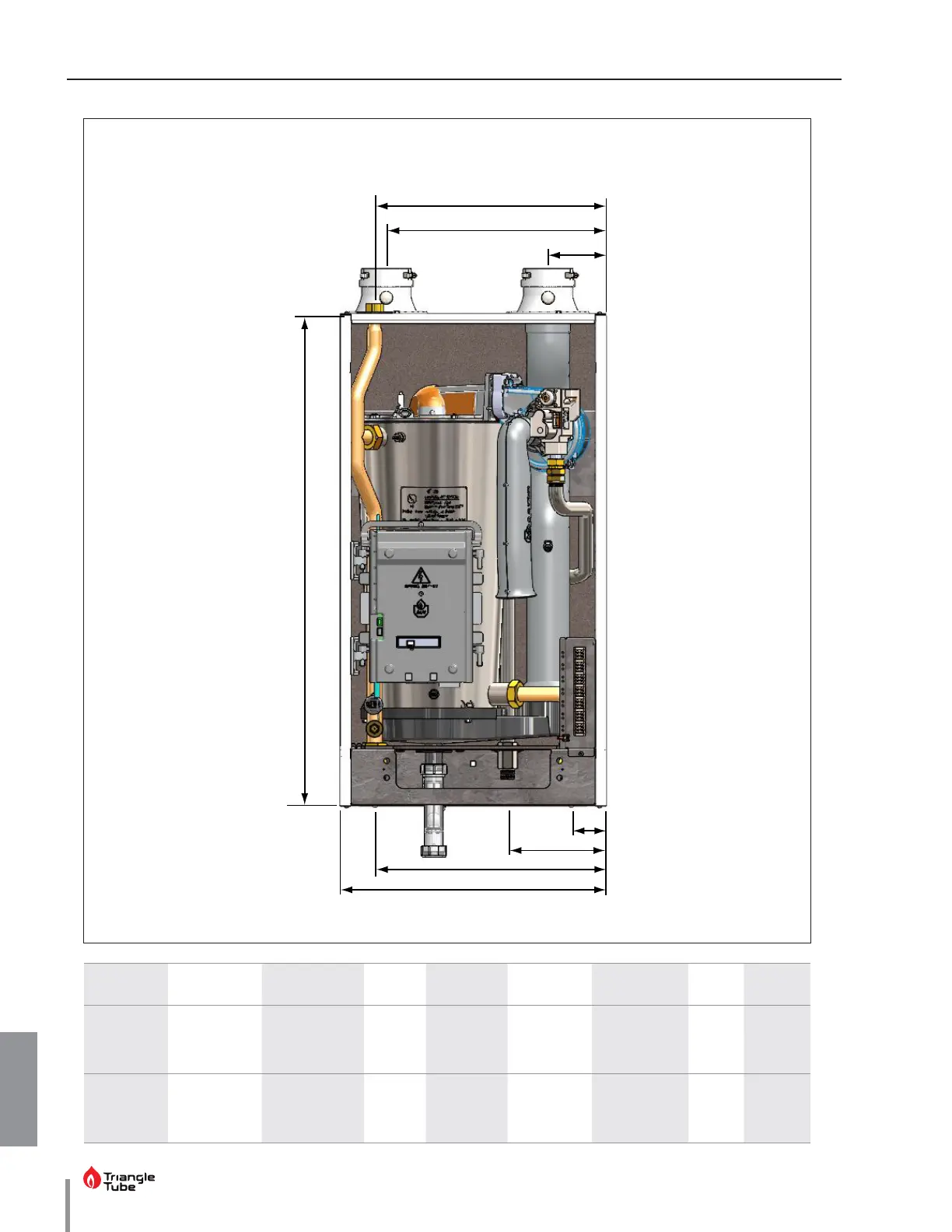

Fig. 41 - Front View PRESTIGE Solo 155/175/250

A B C D E F G H

Connection

3/4” NPSC Pres-

sure Relief Valve

3” Combustion Air

Inlet

3” Vent

Outlet

1-1/4” NPT

Boiler Return

3/4” NPT Gas

Connection

1-1/4” NPT Boiler

Supply

Boiler

Width

Boiler

Height

Dimension

in [mm]

17”

[432]

16-5/16”

[415]

4-5/16”

[110]

2-9/16”

[65]

7-5/16”

[186]

17”

[432]

19-3/4”

[502]

36-9/16”

[928]
