CHAPTER 4

CHAPTER 4 - BOILER PIPING

PRESET PUMP CONFIGURATION 1

Heat Call Pump 4 Pump 3 DHW Pump CH Pump

CH1 OFF ON OFF ON

CH2 ON ON OFF OFF

DHW OFF ON ON OFF

smart

DHW

Hot

DHW

Cold

Low Voltage Terminals

L G N L G N L G N L G N L G N L G N L G N

FLAME PUMP 4 PUMP 3

DHW PUMP

CH PUMP

POWER SUPPLY

ALARM

Outdoor Sensor

Line Voltage Terminals

DHW Sensor

CH2

Thermostat

6 5

System

Sensor

4 3

Modulation

Signal

2 1

CH2

Thermosta

CH1

Thermostat

4 3

Outdoor

Sensor

2 1

DHW

Sensor or

Aquastat

2 1

Modbus

+ G -

3 2 1

X7X4

X6X5

External Limit

Terminals

Manual Auto

Mix Sensor

Terminals

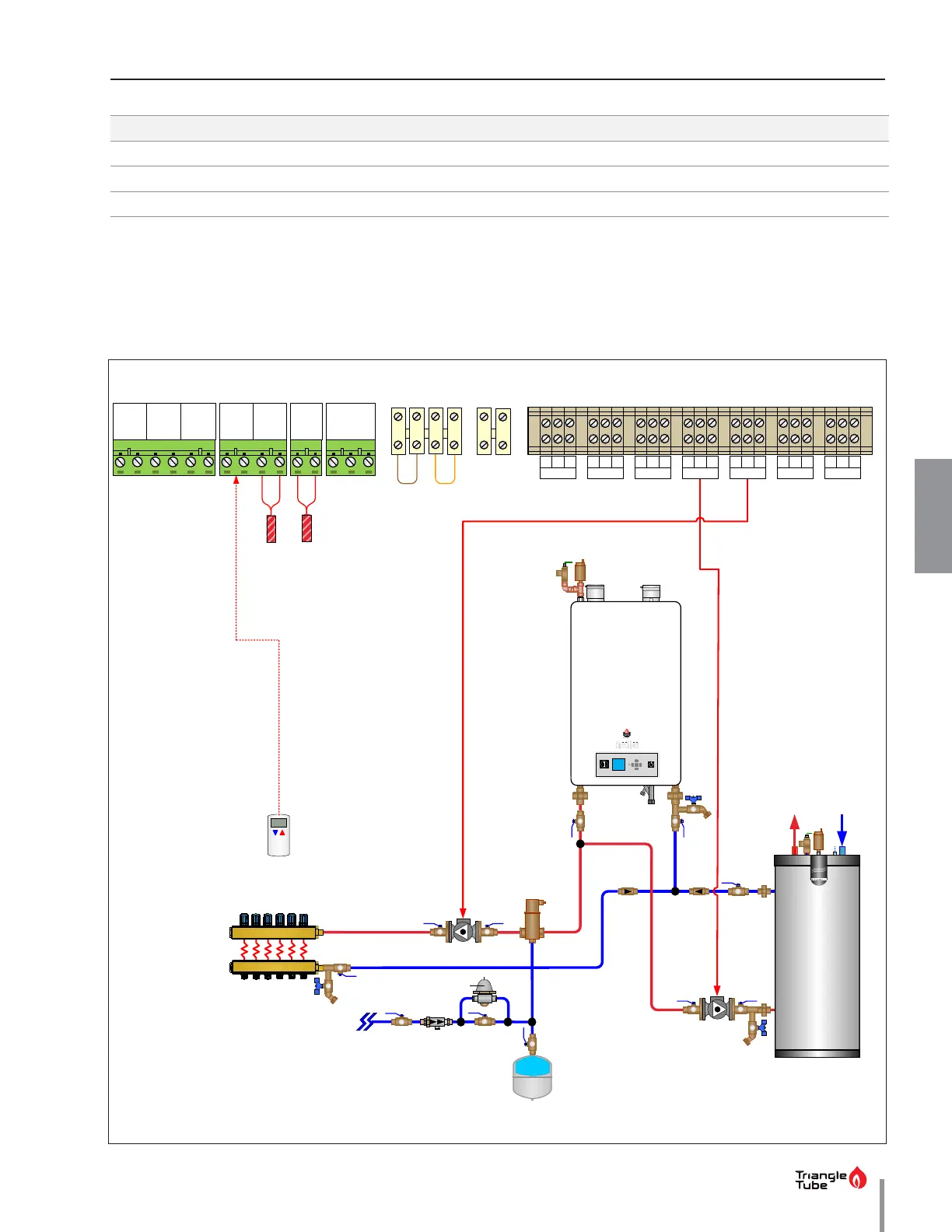

Fig. 12 - System Piping - Single Zone System with Single System/Boiler Circulator

Consult the PRESTIGE ACVMax Control Supplement for information on setting the re-

quired Preset Pump Configuration.
