CHAPTER 18

CHAPTER 18 - REPLACEMENT PARTS

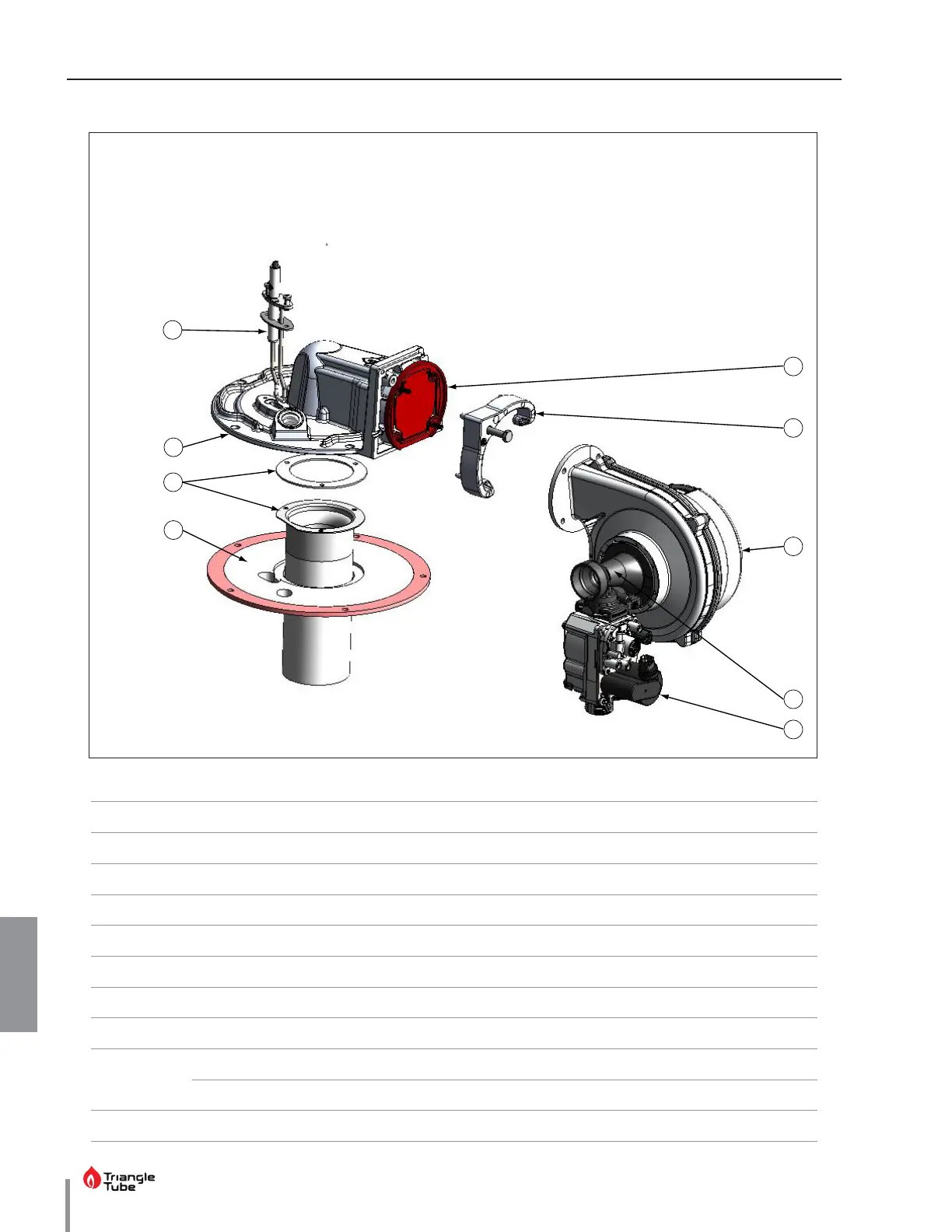

Fig. 34 - PRESTIGE Solo 80/110 Burner Components

Item Part # Description

1 PARKIT12 Combustion Chamber 2-in-1 Insulation

2 PARKIT14 Burner Head Assembly (with Gasket)

3 PARKIT11 Blower Assembly (with Gasket)

4 PARKIT18 Blower Clamp

5 PARKIT19 Blower Gasket

6 PARKIT15 Burner Plate Assembly

7 PARKIT17 Gas Valve

PARKIT10 Venturi - Solo 80 (025)

PARKIT20 Venturi - Solo 110 (040)

9 PARKIT16 Igniter Assembly
