CHAPTER 18

CHAPTER 18 - REPLACEMENT PARTS

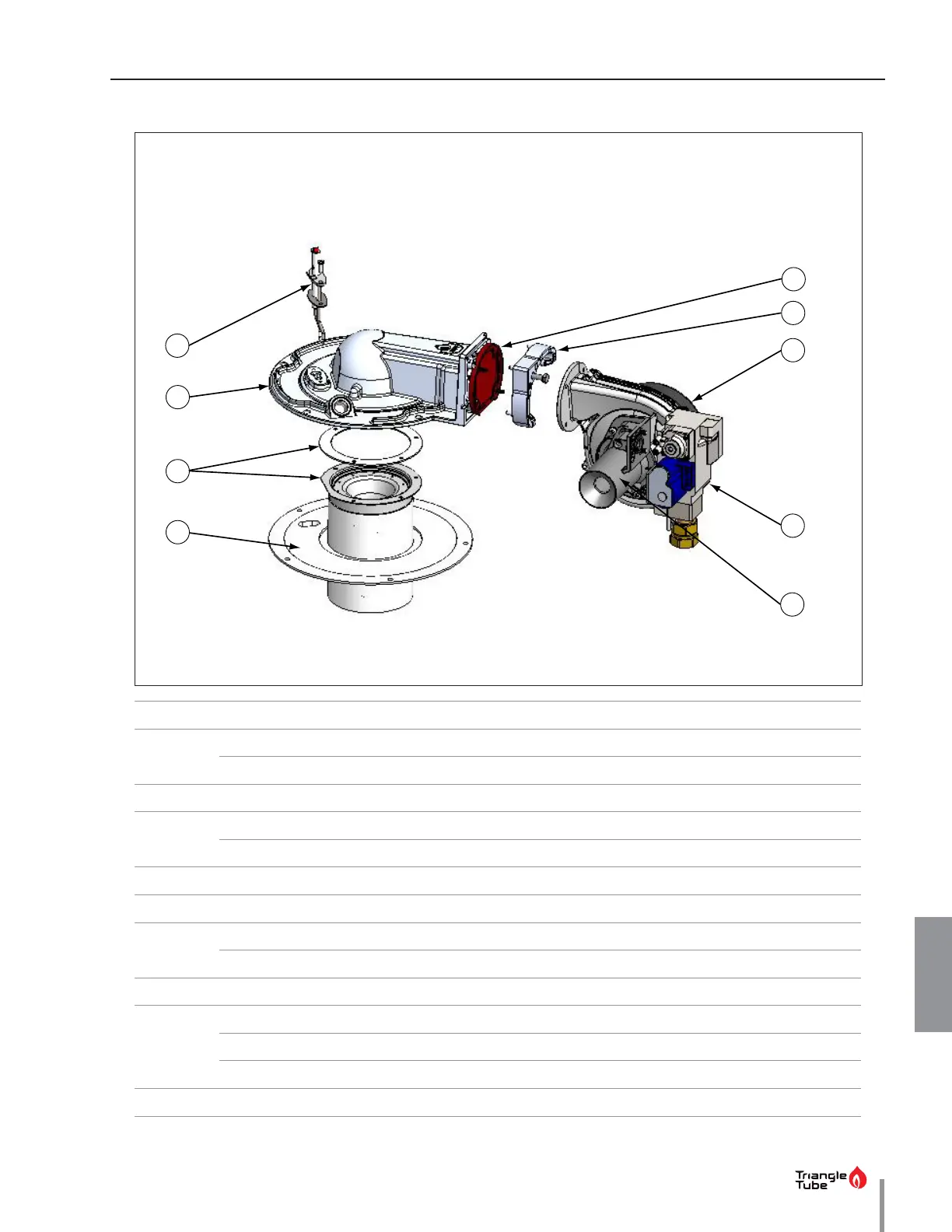

Fig. 35 - PRESTIGE Solo 155/175/250 Burner Components

Item Part # Description

PARKIT42 Combustion Chamber 2-in-1 Insulation - Solo 155

PARKIT52 Combustion Chamber 2-in-1 Insulation - Solo 175 & 250

2 PARKIT54 Burner Head Assembly (with Gasket)

PARKIT51 Blower Assembly (with Gasket) - Solo 155 & 175

PARKIT70 Blower Assembly (with Gasket) - Solo 250

4 PARKIT18 Blower Clamp

5 PARKIT19 Blower Gasket

PARKIT45 Burner Plate Assembly - Solo 155

PARKIT55 Burner Plate Assembly - Solo 175 & 250

7 PTRKIT111 Gas Valve

PSRKIT81 Venturi - Solo 155 (002)

PARKIT40 Venturi - Solo 175 (001)

PSRKIT83 Venturi - Solo 250 (051)

9 PARKIT56 Igniter Assembly
