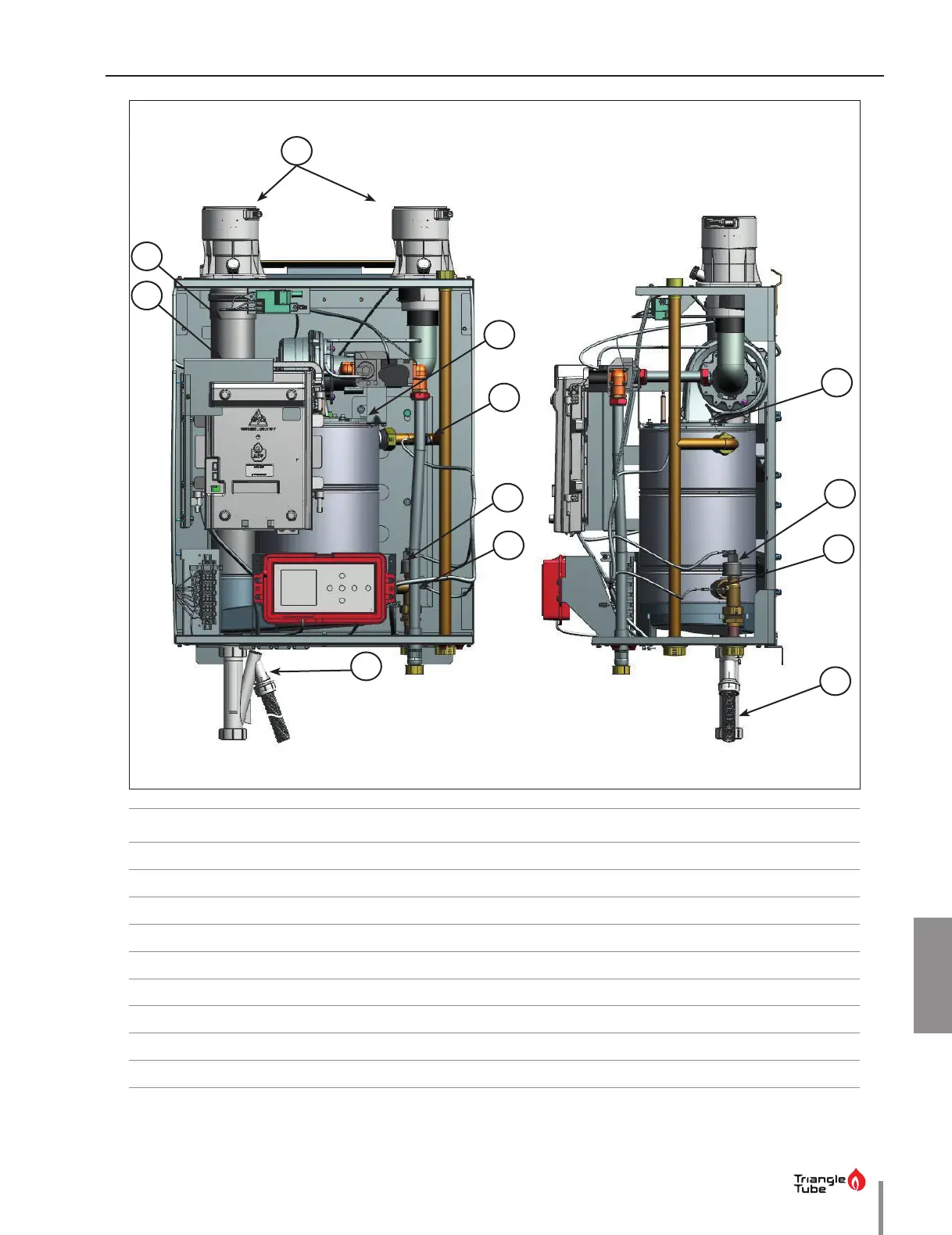

Fig. 37 - INSTINCT Solo 110 Internal Components

CHAPTER 18

CHAPTER 18 - REPLACEMENT PARTS

Item Part # Description

1 INSRKIT40 Vent Outlet/Combustion Air Inlet Adapter

2 INSRKIT01 Heat Exchanger Body (110)

2 INSRKIT03 Heat Exchanger Body (199)

3 PTRKIT122 CH Supply Temperature Sensor

4 PARKIT04 Low Water Cut O

5 PTRKIT122 CH Return Temperature Sensor

6 PARKIT05 Condensate Drain Assembly

7 INSRKIT41 Flue Tube

8 PTRKIT123 Flue Temperature Sensor
