CHAPTER 5

CHAPTER 5 - INSTINCT COMBI UNITS - DOMESTIC PIPING

PRESET PUMP CONFIGURATION 5 - INSTINCT COMBI UNITS

Heat Call Flame CH Pump DHW Pump

CH1 ON ON OFF

CH2 ON ON OFF

DHW OFF ON ON

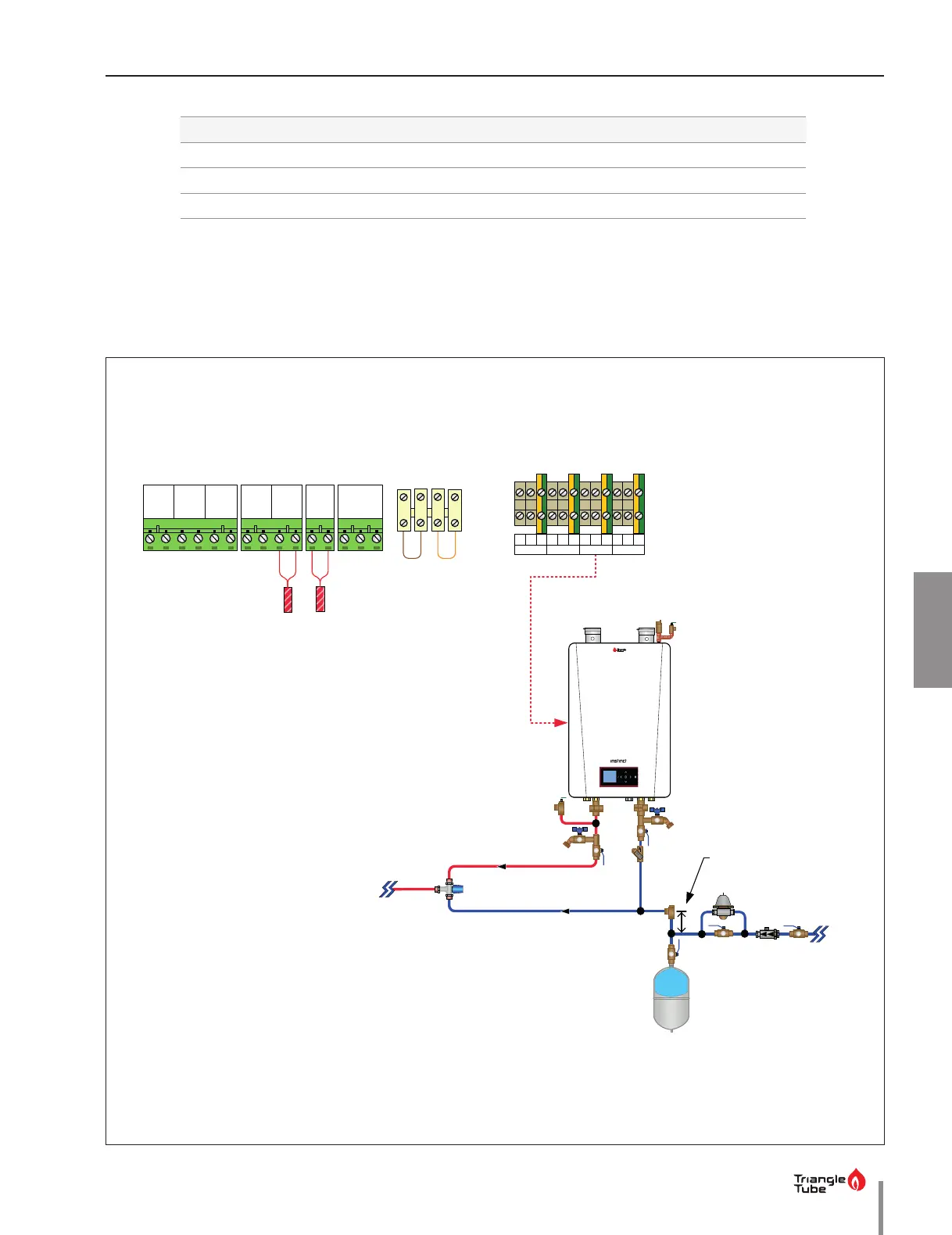

Fig. 17 - INSTINCT Combi System Piping - Single Zone System with Single System/Boiler Circulator

Consult the INSTINCT CTRLMax Control Supplement for information on setting the re-

quired Preset Pump Configuration.

NOTICE

Low Voltage Terminals

Outdoor Sensor

DHW Sensor

CH2

Thermostat

6 5

System

Sensor

4 3

Modulation

Signal

2 1

CH2

Thermosta

CH1

Thermostat

4 3

Outdoor

Sensor

2 1

DHW

Sensor or

Aquastat

2 1

Modbus

+ G -

3 2 1

X7X4

X6X5

External Limit

Terminals

Manual Auto

DHW

Outlet

12" min

Heat Trap Loop

(Optional)

Line Voltage Terminals

L N G L N G L N G L N G

FLAME POWER SUPPLY

CH PUMP

DHW PUMP

12" min Heat Trap

Loop (Optional)

Line Voltage Terminals
