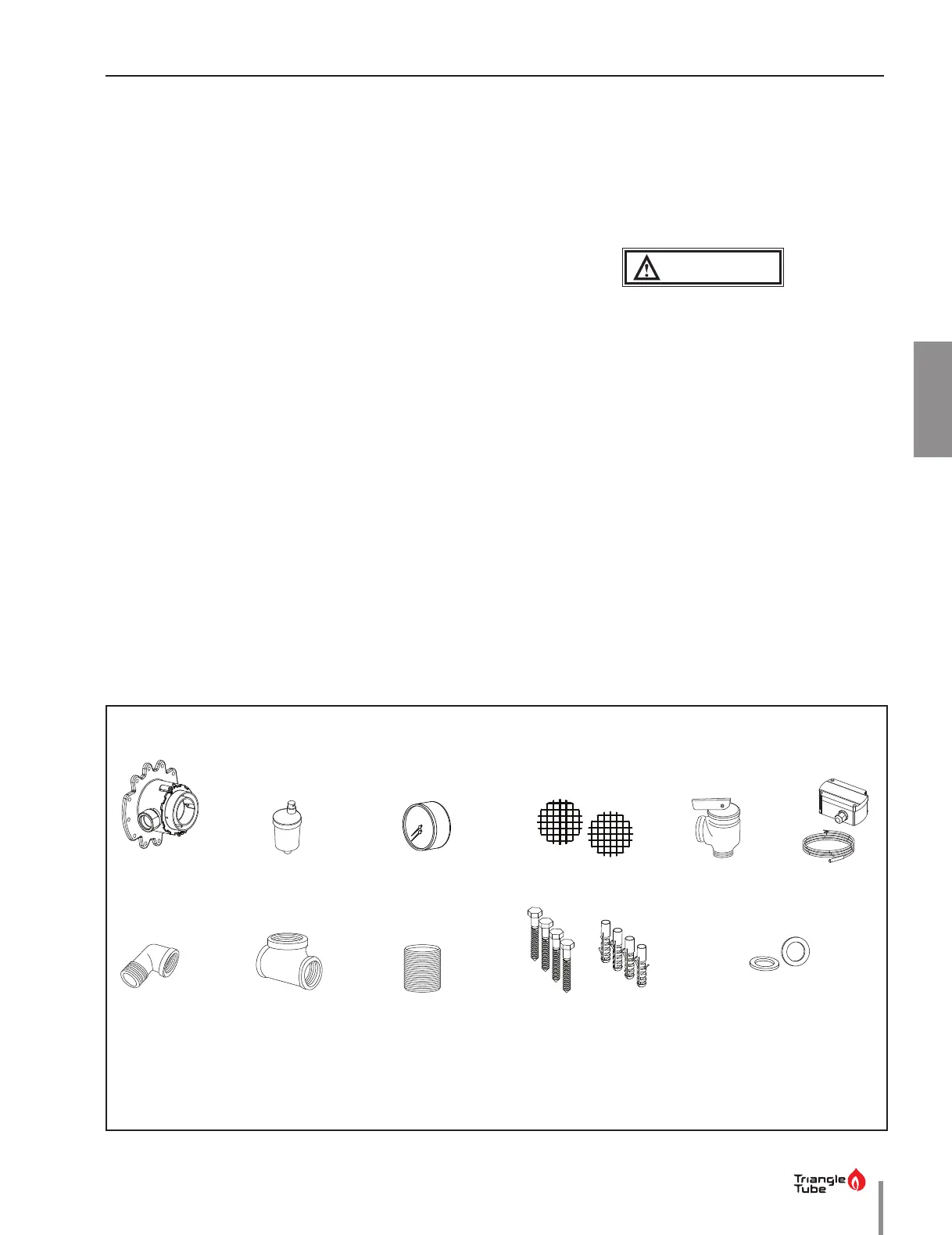

Fig. 5 - Accessory Box Contents
Venturi
3/4" Elbow
Auto Air Vent
Reduced Tee
Pressure Gauge
Union
Bird Screens (x2)
Screws (x4) / Anchors (x4)
Pressure Relief Valve Sensor DHW
Gas Valve to Venturi Gaskets (x2)
13
CHAPTER 3
CHAPTER 3 - UNIT PREPARATIONS
3.1. Handling Instructions
The INSTINCT is generally easier to handle and maneu-
ver once removed from the shipping carton.
To remove the shipping carton:
Use care not to drop, bump or rotate the boiler
upside down, as damage to the boiler will result.
1. Remove any shipping straps.
2. Slide the cardboard sleeve from the unit.
3. Remove the wall mounting template.
4. Remove the accessory boxes.
5. Remove upper and lower cardboard end pieces.
6. Remove the boiler from the cardboard tray.
7. Discard all packing materials and recycle where
possible.
NOTICE
3.2. Wall Mounting Installation
The INSTINCT should be wall mounted using the wall
mounting template and bracket provided with the boil-
er. The INSTINCT is not designed for oor installation.
The INSTINCT is not to be installed on carpeting
The wall used for mounting the INSTINCT
must be vertically plumb and capable of sup-
porting at minimum:
• 101 pounds [46 kg] for the INSTINCT Solo 110
• 137 pounds [62 kg] for the INSTINCT Solo 155
• TBC pounds [TBC kg] for INSTINCT Solo 199
• 154 pounds [70 kg] for INSTINCT Combi 155
• TBC pounds [TBC kg] for INSTINCT Combi 199
Note. All weights above include INSTINCT
water volumes.
Failure to comply with these requirements
can result in substantial property damage,
serious injury, or death.
3.3. Accessory Box
Unpack and check the the list of all accessories as
shown in Fig. 5 below.
