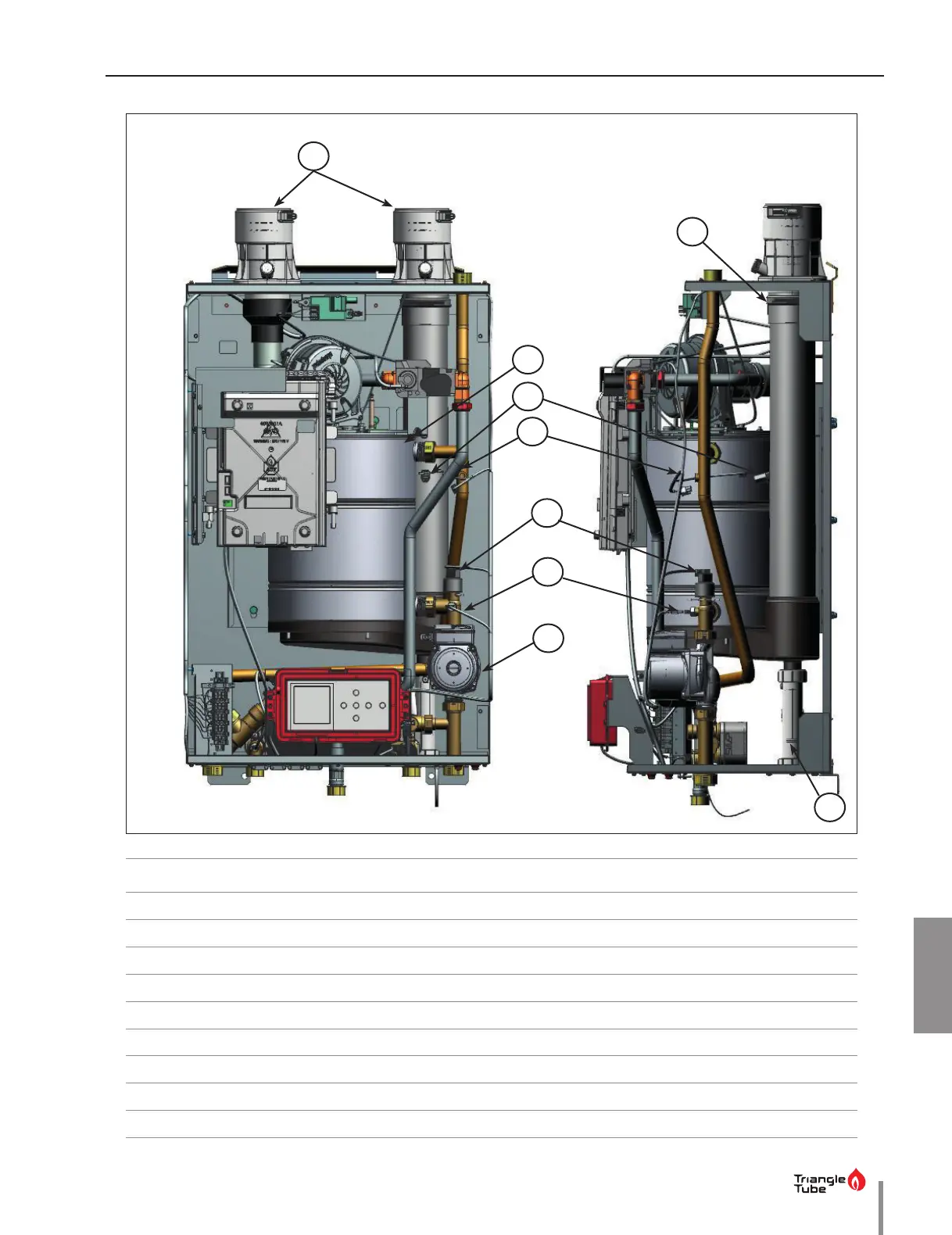

Fig. 39 - INSTINCT Combi 155 Internal Components

CHAPTER 18

CHAPTER 18 - REPLACEMENT PARTS

Item Part # Description

1 INSRKIT40 Vent Outlet/Combustion Air Inlet Adapter

2 INSRKIT02 Heat Exchanger Body

3 PTRKIT122 CH Supply Temperature Sensor

4 PARKIT04 Low Water Cut O

5 PTRKIT122 CH Return Temperature Sensor

6 PARKIT05 Condensate Drain Assembly

7 INSRKIT41 Flue Tube

8 PARKIT24

Circulator

9 PTRKIT123

Flue Temperature Sensor
