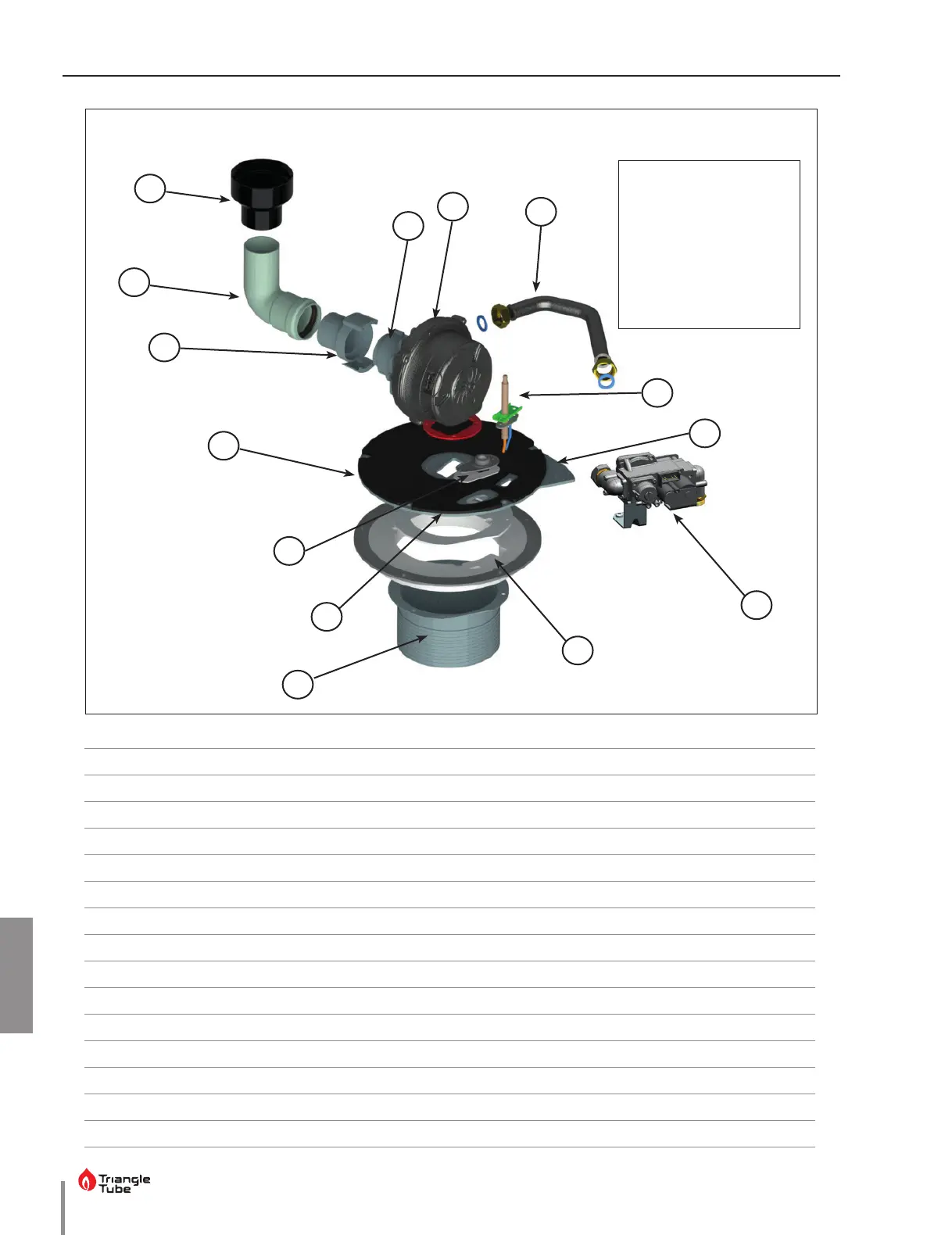

Fig. 42 - INSTINCT Solo/Combi 155 Burner Components

CHAPTER 18

CHAPTER 18 - REPLACEMENT PARTS

Item Part # Description

1 INSRKIT04 Blower Assembly

2 INSRKIT27 Igniter Assembly

3 INSRKIT31 Burner Plate Insulation

4 PSRKIT16 Sight Glass Assembly

5 INSRKIT15 Burner Plate

6 INSRKIT19 Combustion Chamber 2-in-1 Insulation

7 INSRKIT25 Burner Head Assembly

8 INSRKIT09 NG Venturi

8 INSRKIT10

LP Venturi

9 INSKIT16

Gas Valve

10 INSRKIT13

Venturi Air Inlet

11 INSRKIT74

Air Inlet Elbow

12 INSRKIT75

Air Inlet Adapter

13 INSRKIT76

Venturi Gas Inlet Pipe

It is essential to ensure

during installation, main-

tenance or repair that

items 12, 11 and 10 are

correctly tted between

the blower and inlet

adaptor. Failure to ensure

correct tting may result

in serious injury, or death.
