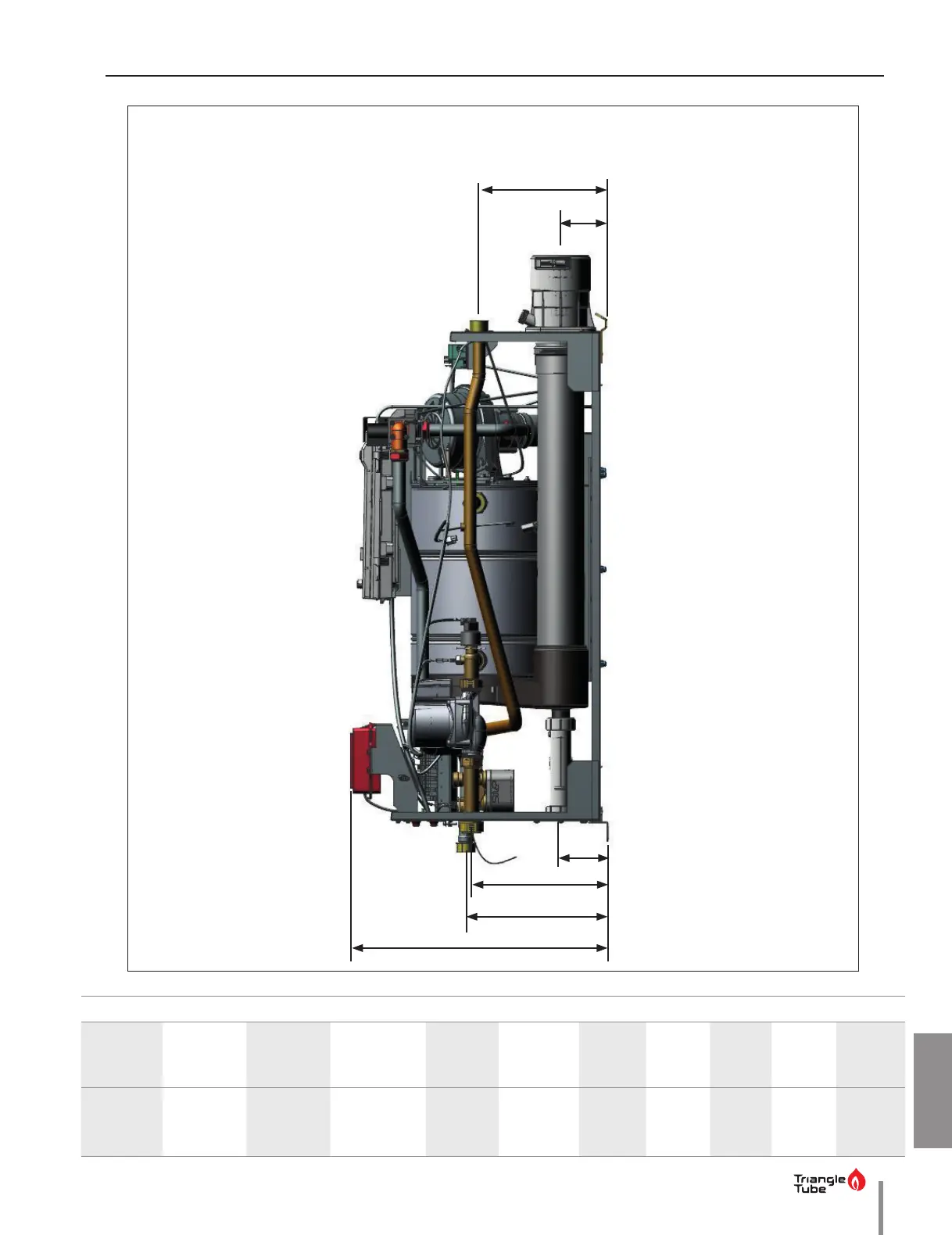

Fig. 53 - Right Side View INSTINCT Combi 155

O,Q,T,U

109

CHAPTER 19

CHAPTER 19 - PRODUCT SPECIFICATIONS

M N O P Q R S T U

Items

3/4" Pressure

Relief Valve

3" Combustion

Air Inlet & 3"

Vent Outlet

1" NPT Boiler

Return

Condensate

Drain

1" NPT Boiler

Supply

3/4" NPT

Gas Con-

nection

Boiler

Depth

DHW Inlet

DHW

Outlet

Dimension

inches

[mm]

8 /

[218.5]

3 /

[80.3]

8 /

[213.4]

[73.7]

8 /

[213.4]

9 /

[240.8]

17 /

[436.5]

8 /

[213.4]

8 /

[213.4]
