To Next Page

To Previous Page

Dry Contact

Zone Valve

End Switches

Low Voltage Terminals

Outdoor Sensor

Line Voltage Terminals

DHW Sensor

CH2

Thermostat

6 5

System

Sensor

4 3

Modulation

Signal

2 1

CH2

Thermosta

CH1

Thermostat

4 3

Outdoor

Sensor

2 1

DHW

Sensor or

Aquastat

2 1

Modbus

+ G -

3 2 1

X7X4

X6X5

External Limit

Terminals

Manual Auto

Z.V.

L N G L N G L N G L N G

FLAME POWER SU PPLY

CH PUMP

DHW PUMP

CHAPTER 4

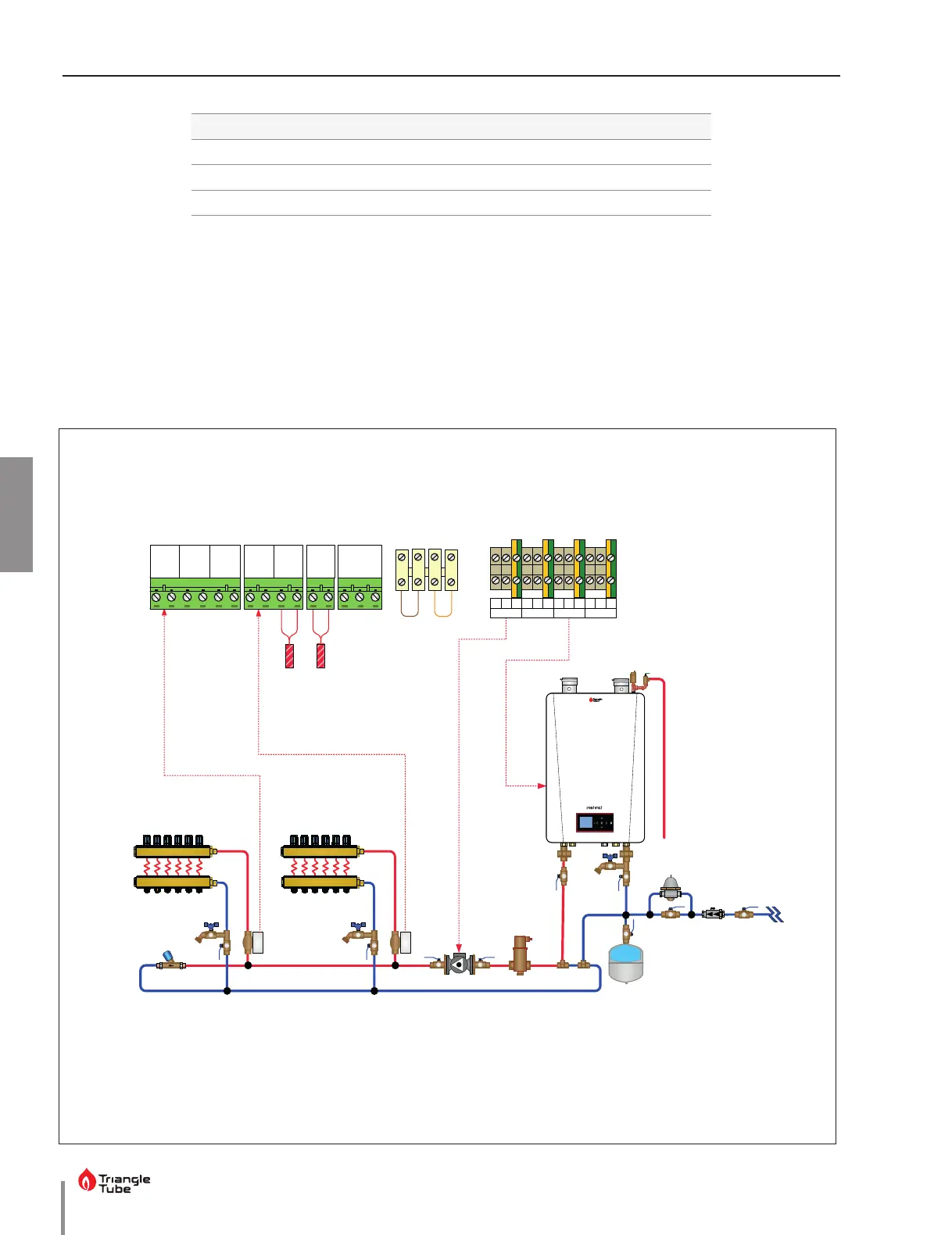

Fig. 12 - INSTINCT Combi System Piping - Zoning w Valves

• Consult the INSTINCT CTRLMax Control Supplement for information on setting the

required Preset Pump Configuration.

NOTICE

PRESET PUMP CONFIGURATION INSTINCT COMBI

Heat Call DHW Pump CH Pump Flame

CH1 OFF ON ON

CH2 OFF ON ON

DHW ON ON OFF

CHAPTER 4 - BOILER PIPING

Outdoor Sensor

Dry Contact

Zone Valve

End Switches

DHW Sensor

Manual Auto

Low Voltage Terminals

Line Voltage Terminals

External Limit

Terminals
