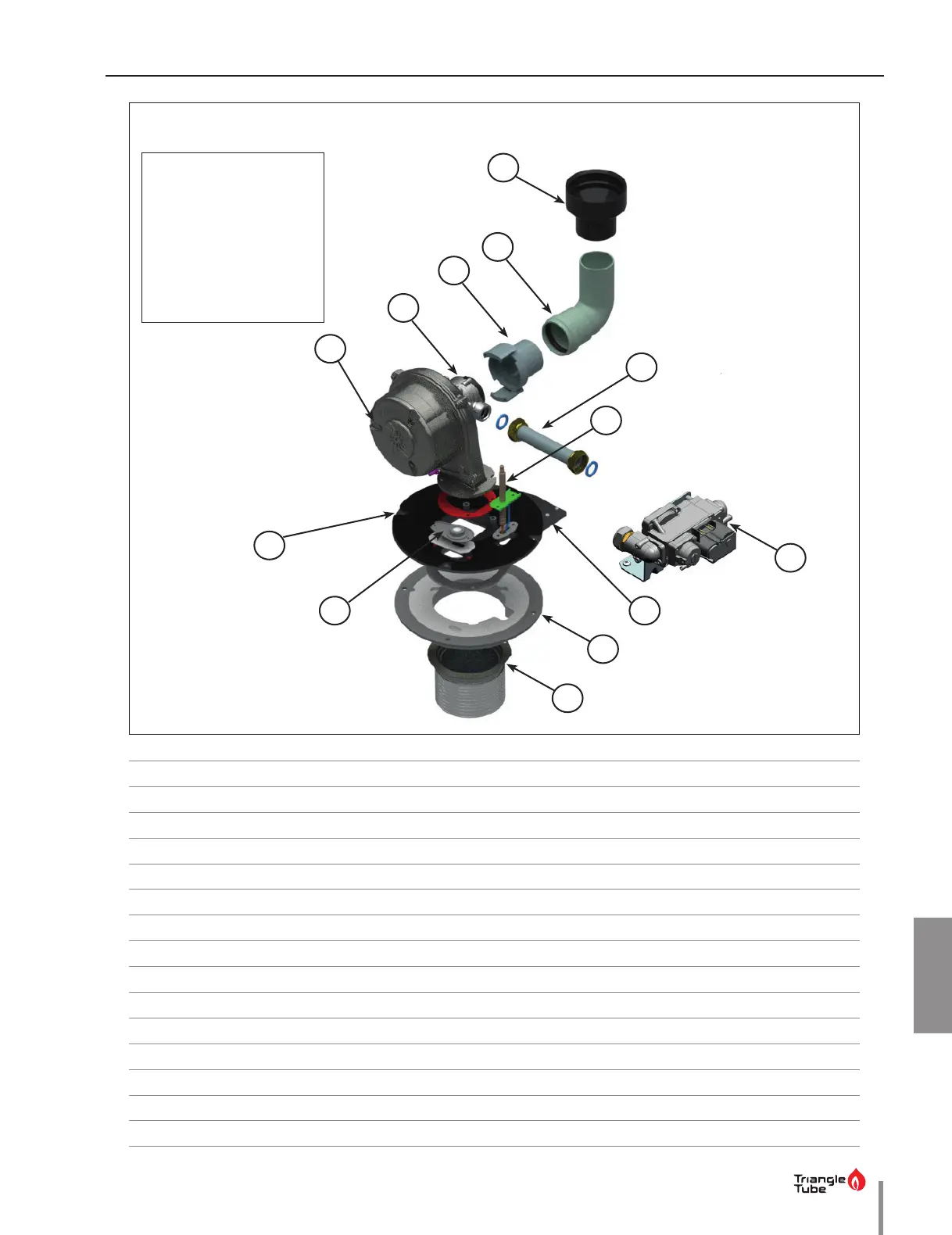

Fig. 41 - INSTINCT Solo 110 Burner Components

CHAPTER 18

CHAPTER 18 - REPLACEMENT PARTS

Item Part # Description

1 INSRKIT04 Blower Assembly

2 INSRKIT06 Gas Valve

3 INSRKIT07 NG - Venturi

3 INSRKIT08 LP - Venturi

4 INSRKIT14 Burner Plate

5 INSRKIT18 Combustion Chamber 2-in-1 Insulation

6 INSRKIT24 Burner Head Assembly

7 INSRKIT27 Igniter Assembly

8 PSRKIT16 Sight Glass Assembly

9 INSRKIT30 Burner Plate Insulation

10 INSRKIT13 Venturi Air Inlet

11 INSRKIT74 Air Inlet Elbow

12 INSRKIT75 Air Inlet Adapter

13 INSRKIT76 Venturi Gas Inlet Pipe

It is essential to ensure

during installation, main-

tenance or repair that

items 12, 11 and 10 are

correctly tted between

the blower and inlet

adaptor. Failure to ensure

correct tting may result

in serious injury, or death.
