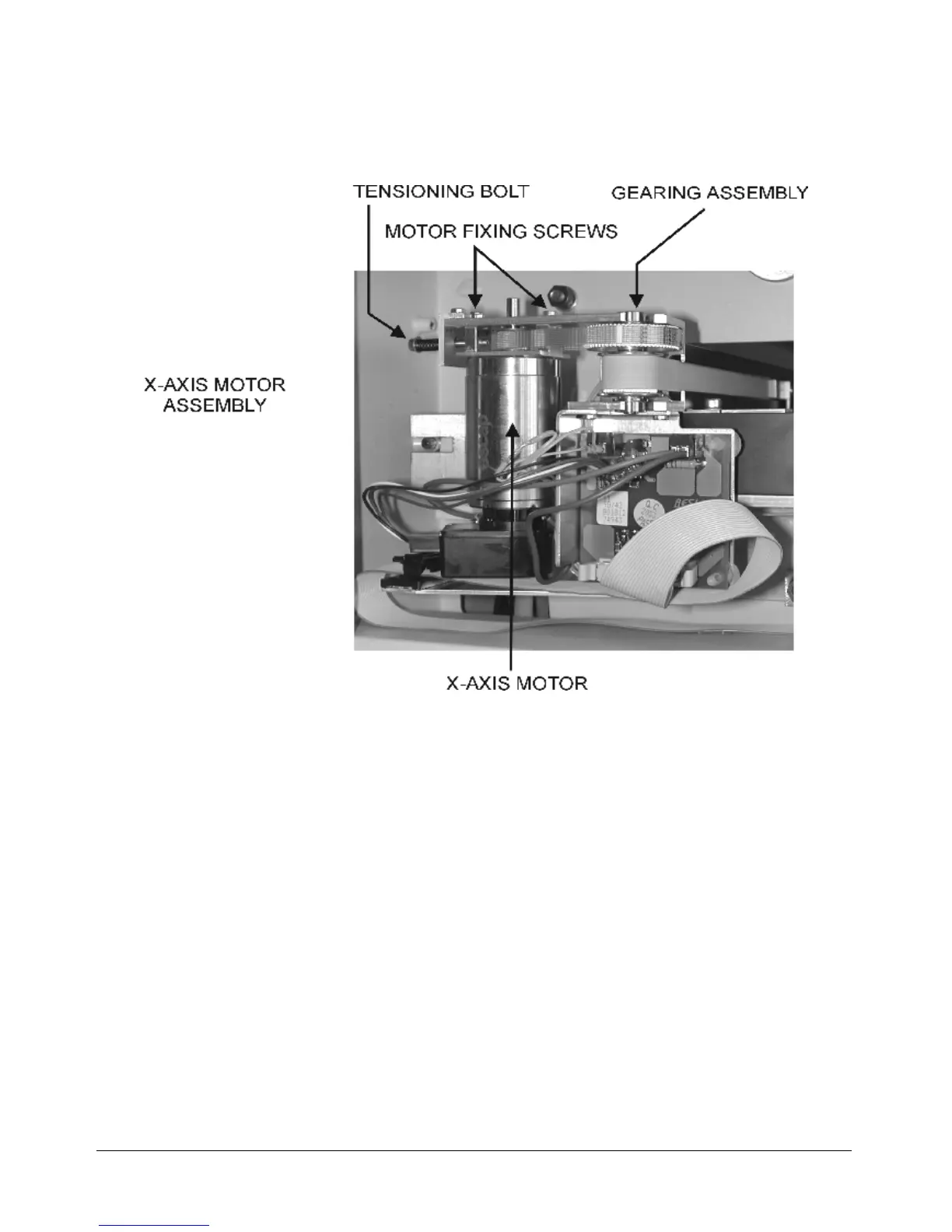

Fig. 3
9. Now the GEARING ASSEMBLY can be removed.
10. Assembling the system is reversed.
Be carefull to bring the MOTOR TENSIONING SCREWS, TENSIONING WEDGE
and TENSIONING BOLTS in their marked position to ensure correct belt tensioning.
The TENSIONING BOLTS must not touch the belt!!
Re- tension of belts is very important to attain good engraving results.
Attention: Do not overtight screws !!
