4. Laser pointer adjustment
Attention: To do the laser pointer adjustment it is absolutely necessary to wear laser
protection glasses!
What you need:
laser protection glasses
the toolbox enclosed to your engraver
a philips screwdriver
adhesive tape
What you have to know:
The alignment is done while your machine is running. To make sure the system
works at a suitable power level switch your machine of and on again.
The laser beam is invisible. To make it visible, you use adhesive tape. It is burned at
the spot, where it is hit by the laser beam and shows so a mark.
The tolerable displacement (distance from burned dot to the centre) is one sixth of
the diameter of the mirror or hole where you do the adjustment.

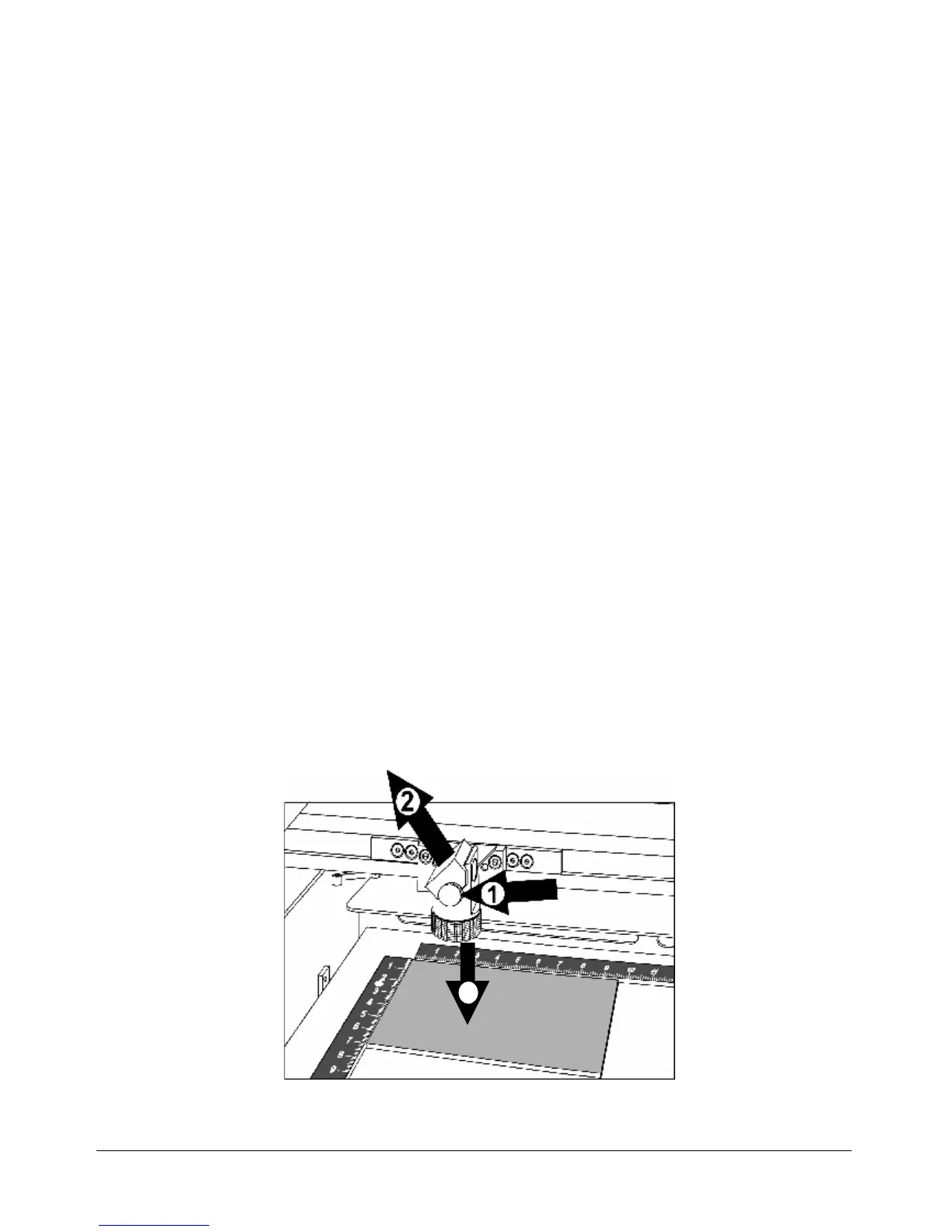

1.) After you´ve installed the laser pointer glue some paper tape on the beam
entrance hole of the engraving head (first remove the last mirror and the lens).
3
