I N D I V I D U A L M A R K I N G S Y S T E M S
8. Repeat step 6, but this time try to hit the spot that you´ve created first.
9. Repeat steps 5 to 8 until the two spots are exactly at the same place.
10. If the spot is not centered bring it to the center by moving the slider of mirror#1.
11. Replace mirror #2.

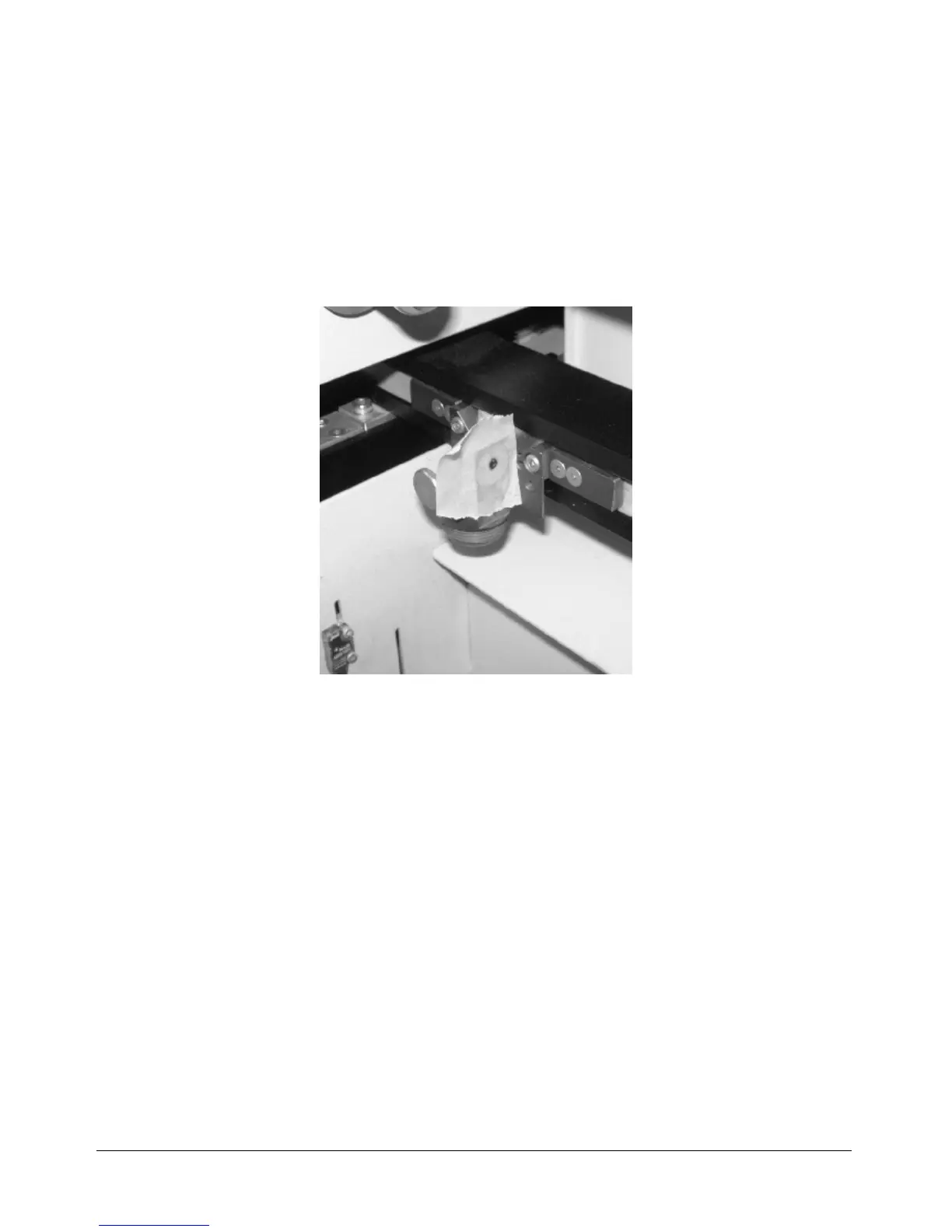

12. Put a piece of masking tape on the hole in front of mirror #3.
checking the beam position at mirror #3
13. Move the engraving head to the top right corner.
14. Again press the test button, keep it pressed and then press the service button
until you see a little mark on the adhesive tape.
15. Move the engraving head to the top left corner and adjust the two brass screws at
mirror #2 until you hit the spot created in step 14.
16. Repeat steps 13 to 15 to check the position. If necessary readjust mirror #2.
17. Move the x-axis to the bottom position and check the alignment on the bottom left
position. If necessary do small corrections at mirror #1.
18. At the end check alignment on all four corners.
19. Assemble all parts again.
20. Now your engraver is aligned properly.
