NORMAL.DOT Gespeichert in:G:\Support\Dokumentationen_CDs\8003Speedy\Service Manual\Servicemanual 8003.doc Gespeichert am:2003/03/10
max Version 14
Seite 62 von 87
I N D I V I D U A L M A R K I N G S Y S T E M S

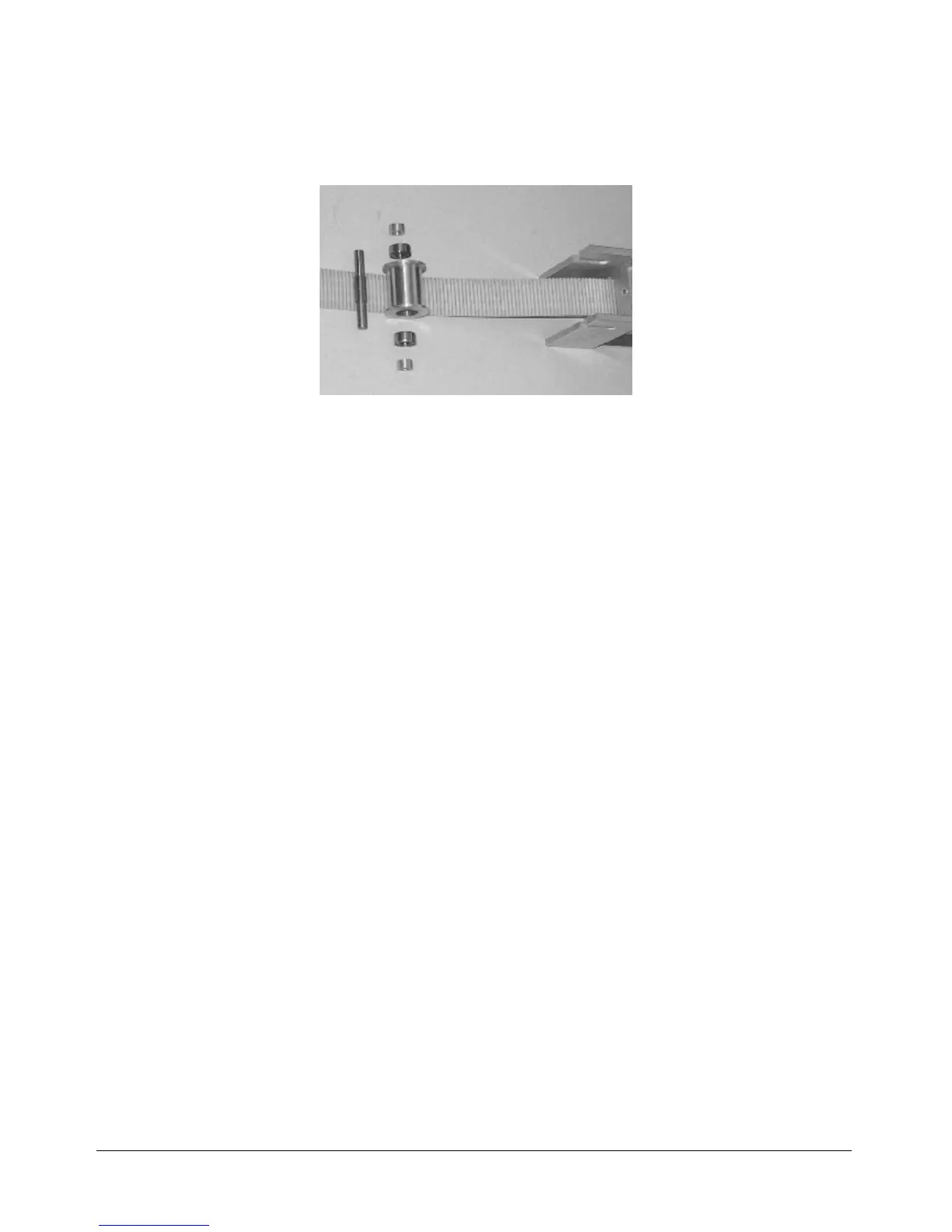

idler pulley assembly
21. Assemble all compontents in the reverse order. Tension the belts so that you
have a spring length of 11mm at the main belt tensioning bolt.
