I N D I V I D U A L M A R K I N G
How to check the ruler position
For both rulers we have a tolerance of 0.5mm to the rulers. That means that (when
you fire the test pulse) the burned spot must not hit the ruler and have a distance of
max. 0.5mm to the ruler. If the distance is bigger and not constant you have to adjust
rulers and/or X-axis.
Y ruler check

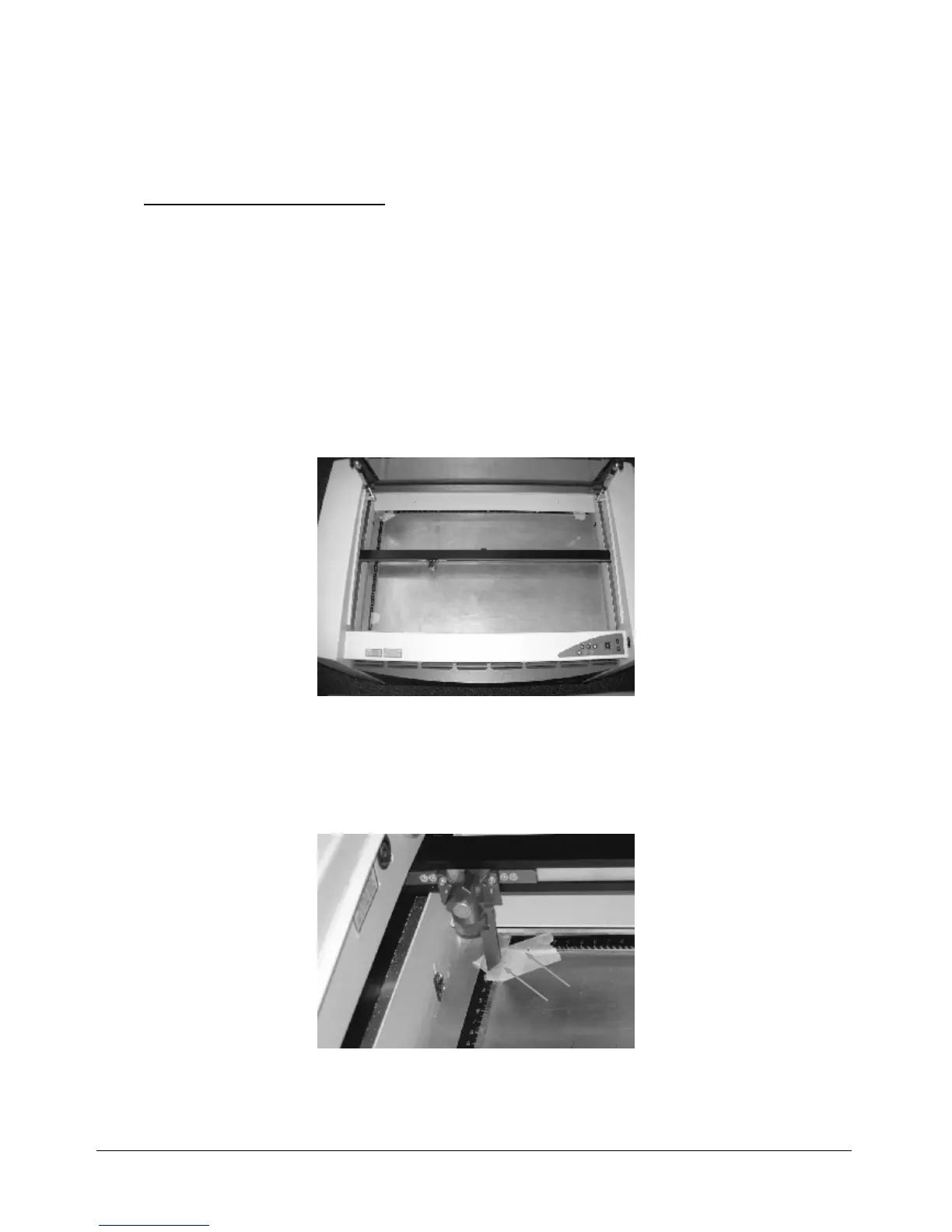

1. Glue some adhesive tape in the crosspoint and at the endpoints of the rulers.
setup for checking the ruler positions
2. Focus on the rulers
3. Move the engraving head to 0/10 (Engraver>Move laser, X=0, Y=10)
4. Fire the test pulse into the paper until you see a small spot (press test, keep it
pressed then press service)
testing the ruler positions
5. Move the engraving head to the lower end.
