12. Servicing the Y axis right part
The right part of the Y axis is a unique construction that you will find only in Trotec
machines. This construction makes sure that all three bearings are in contact with
the guide rail at any time. To reach that we use one spring loaded bearing which
presses against the rail.
The Y axis right part contains a Y axis bearing assembly and our well tried system of
belt tensioning.
Steps for servicing the Y-axis:
15. Take the X-axis out of the machine (please refer to the chapter: Servicing the
X axis)
16. Open the drive shaft connector
17. Take the right Y-axis out of the machine

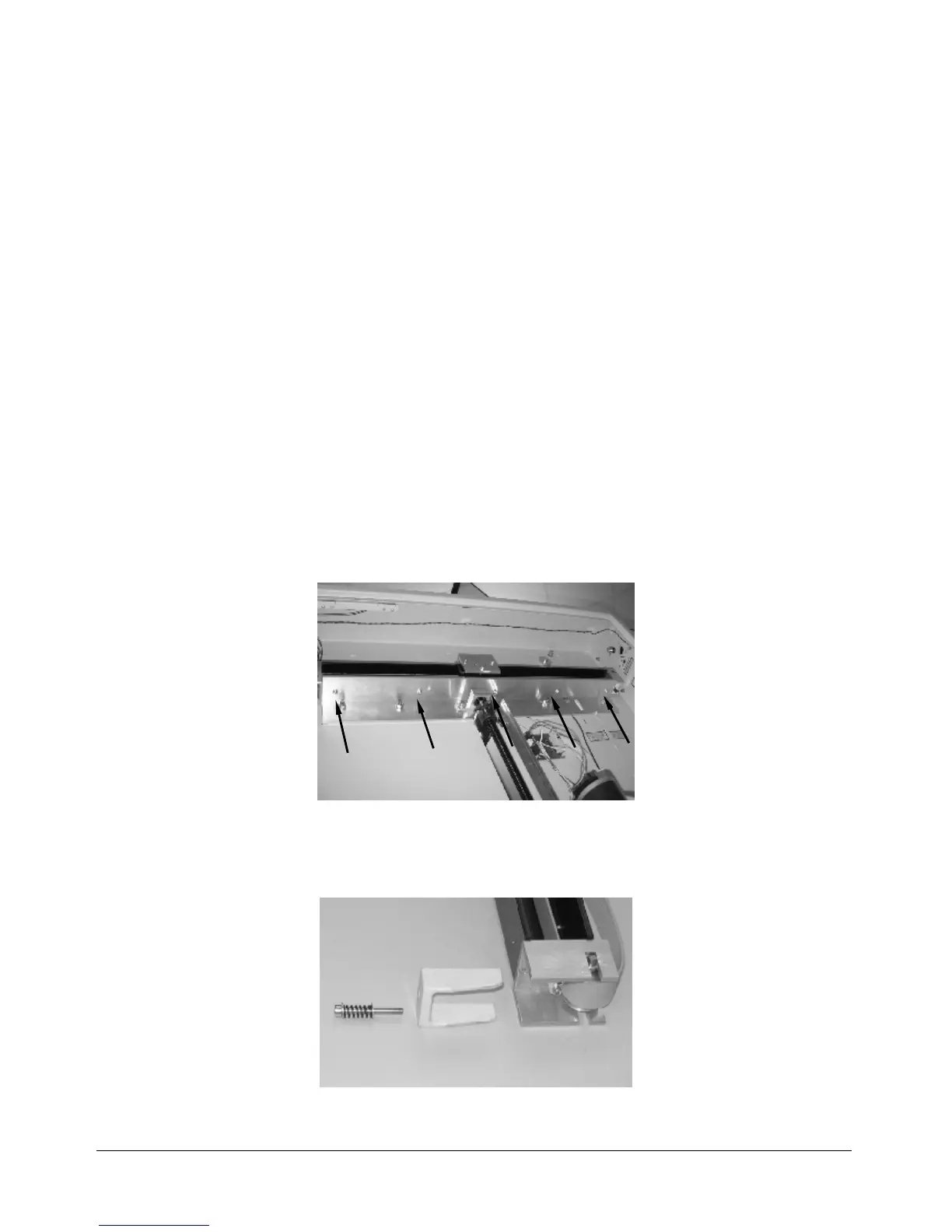

- There are five screws that fix it from the lower side to the aluminium profile
fixing screws of the Y-axis
18. Release the main belt
- Remove the tensioning bolt and tensioning wedge
tensioning elements
