NORMAL.DOT Gespeichert in:G:\Support\Dokumentationen_CDs\8003Speedy\Service Manual\Servicemanual 8003.doc Gespeichert am:2003/03/10
max Version 14
Seite 59 von 87
I N D I V I D U A L M A R K I N G S Y S

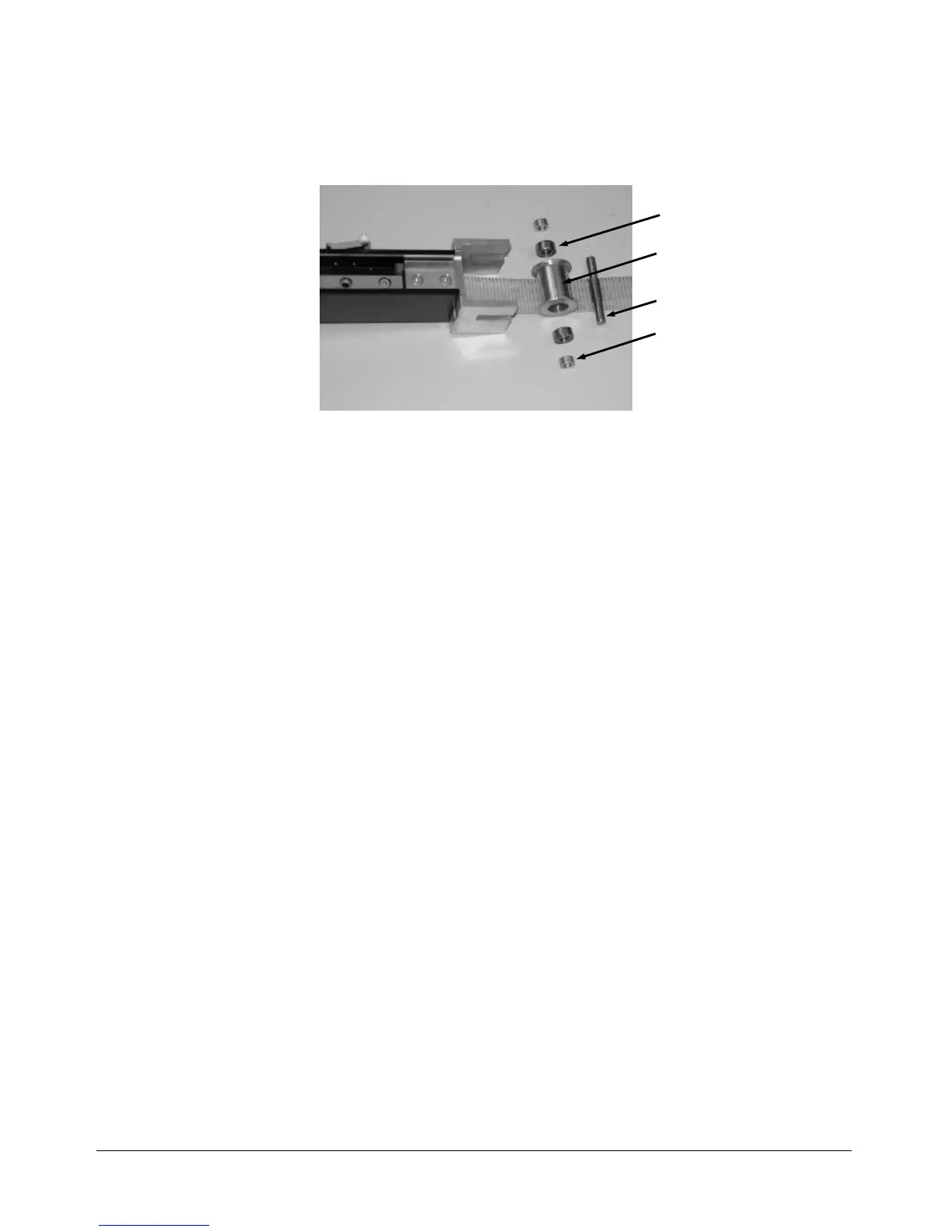

idler pulley
14. Assemble all components in the reverse order. Tension the belts so that you
have a spring length of 11mm at the main belt tensioning bolt and 13mm for
the motor belt tensioning bolt.
After a very long time of use also the THK guides must be replaced. This is done
between step 5 and 6:
- Remove the mirror unit no.two, bearing holder and carriage stopper.
- Remove all screws that fix the THK and slide it to the back
- Replace it and assemble the components in the reverse order
Please refer to „servicing the X axis“
ball bearing
