Troxler 3440 - Page 174

Appendix F–18
Table F–1. 3440 Gauge Assembly Parts

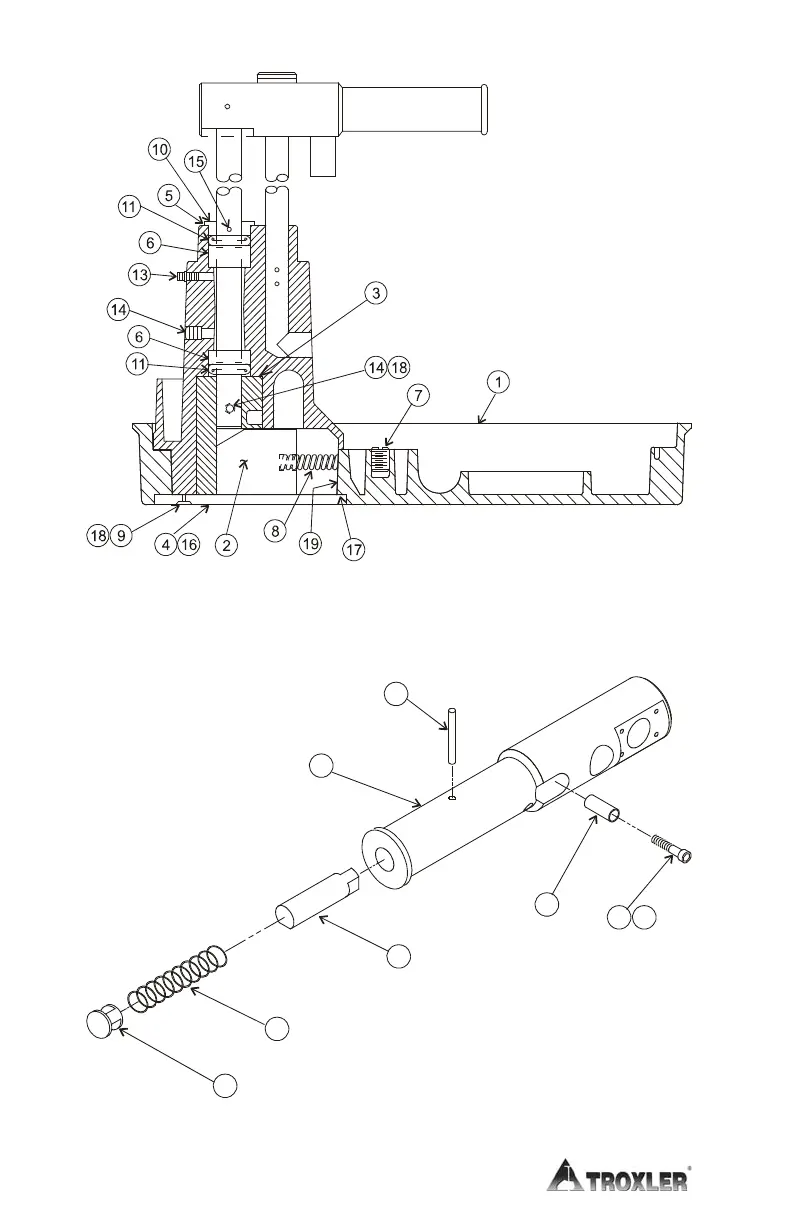

Match the reference number (Ref #) with the correct part in Figure F–3 on
the two previous pages.
Ref #
Part Number
Description
Qty
1 000212.4201
Screw, 4-40 × 3/4 S.H.C. SS
4
3 000408.1431
Screw, #8 × 1/2 PH Phil SS Type B
3
4 104149 3440 Battery Assembly 2
5 100528.2000 Screw, Captive 2
6 108330 3440/3430 Preamp Assembly 1
7 102070 3400 Heat Shield 2
8 102071 End Protector 2
9 102074 3400 Filter 1
11 107413 Lead Disk
1
12 106368 Gasket, Top Cover 1
14 107415 Radiation Label
1
16 000025.1026 Bushing, #10 x 0.250D x 0.187L Nylon
2
17 000001.0601 Washer, #6 Internal Lock SS 4
18 000610.1430 Screw, 10 x 5/8 PH Phil Type E
2
20 100989 Gasket - Molded for Base Post
1
21
106068
Topshell, 3440/3440
1
22 108329 3440 Nameplate 1
23 104122 Radiation Label
1
24 000900.0621 Screw, #4 (.114 Dia.) x 3/16" Drive 8
26 000310.4891 Screw, 6-32 x 5/8 SHCS w/ Insert
4
27 101603.1010 Roll Pin, 3/32 Dia. x 5/8 L
1
29 108335 3440 Front Panel Assembly
1
30 104130 Plunger Block
1
31 104106.1200 Depth Indicating Strip, 12-inch 1
104106.0800
Depth Indicating Strip, 8-inch
1
