Model 5850v2 4–3
4. CALIBRATION
ANGLE VERIFICATION
The operator-selected internal angle of gyration is displayed on the
Machine Idle screen as well as during gyration. This angle can be
easily verified using an internal angle device, such as the Dynamic
Angle Verification (DAV) device available from Troxler (part
number 108706).
To verify the internal angle, follow the instructions in Chapter 3 to:
1
1
.
.
Set the operation mode to number of gyrations.
2
2
.
.
Set the number of gyrations to 20.
3
3
.
.
Set the compaction pressure to 600 kPa.
4
4
.
.
Set the gyration angle to 1.16.
NOTE
To ensure the accuracy of internal angle measurements,
the probes of the internal angle device must be aligned
with the edge of the mold pull as shown below.

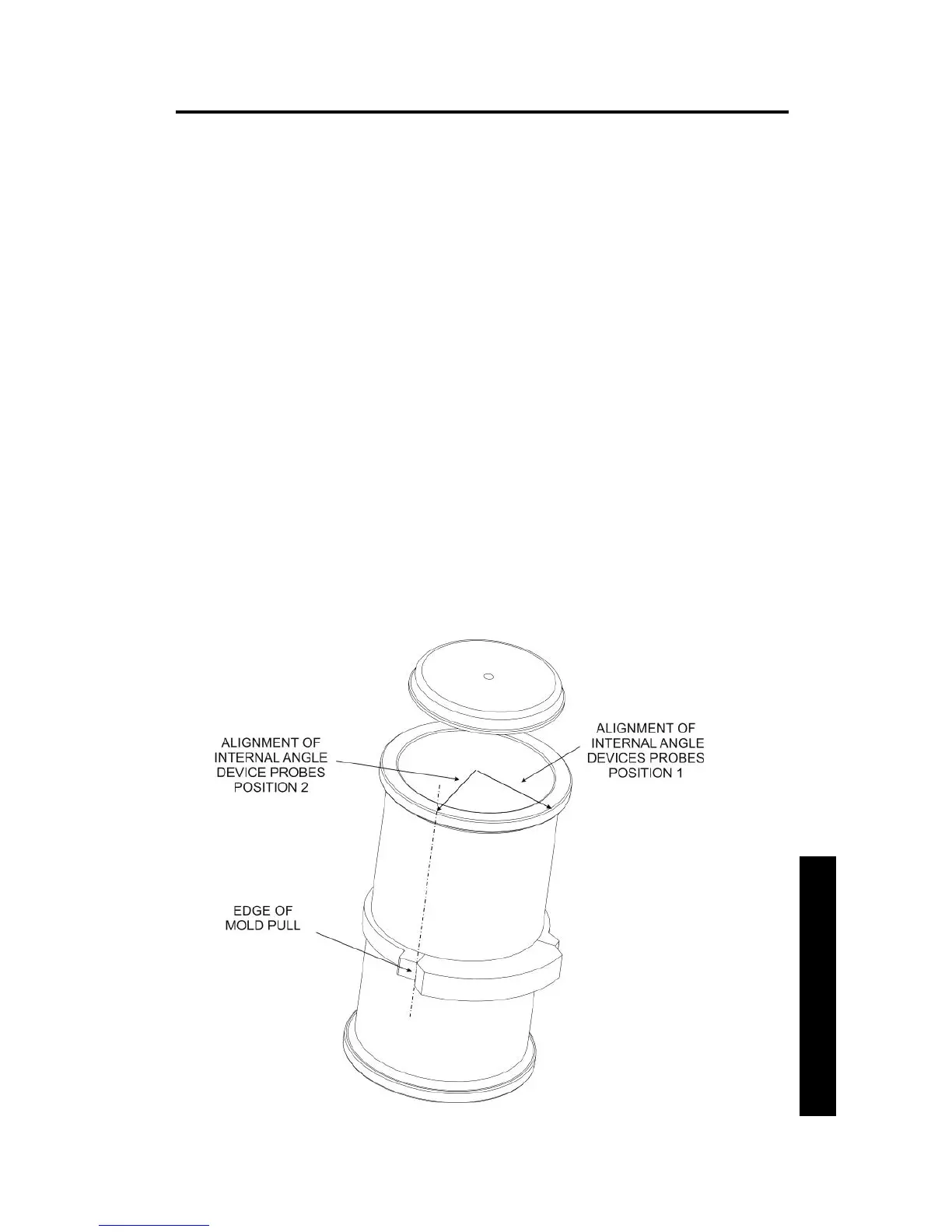

Figure 4–1. Aligning the Internal Angle Device Probes
