Tru-Test SRS2 Service Manual

XRS2 and SRS2 EID Stick Reader
Issue 5, 03/2018
36
Replacing the antenna assembly
1 Open the case. See page 30.
2 Carefully lift the antenna assembly off the main module. Ensure that the antenna wires are not pulled
tightly.
3 Unsolder the two antenna wires.

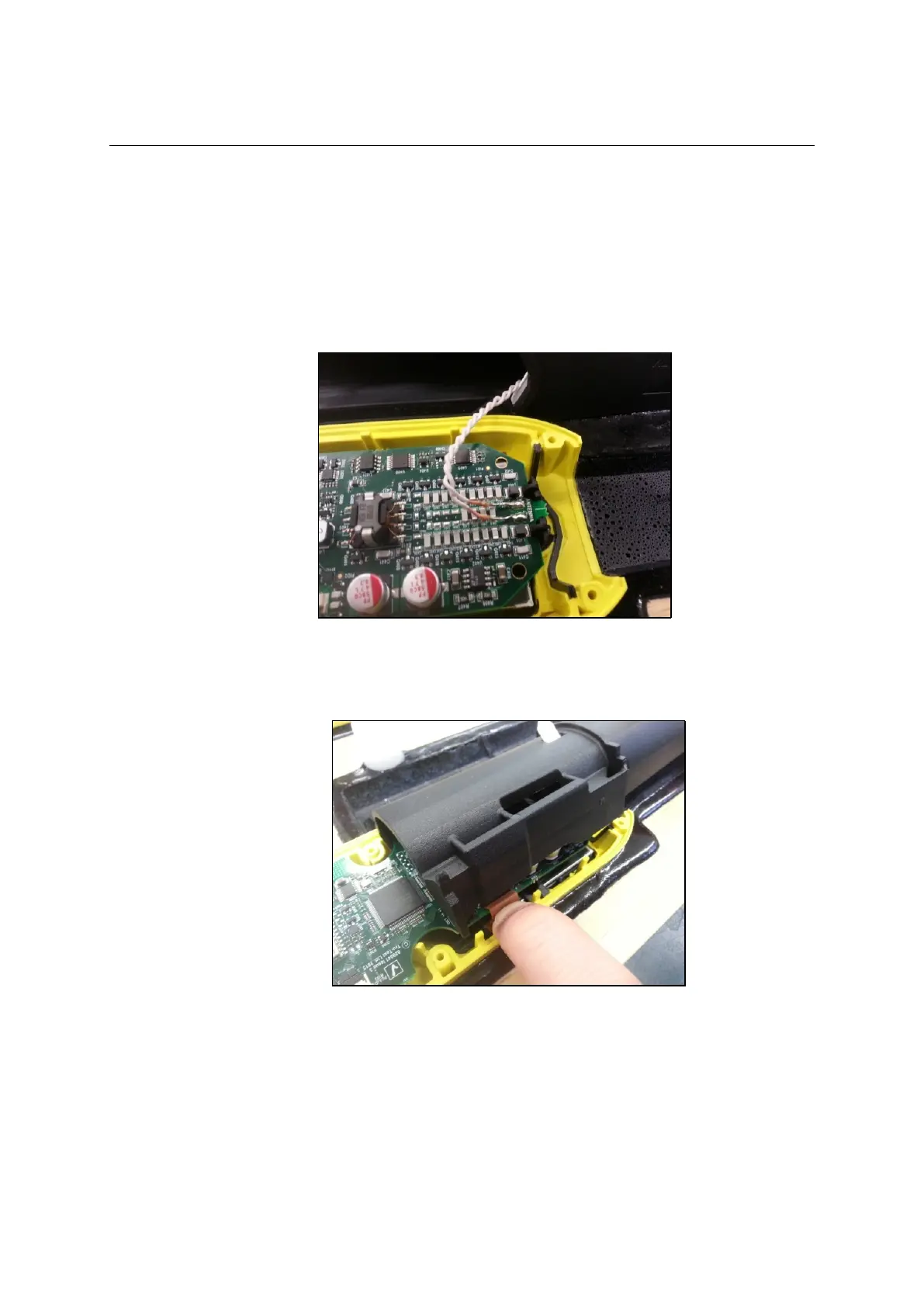

The antenna assembly wires to be unsoldered:
4 S
older new antenna assembly wires to the PCB. The wire to pad order does not matter.
5 Refit the antenna assembly, ensuring the display FFC is tucked in.
6 Close the case. See page 31.
